CHAPTER 7 PICK-UP / FEEDING SYSTEM
B. Arrangement of Rollers and Sensors
1. CLC1150
[1]
PS31
[23]
[1] External delivery roller
[2] Internal delivery roller
[3] Postcard feed roller
[4] Registration roller
[5] Attraction roller
[6] Pre-registration roller 1
[7] Duplexing reversing roller
[8] Pre-registration roller 2
[9] Manual feed pull-off roller
[10] Multifeeder pickup roller
[11] Pickup vertical path roller 1, 2, 3
[12] Cassette 1/2 separation roller
7-2
COPYRIGHT © 1999 CANON INC.
[3]
[2]
PS12
PS7
PS32
PS5
PS33
PS37
[21] [20]
[22] [19]

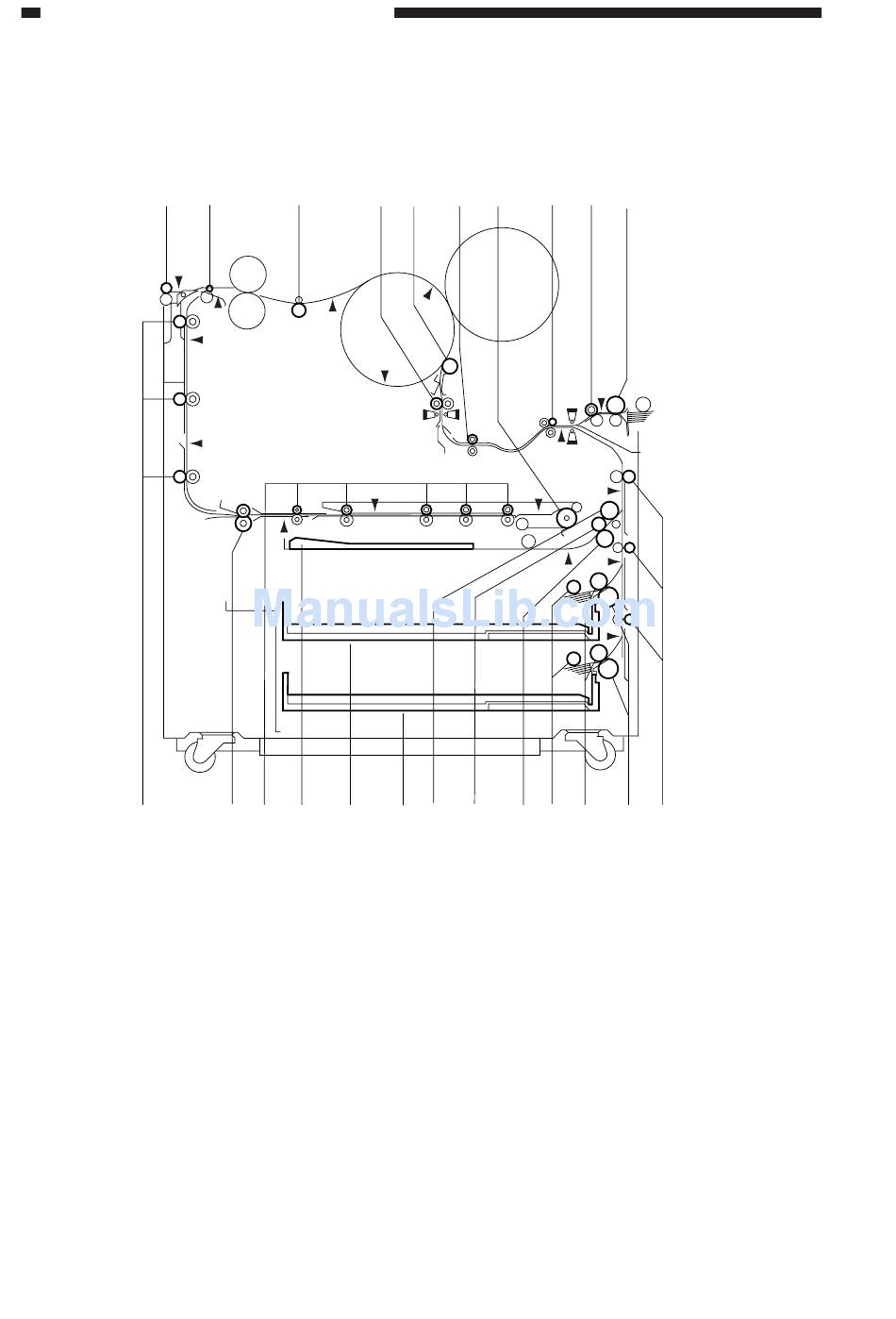

Figure 7-101a
[4] [5] [6] [7]
PS6
PS70
PS30
PS35
PS34
PS36
[14]
[18] [16] [15]
[17]
[13] Cassette 1/2 feed roller
[14] Cassette 1/2 pickup roller
[15] Duplexing separation roller
[16] Duplexing feed roller
[17] Re-pickup feed roller
[18] Cassette 2
[19] Cassette 1
[20] Duplexing tray
[21] Duplexing feed rollers 1, 2, 3, 4, 5
[22] Duplexing inlet roller
[23] Delivery vertical path 1/2/3 roller
