CHAPTER 6 IMAGE FORMATION SYSTEM

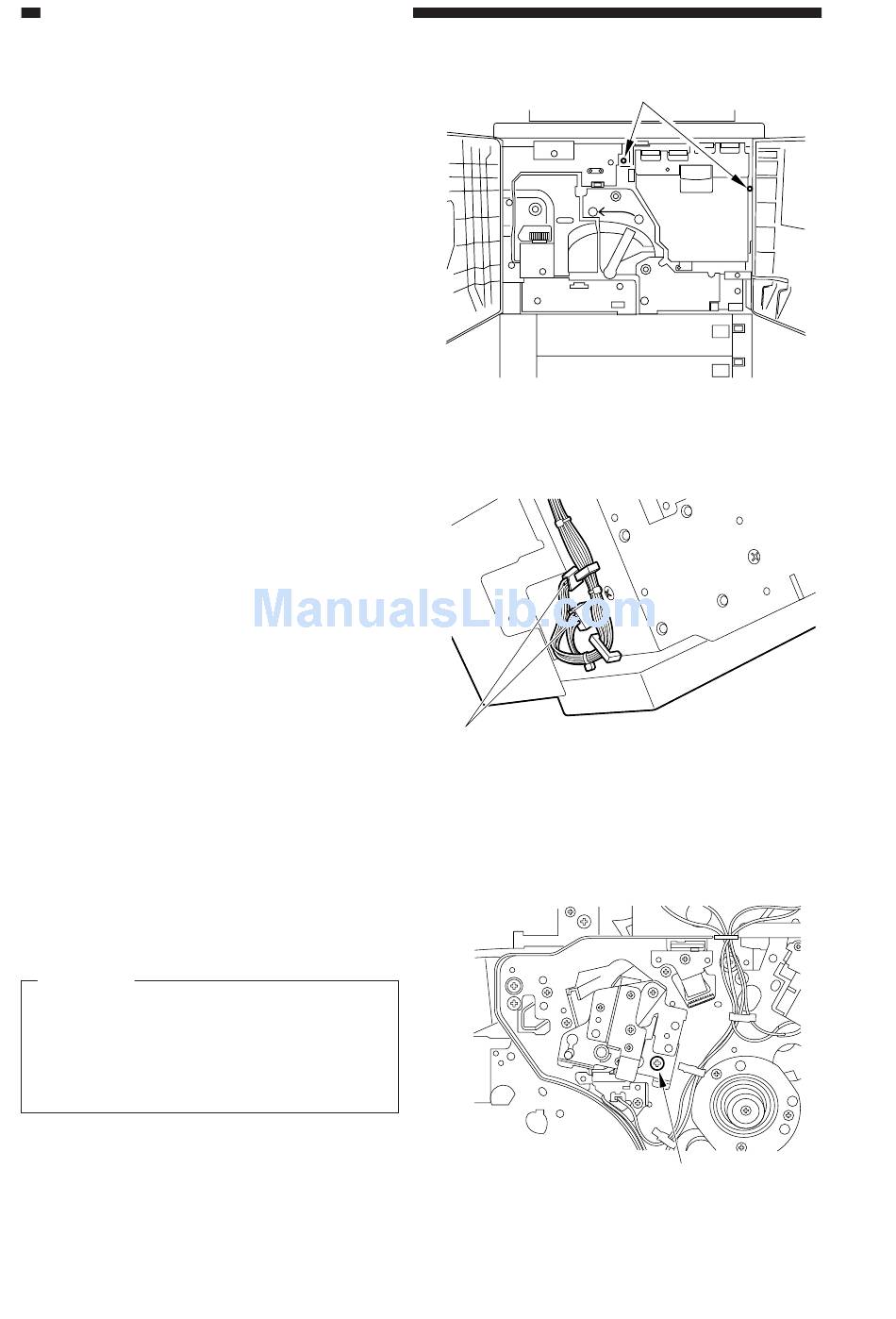

E. Hoppe Assembly

1. Opening the Hopper

1) Open the front cover.
2) Remove the two screws [1], and detach
the hopper stopper plate; then, open the
hopper fully.

2. Removing the Hopper Unit

1) Open the hopper.
2) Disconnect the two connectors [1] from
the bottom of the hopper unit, and remove
the wire saddle.
3) Hold the hopper unit as shown, and lift it.
Caution:
If you are replacing the developer at the
same time as replacing the hopper unit
with a new one, be sure to perform the
work in II.F. "Supplying Starter" of
Chapter 11.
6-74
COPYRIGHT © 1999 CANON INC.
[1]
CANON CLC1120/1130/1150 REV.0 MAR. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON)
[1]
Figure 6-653
Figure 6-654
[3]
Figure 6-655
