B. Locking and Unlocking the Registration Roller
When copy paper from the registration roller is put on the transfer drum sheet, the registration
roller releasing solenoid (SL5) turns on, causing the registration locking cam to rotate and, at the
same time, releasing the registration link roller from the registration roller by the drive of the main
motor (M4).
Transfer drum
Registration roller
COPYRIGHT © 1999 CANON INC.
Attraction roller
Registration link roller
Spring clutch

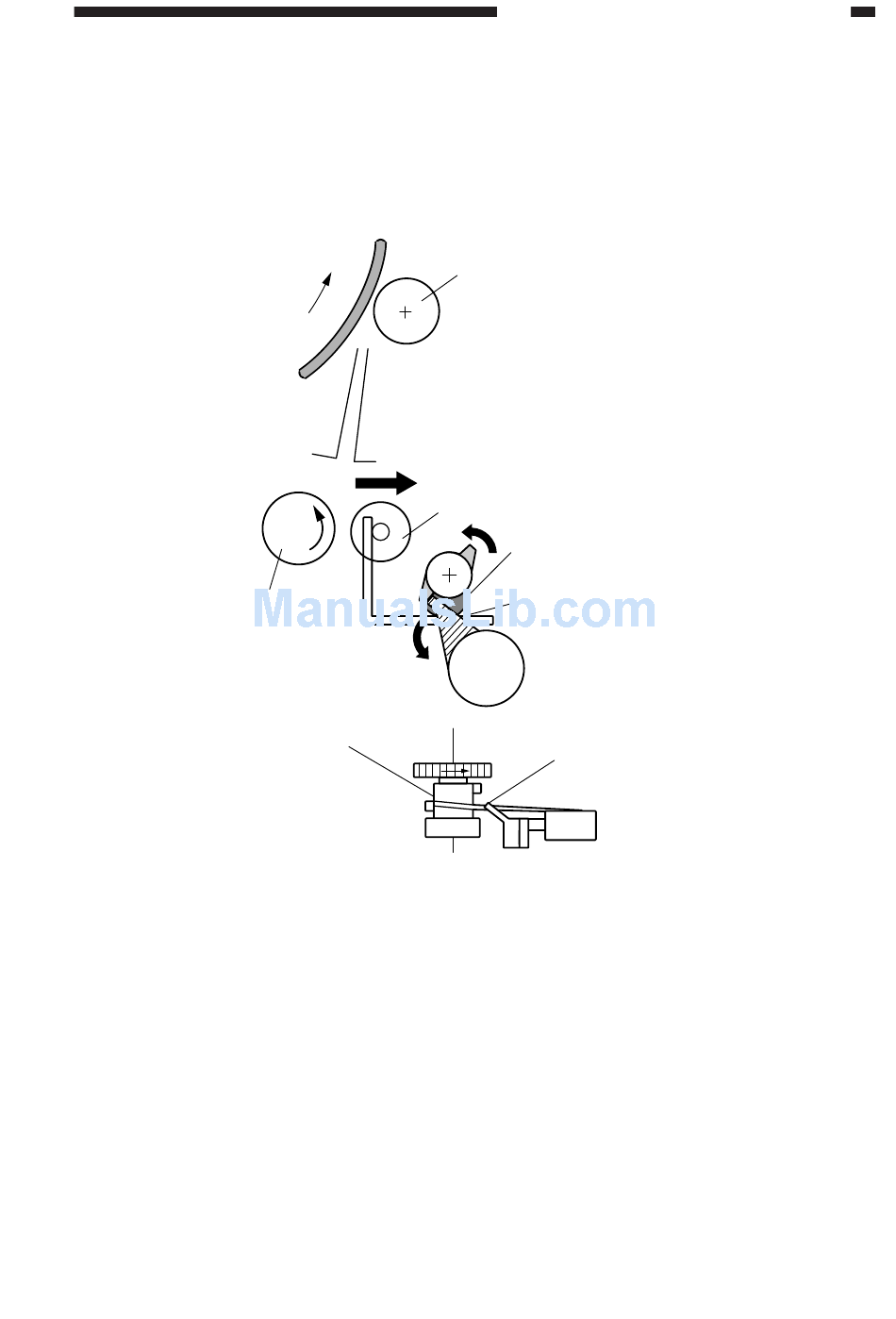

Figure 7-402
CANON CLC1120/1130/1150 REV.0 MAR. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON)
CHAPTER 7 PICK-UP / FEEDING SYSTEM
Cam
Arm
SL5
Arm
Registration roller
SL5
releasing solenoid
ON
