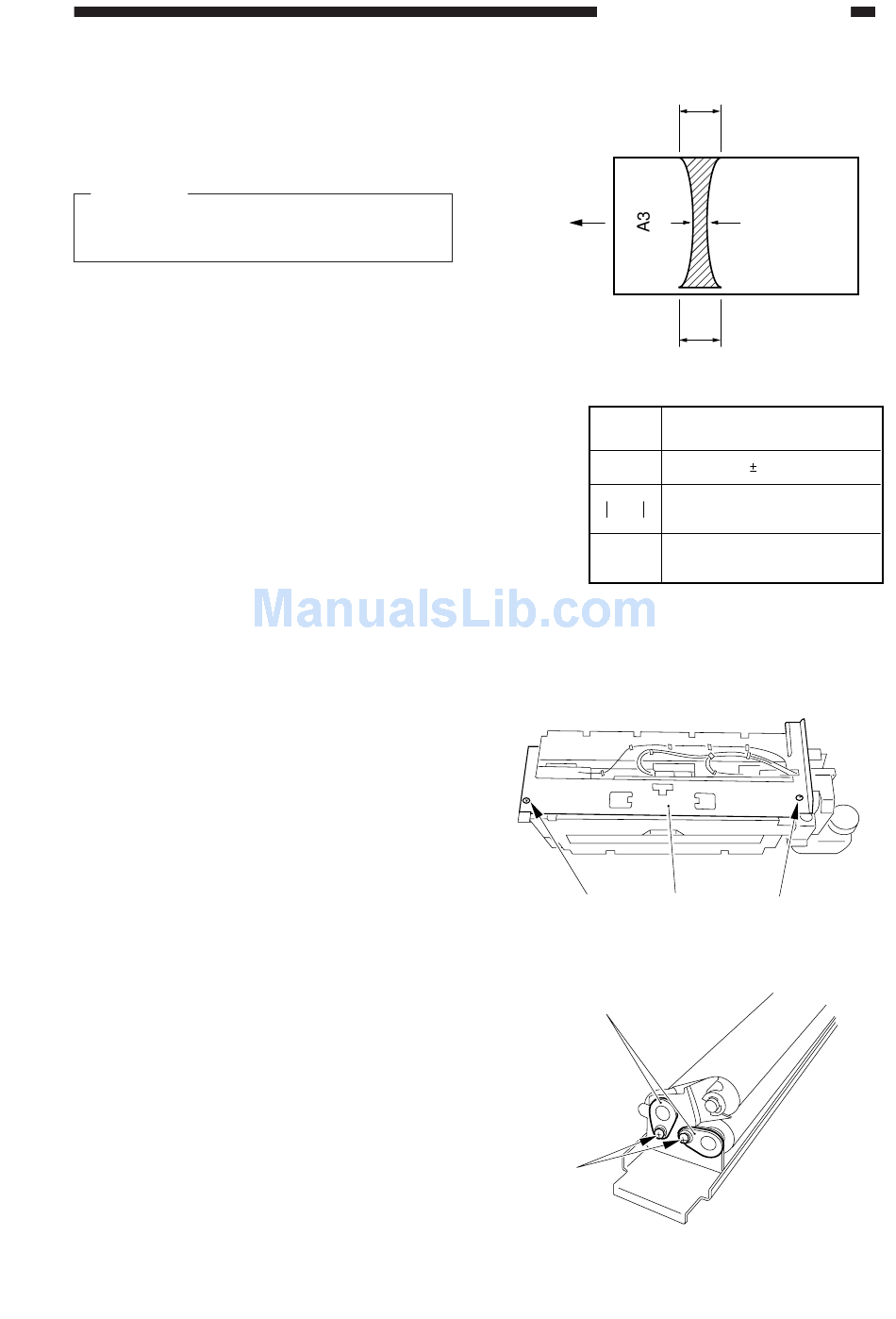

Fixing Cleaner Assembly; Removing The Fixing Upper; Cleaning Belt - Canon CLC 1120 Service Manual

· The nip width is correct if as indicated
in the table. Otherwise, turn the
adjusting nut [1] to make adjustments.
Caution:
b and c are points 10 to 15 mm from the
edges of paper.
B. Fixing Cleaner Assembly

1. Removing the Fixing Upper

Cleaning Belt

1) Open the front cover.
2) Remove the fixing cover.
3) Slide out the transfer drum frame.
4) Remove the two screws, and detach the
fixing upper cover.
5) Remove the two screws [1], and detach
the fixing upper cleaner assembly [2].
6) Remove the two screws [3], and remove
the two bushings [4]; then, detach the
fixing upper cleaning belt.
COPYRIGHT © 1999 CANON INC. CANON CLC1120/1130/1150 REV.0 MAR. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON)
CHAPTER 8 FIXING SYSTEM
(feeding direction)
Dimen-
sion
a
b-c
b-a
c-a
*Make sure both upper and lower rollers
are adequately heated.
Table 8-421
[1]
Figure 8-422
[4]
[3]
Figure 8-423
b
Center of
a
paper
c
Standard*
7.3 0.5 mm
0.5 mm or less
0.5 mm or less
[2] [1]
8-21
