CHAPTER 13 TROUBLESHOOTING
PS41 Right front cover sensor
PS42 Left front cover sensor
PS43 Delivery cover sensor
PS44 Pickup cover sensor
PS46 Cassette 1 open/closed sensor
PS47 Cassette 2 open/closed sensor
PS48 Cassette 3 open/closed sensor
(CLC1130 only)
PS49 M developing assembly HP sensor
PS51 C developing assembly HP sensor
PS53 Y developing assembly HP sensor
PS55 Bk developing assembly HP sensor
PS57 Transfer drum HP sensor
PS59 Transfer drum cleaner HP sensor
PS62 Multifeeder tray open/closes
sensor
PS67 Fixing lower cleaning belt length
sensor
PS68L/S Waste toner case full sensor
PS69L/S Transparency sensor
PS70L/S Registration sensor
PS71 Pre-cleaning paper sensor
PSU2 Cassette 2 paper length sensor
(CLC1120 only)
PSU3 Cassette 3 paper length sensor
(CLC1130 only)
VR2 Cassette 1 paper level detecting
VR
VR3 Cassette 2 paper width detecting
VR (CLC1120 only)
VR4 Cassette 2 paper level detecting
VR
VR5 Cassette 3 paper width detecting
VR (CLC1130 only)
VR6 Cassette 3 paper level detecting
VR (CLC1130 only)
VR7 Multifeeder paper width detecting
VR
TS1 M toner level sensor
TS2 C toner level sensor
TS3 Y toner level sensor
TS4 Bk toner level sensor
UN10 Environment sensor

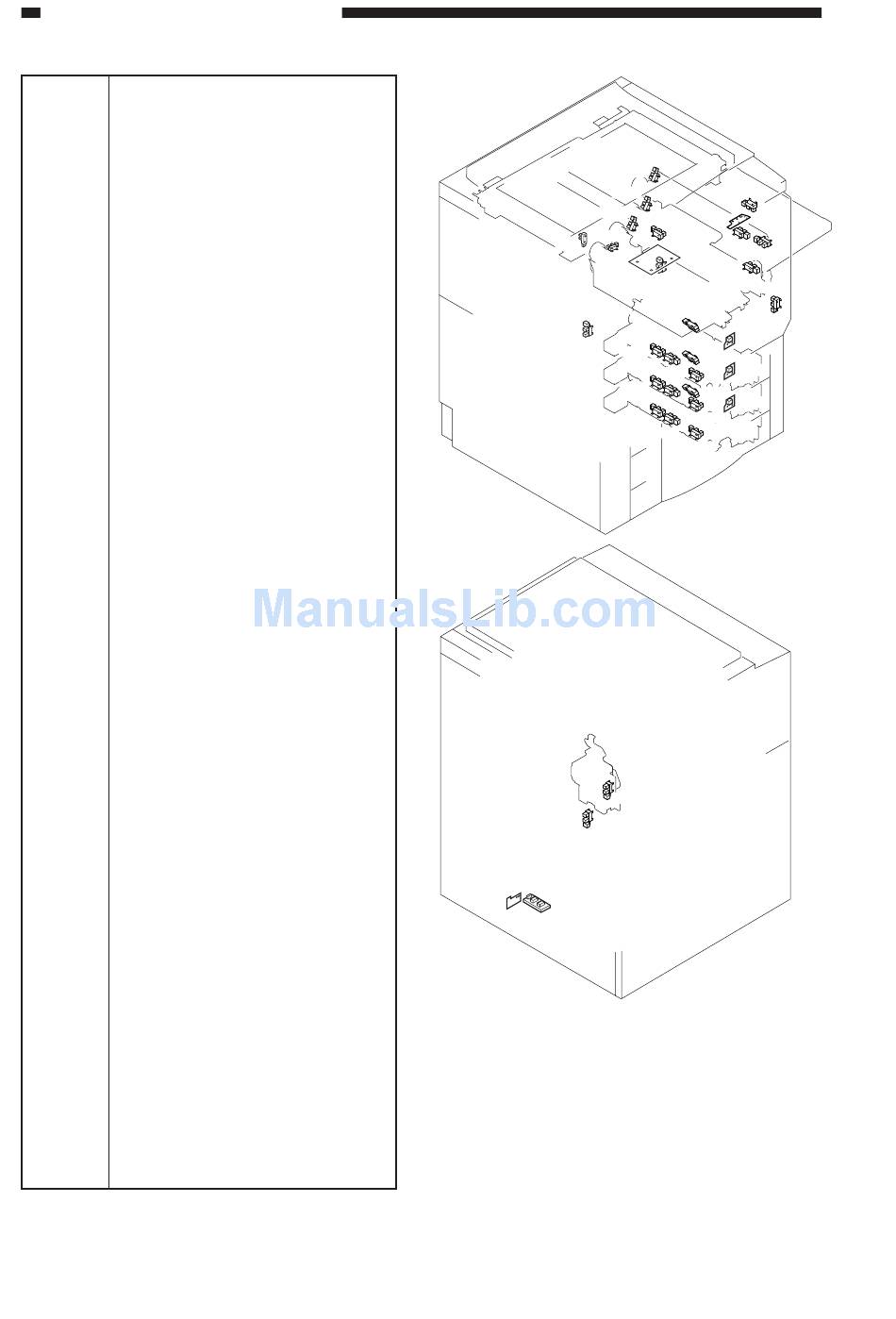

Table 13-601b (CLC1120/1130)
13-162
COPYRIGHT © 1999 CANON INC.
VR5
Table 13-601b (CLC1120/1130)
CANON CLC1120/1130/1150 REV.0 MAR. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON)
PS53
PS51
PS49
VR7
PS18
PS55
PS1
PS9
UN10
PS17
PS42
PS43
PS21
PS26
PS19
PS20
PS46
PS22
PS27
PS24
PS47
PS23
PS25
PS48
PS59
PS57
PSU3
PS15
PS62
PS44
VR2
VR4
VR6
