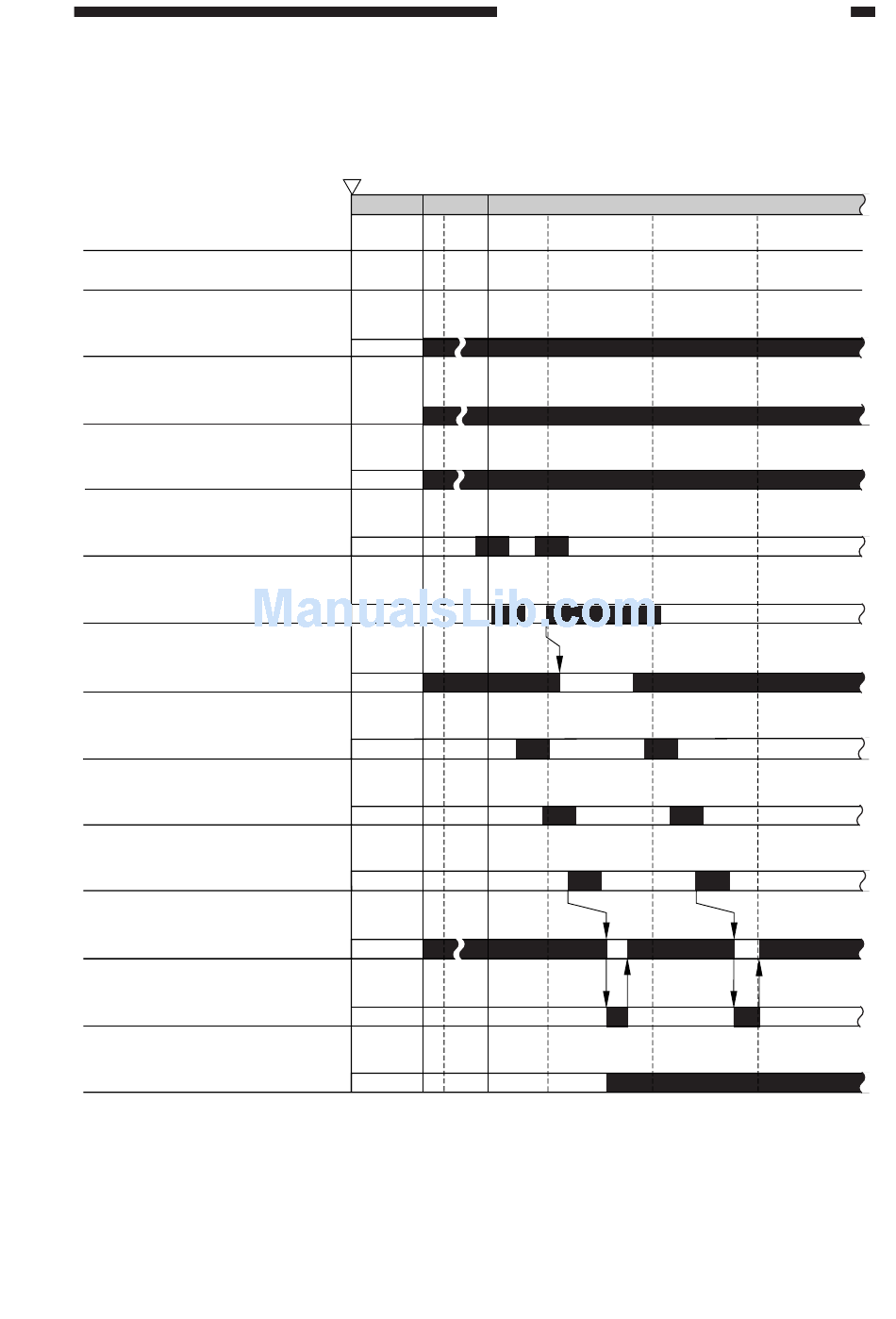

D. Sequence of Operations (1st side of a double-sided copy)
Photosensitive drum revolution
Transfer drum revolution
Main motor (M4)
Duplexing motor (M14)
Delivery paper deflecting pale
solenoid (SL10)
Delivery vertical path 1 sensor
(PS32)
Delivery vertical path 2 sensor
(PS33)
Delivery vertical path clutch
(CL19)
Duplexing inlet paper sensor
(PS37)
Duplexing path sensor (PS34)
Duplexing reversal paper sensor
(PS35)
Duplexing paper feed roller
solenoid (SL13)
Duplexing paper feed clutch
(CL14)
Duplexing tray paper sensor
(PS36)
COPYRIGHT © 1999 CANON INC.
Copy Start key ON
DSRDY INTR
Figure 7-306
CANON CLC1120/1130/1150 REV.0 MAR. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON)
CHAPTER 7 PICK-UP / FEEDING SYSTEM
COPY
1 2
1 2
3 4
3 4
7-27
