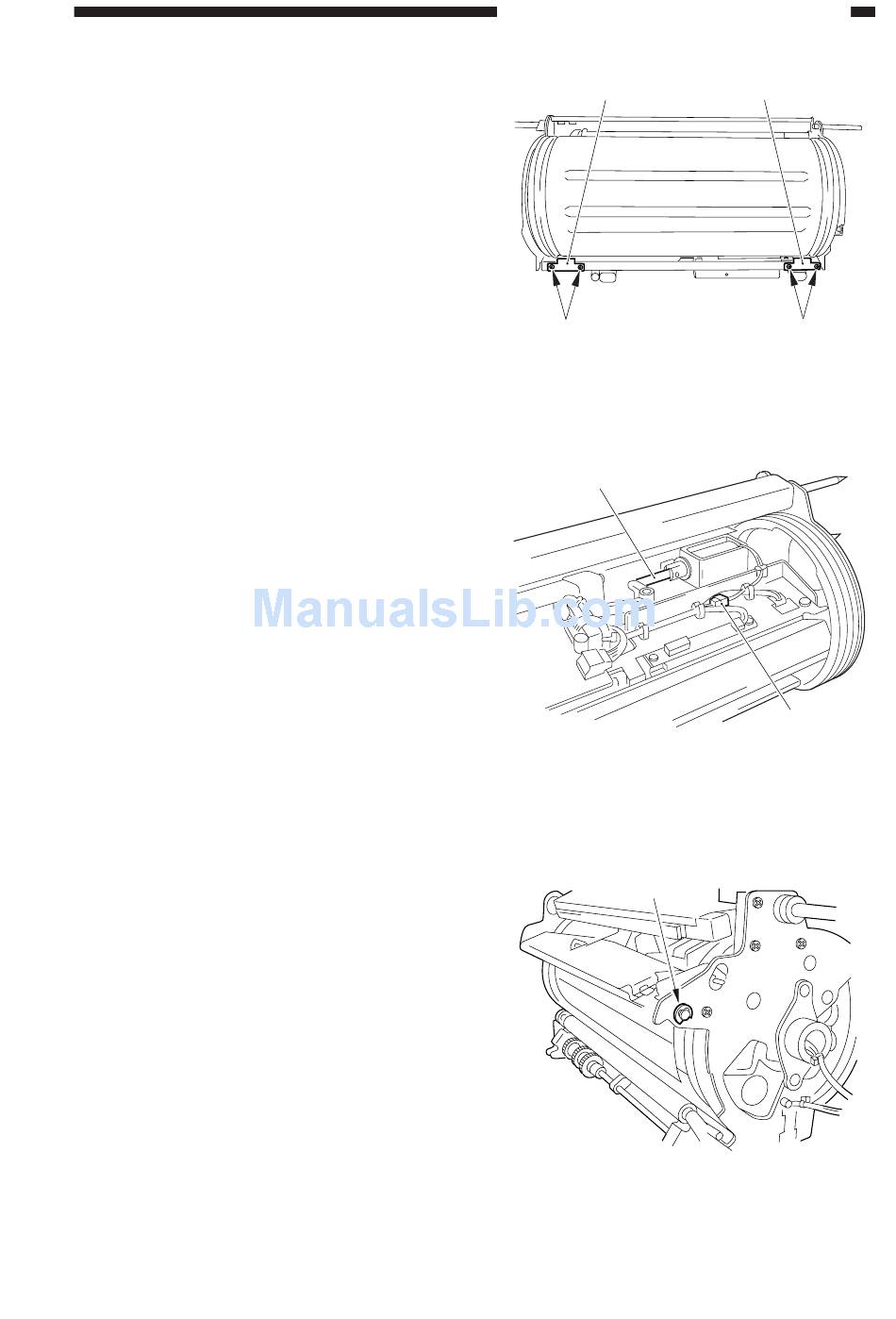

11. Removing the Separation Push-Up
Solenoid
1) Remove the transfer drum from the
transfer drum frame.
2) Remove the four screws [1], and detach
the two transfer sheet scrapers [2].
3) Peel off the transfer sheet.
4) Disconnect the connector [3], and remove
the spring [4].
5) Remove the E-ring [5] from the front side
plate of the transfer drum.
COPYRIGHT © 1999 CANON INC. CANON CLC1120/1130/1150 REV.0 MAR. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON)
CHAPTER 7 PICK-UP / FEEDING SYSTEM
[2]
[1]
Figure 7-863
[4]
Figure 7-864
[5]
Figure 7-865
[2]
[1]
[3]
7-97
