Reference:
The No. 2 blade may be used for both its
sides (side 1, side 2). Mount it so that the
number (1, 2) on the blade is visible
from the side of the photosensitive
drum.

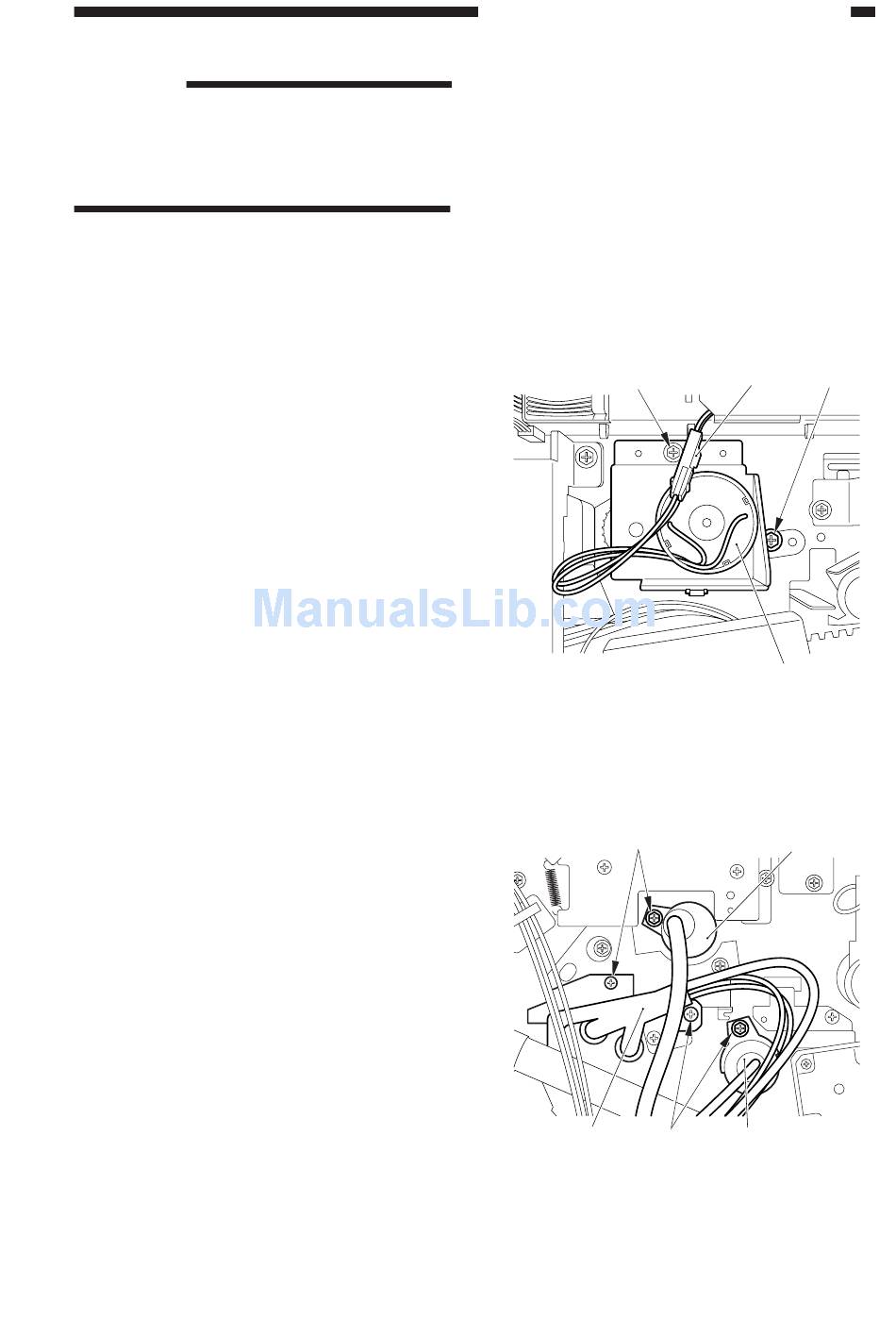

I. Cleaner Blade

Reciprocating Motor

1. Removing the Reciprocating Motor

Assembly

1) Remove the photosensitive drum cleaner
unit.
2) Remove the rear cover.
3) Remove the flywheel.
4) Disconnect the connector [1], and remove
the two screws [2]; then, detach the
reciprocating motor assembly [3].
J. Waste Toner Feeding
Assembly
1. Removing the

Feedscrew Assembly

1) Remove the rear cover.
2) Remove the flywheel.
3) Remove the drum gear.
4) Remove the four screws [1], and
disconnect the high-voltage connector [2].
5) Disconnect the high-voltage connectors
of the primary/post-cleaning charging
assembly from
transformer.
COPYRIGHT © 1999 CANON INC.
Waste Toner
the high-voltage
CANON CLC1120/1130/1150 REV.0 MAR. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON)
CHAPTER 6 IMAGE FORMATION SYSTEM
[2]
Figure 6-677
[1]
[1]
[2]
Figure 6-678
[1]
[2]
[3]
[2]
[2]
6-83
