K. Developing Drive
Assembly
1. Removing the Developing Drive
Assembly and the Developing
Assembly Rail
1) Remove all developing assemblies.
2) Remove the rear cover, right upper cover,
and right rear cover.
3) Remove the flywheel.
4) Disconnect the four connectors [1], and
remove the two screws [2]; then, detach
the potential measurement PCB.
5) Open the CPU PCB.
6) Remove the drive assembly reinforcing
plate.
7) While lifting the tension plate [3] by hand,
detach the drive belt [4].
8) Remove the two screws [6].
COPYRIGHT © 1999 CANON INC.
CANON CLC1120/1130/1150 REV.0 MAR. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON)
CHAPTER 6 IMAGE FORMATION SYSTEM

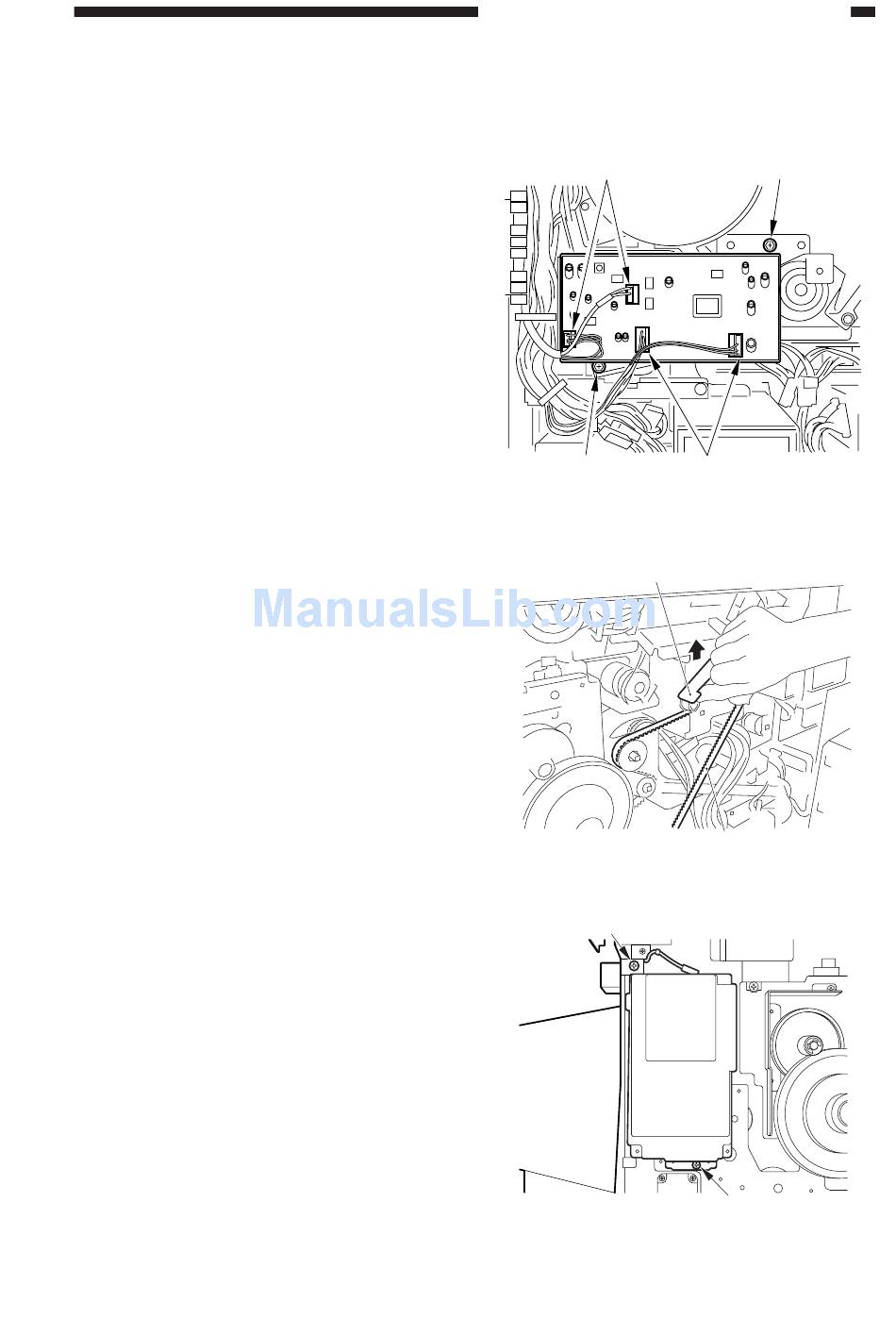

[1]
[2]
Figure 6-682
[3]
Figure 6-683
[6]
Figure 6-684
[2]
[1]
[4]
[6]
6-85
