CHAPTER 10 PAPER DECK
4. Removing the Deck Pickup/Feed
Roller
1) Remove the deck pickup unit.
2) Turn over the deck pickup unit.
3) Remove the resin ring [1], and remove the
deck pickup/feed roller [2] and the drive
belt [3] to the front.
5. Orientation of the Deck Pickup/
Feed Roller
When mounting the deck pickup/feed
roller [1], be sure that the belt pulley [2] is at
the front.
When mounting the pickup/feed roller
rubber to the pickup/feed roller shaft, be sure
that the marking [3] is at the rear.
6. Removing the Deck Separation
Roller
1) Disconnect the deck from the copier, and
remove the two screws [1]; then, detach
the separation roller support plate [2].
10-36
COPYRIGHT © 1999 CANON INC. CANON CLC1120/1130/1150 REV.0 MAR. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON)

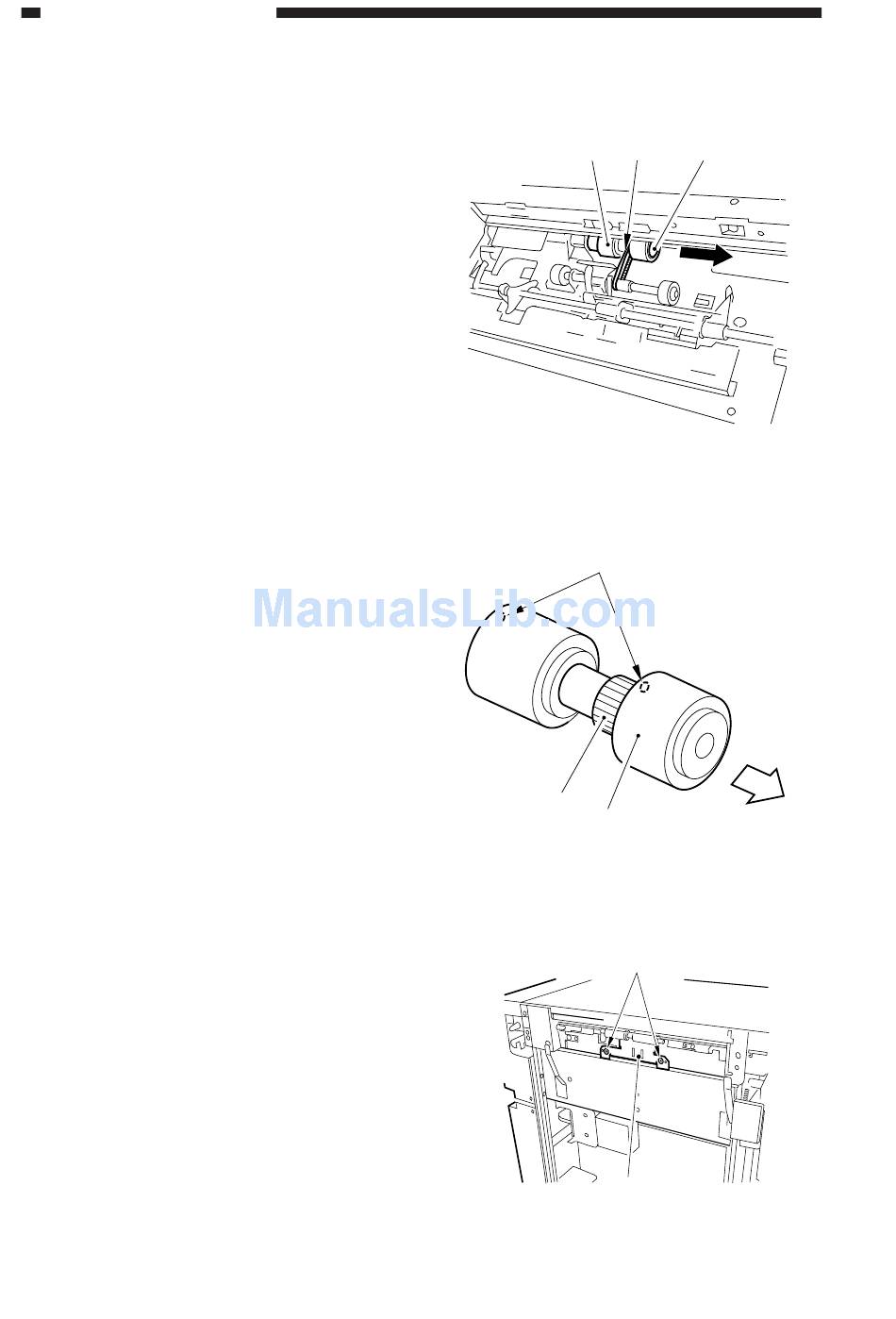

[2] [3] [1]
