CHAPTER 3 EXPOSURE SYSTEM

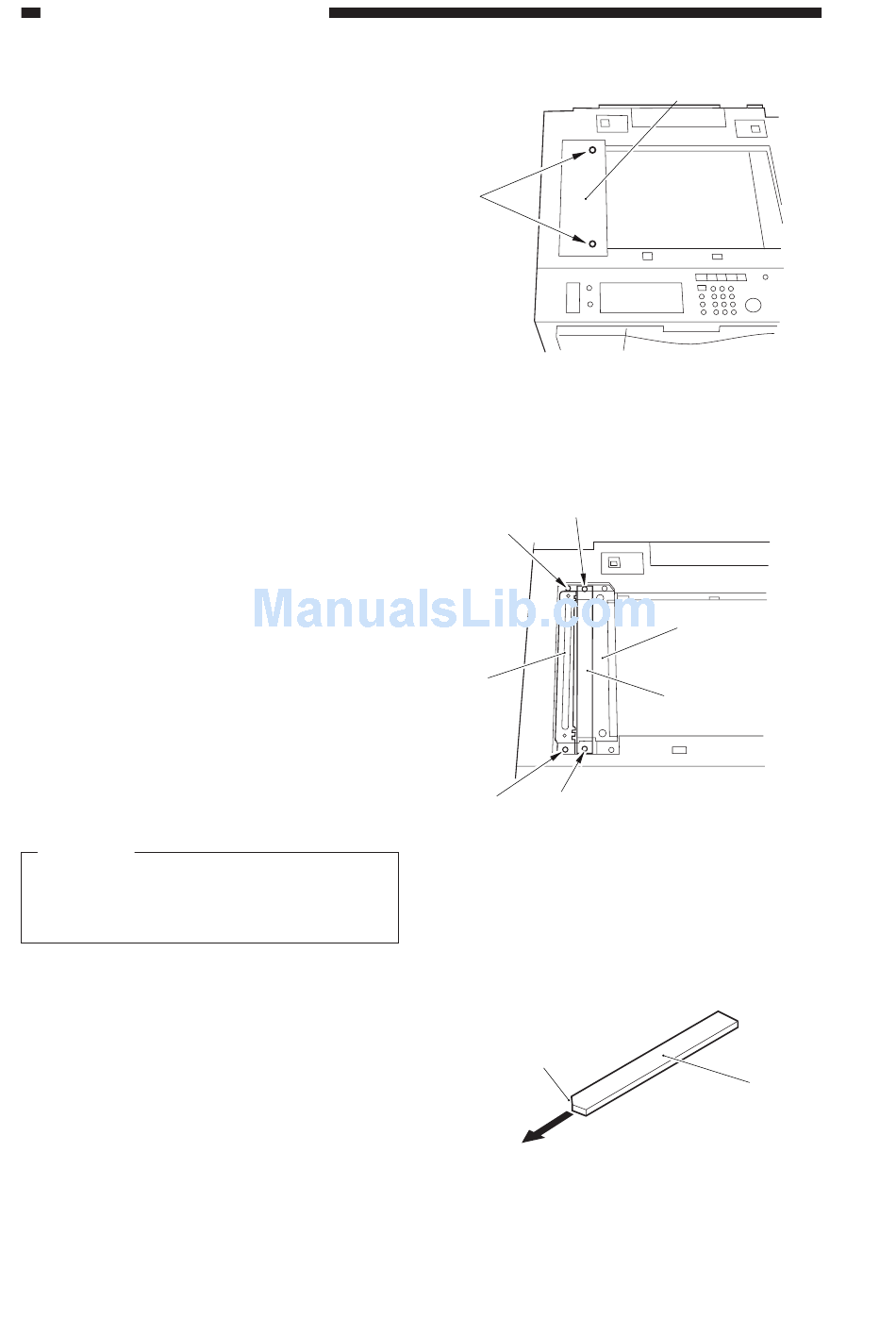

3. Removing the Standard White Plate

1) Remove the vertical size plate.
2) Remove the copyboard glass.
3) Remove the two screws [1], and detach
the standard white plate cover [2].
4) Remove the two screws [3], and detach
the left stay [4].
5) Remove the two screws [5], and detach
the standard white plate [6].
Caution:
Mount the standard white plate [a] as
shown, i.e., its cut-off [b] is toward the
front [c].

4. Mounting the Standard White Plate

1) Place the standard white plate [6] by
butting it against the right stay [7].
2) Secure the left stay [4] in place with two
screws [3] as if to butt it against the
standard white plate [6].
3) Secure the standard white plate [6] in
place with two screws [5].
3-10
COPYRIGHT © 1999 CANON INC.
[1]
[3]
[4]
[3]
[b]
[c]
CANON CLC1120/1130/1150 REV.0 MAR. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON)
[2]
Figure 3-404
[5]
[7]
[6]
[5]
Figure 3-405
Figure 3-406
[a]
