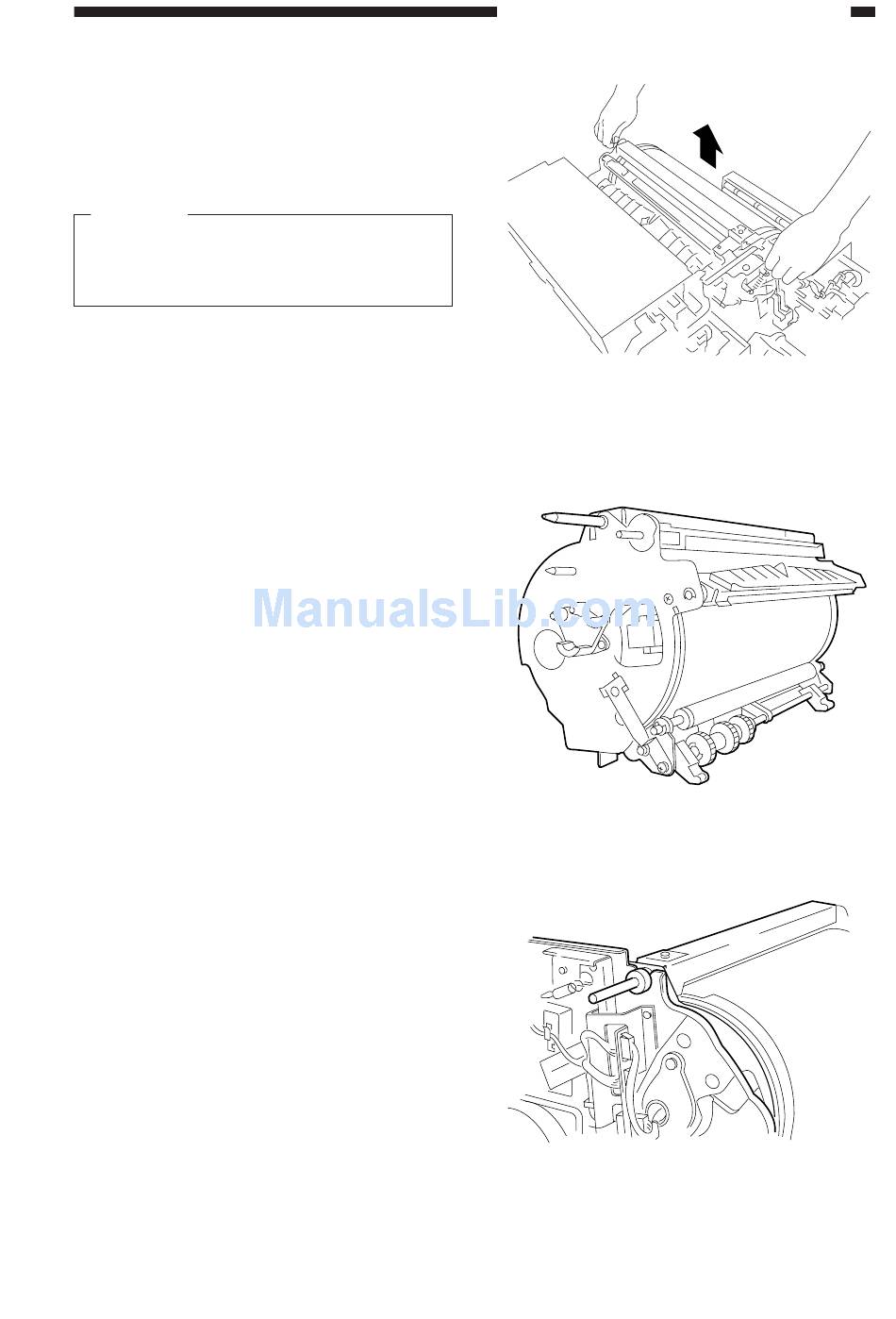

3) Holding the rear of the transfer drum by
your right hand, grasp the handle of the
transfer drum with your left hand, and lift
it.
Caution:
Take care not to let the attraction roller
come into contact with the transfer drum
sheet.
4) Place the transfer drum assembly as
shown.
2. Points to Note When Handling the
Transfer Drum
After placing the transfer drum on the
transfer drum frame, check to make sure that it
is as shown.
COPYRIGHT © 1999 CANON INC. CANON CLC1120/1130/1150 REV.0 MAR. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON)
CHAPTER 7 PICK-UP / FEEDING SYSTEM
Figure 7-803
Figure 7-804
Correct
Figure 7-805
7-75
