CHAPTER 13 TROUBLESHOOTING
5) Slide out the transfer frame.

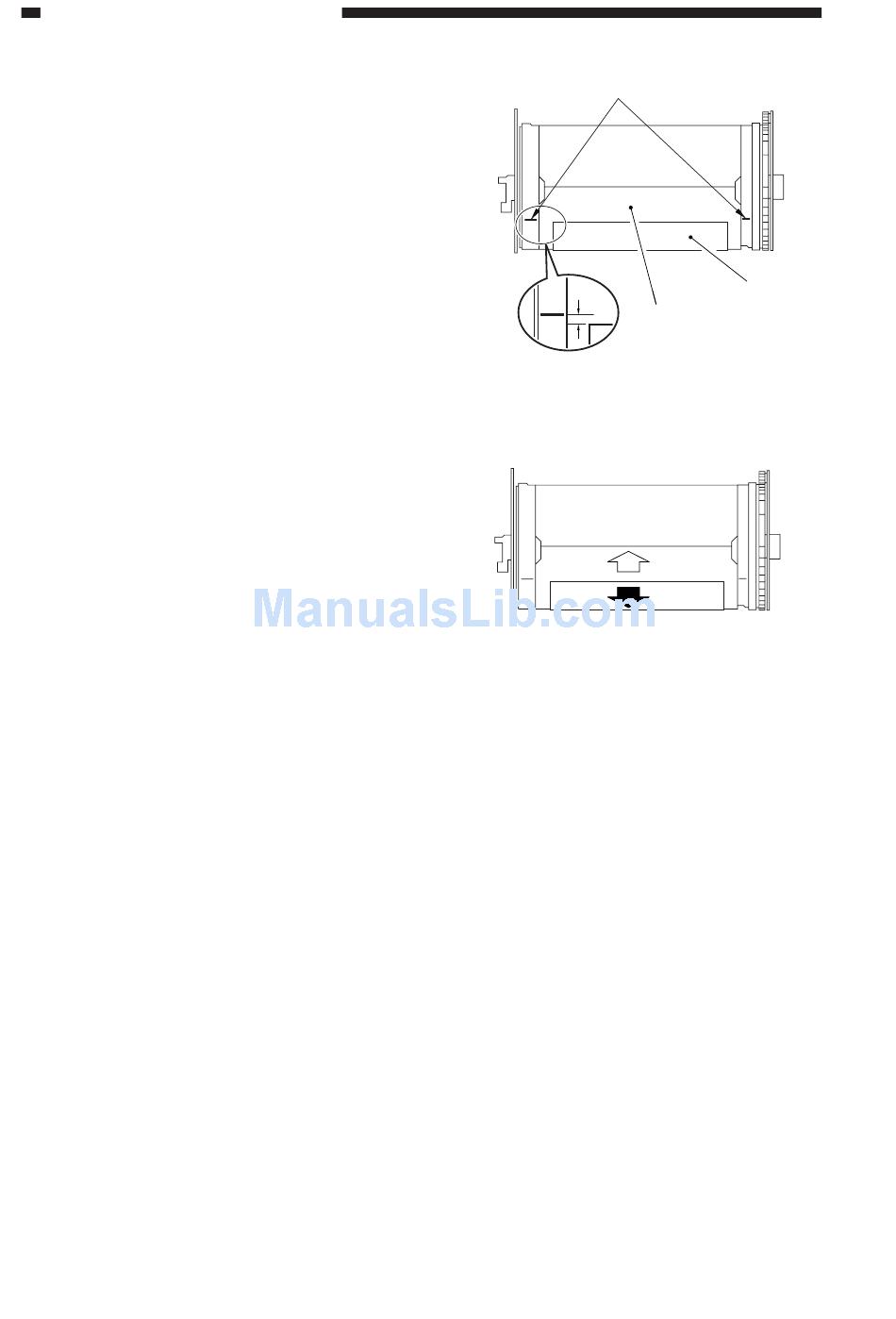

6) Place a ruler and copy paper against the
marking (Figure 13-207) etched to the
transfer drum ring (front, rear), and
measure the position d of the copy paper
in relation to the leading edge of the copy
paper. Perform this for both sides A and
B.
7) Make adjustments so that d is 0 ± 0.5 mm
in service mode (ADJUST>FEED-ADJ).
for side A: ATT-T-A
for side B: ATT-T-B
· Changing ATT-T-A, ATT-T-B to '1'
will shift the point of attraction by
about 0.1 mm.
· A higher setting will delay the start of
attraction (in the direction of the black
arrow) while a lower setting advances
it (in the direction of the white arrow).
8) After adjustment, turn off and then on the
power switch.
· Keep in mind that copies made in
normal mode will be black if you
forget to turn off and then on the
power switch.
13-10
COPYRIGHT © 1999 CANON INC.
(front)
(front)
CANON CLC1120/1130/1150 REV.0 MAR. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON)
Markings
d
Copy paper
Linking plate
Figure 13-207
Figure 13-208
(rear)
(side A)
(rear)
