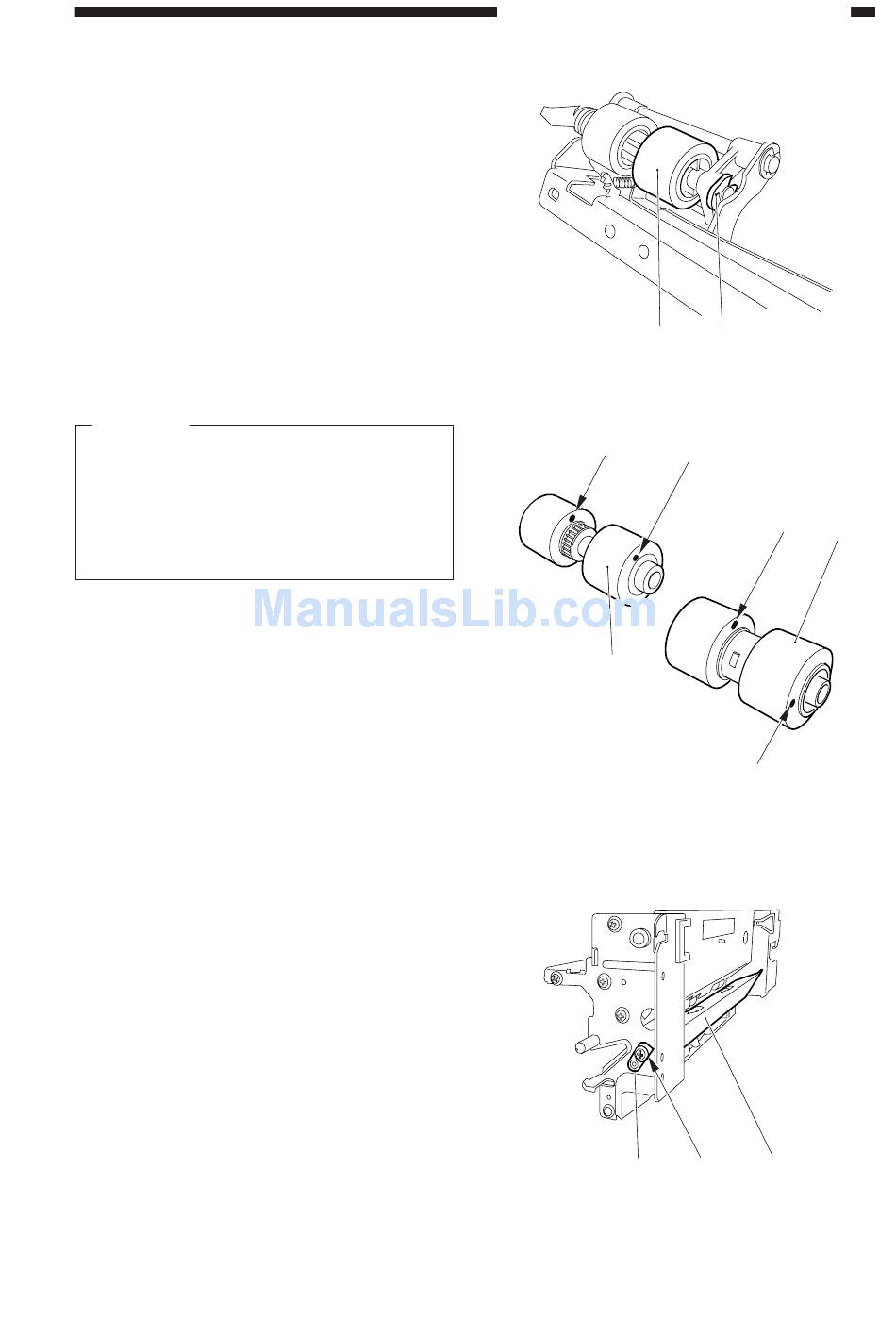

4) Remove the resin E-ring [5], and detach
the separation roller [6].
Caution:
a. When attaching the feed roller [1], be
sure that the round marking [2] is at
the front.
b. When mounting the separation roller
[3], be sure that the round marking
[4] is at the rear.
10. Removing the Duplexing Unit
Pickup Roller
1) Remove the duplexing pickup assembly.
2) Remove the screw [1], and detach the
positioning pin [2]; then, detach the paper
guide [3].
COPYRIGHT © 1999 CANON INC. CANON CLC1120/1130/1150 REV.0 MAR. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON)
CHAPTER 7 PICK-UP / FEEDING SYSTEM
[6]
Figure 7-722
[2]
[1]
Figure 7-723
[2]
Figure 7-724
[5]
[2]
[4]
[3]
[4]
[3]
[1]
7-57
