2. Sequence of Operations

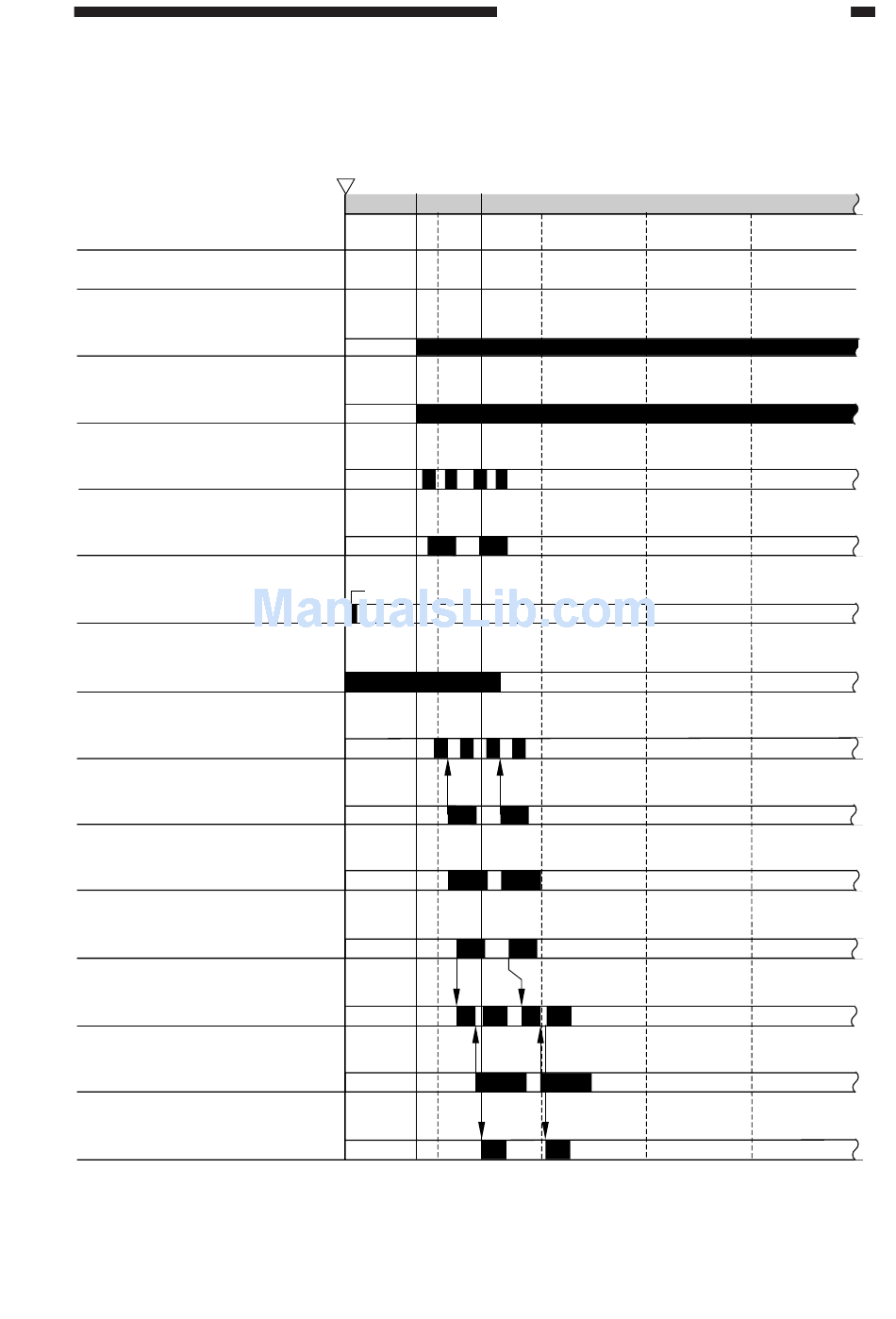

Duplexing Tray, A4, 2 Copies, Continuous, Full-Color, Direct
Photosensitive drum revolution
Transfer drum revolution
Main motor (M4)
Duplexing motor (M14)
Duplexing paper feed clutch
(CL14)
Duplexing paper feed solenoid
(SL13)
Stopper plate solenoid (SL12)
Duplexing tray paper sensor
(SP36)
Re-pickup motor (PM13)
Re-pickup path sensor (PS28)
Pre-registration motor 2 (PM8)
Pre-registration sensor (PS30)
Pre-registration motor 1 (PM9)
Registration sensor (PS70)
Registration clutch (CL9)
COPYRIGHT © 1999 CANON INC.
Copy Start key ON (2nd)
DSRDY
INTR
Lowers
Figure 7-308
CANON CLC1120/1130/1150 REV.0 MAR. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON)
CHAPTER 7 PICK-UP / FEEDING SYSTEM
COPY
1 2
1 2
3 4
3 4
7-29
