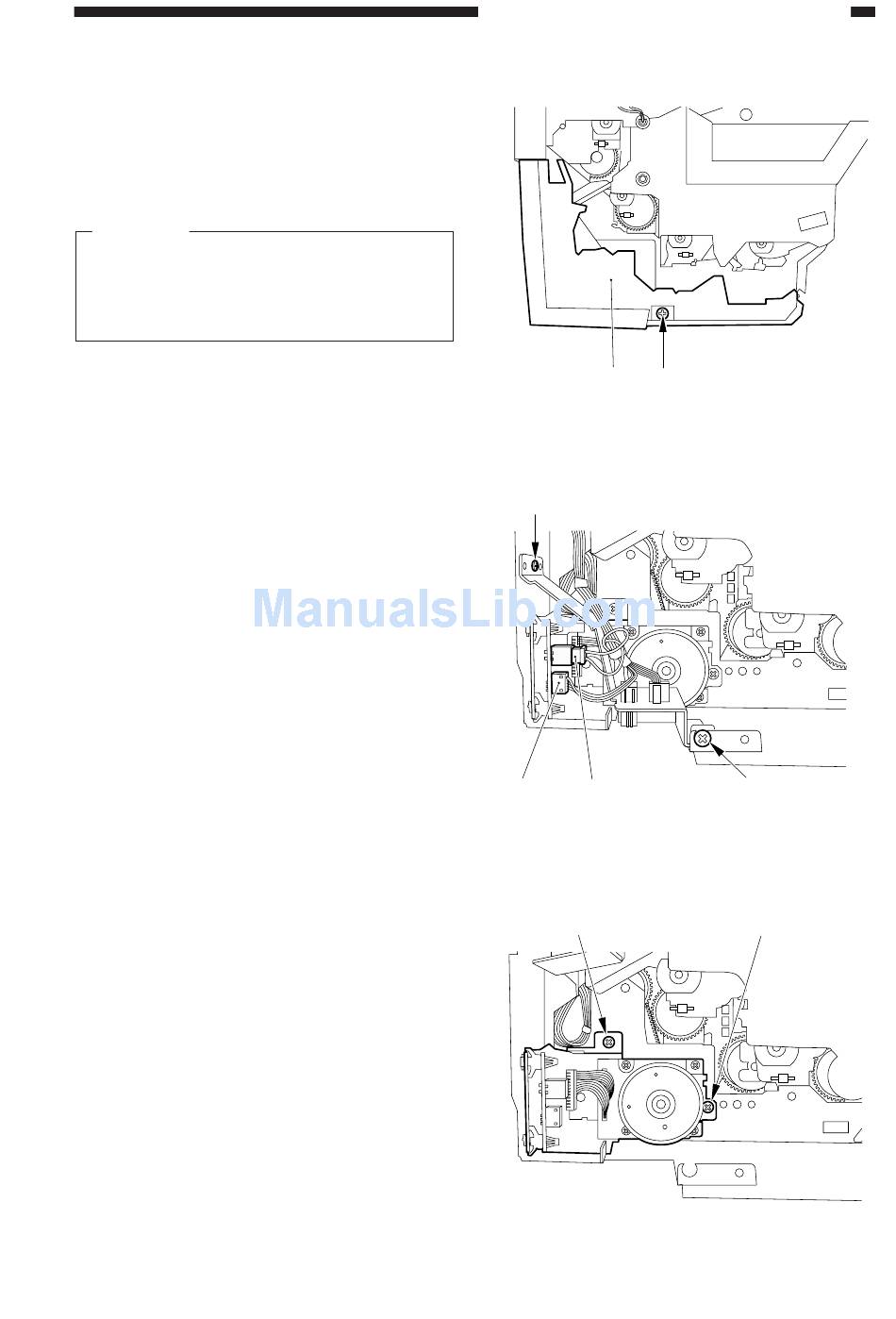

3. Removing the Hopper Motor

1) Remove the hopper unit.
2) Remove the screw [1], and detach the
toner receptacle [2].
Caution:
If the hopper motor does not rotate or
fails to stop, a transistor on the DC driver
PCB may be damaged. If such is the
case, replace the DC driver PCB.
3) Remove the two screws [3], and
disconnect the two connectors [4]; then,
remove the connector mount.
4) Remove the two screws [5], and remove
the hopper motor.
COPYRIGHT © 1999 CANON INC. CANON CLC1120/1130/1150 REV.0 MAR. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON)
CHAPTER 6 IMAGE FORMATION SYSTEM
[2] [1]
Figure 6-656
[3]
[4] [4]
Figure 6-657
[5]
Figure 6-658
[3]
[5]
6-75
