Custom Readout (Value)
P 16-09
Custom Readout
Unit P 0-30
Max value
P 0-32
Min value
Linear
units only
P 0-31
0

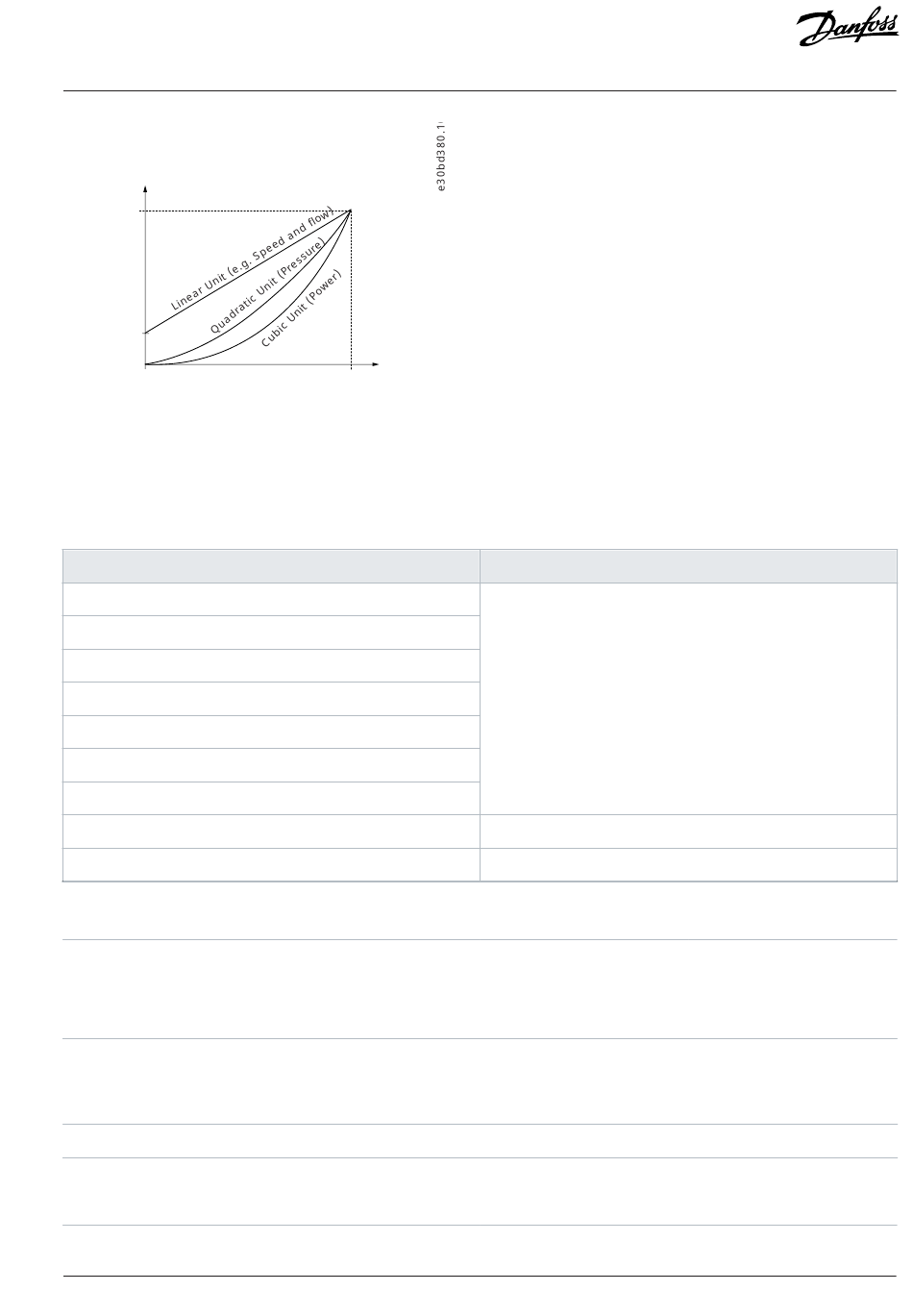

Figure 15: Custom Readout
The relation depends on the type of unit selected in parameter 0-30 Custom Readout Unit:
Table 11: Relation between Unit Type and Speed
Unit type
Dimensionless
Speed
Flow, volume
Flow, mass
Velocity
Length
Temperature
Pressure
Power
0-30 Custom Readout Unit
Default value:
[1] %
Setup:
1 setup
Data type:
Uint8
Set a value to be shown in the LCP. The value has a linear, squared, or cubed relation to speed. This relation depends on the unit selected.
See the above table. The actual calculated value can be read in parameter 16-09 Custom Readout.
Option
[0]
[1]
Danfoss A/S © 2024.01
Motor Speed
Motor Speed
High limit
P 4-14 (Hz)
Speed relation
Linear
Quadratic
Cubic
Parameter type:
Conversion index:
Change during operation:
Name
None
%
Option
–
True
