Programming Guide | VLT® AutomationDrive FC 360
5-7* 24V Encoder Input
4.6.7
Connect the 24 V encoder to terminal 12 (24 V DC supply), terminal 32 (channel A), terminal 33 (channel B), and terminal 20 (GND). The
digital inputs 32/33 are active for encoder inputs when [1] 24 V encoder is selected in parameter 7-00 Speed PID Feedback Source. The
encoder is a dual channel (A and B) 24 V type. Maximum input frequency: 32 kHz.
Encoder connection to the drive
24 V incremental encoder. Maximum cable length is 5 m (16.4 ft).
12 18 19

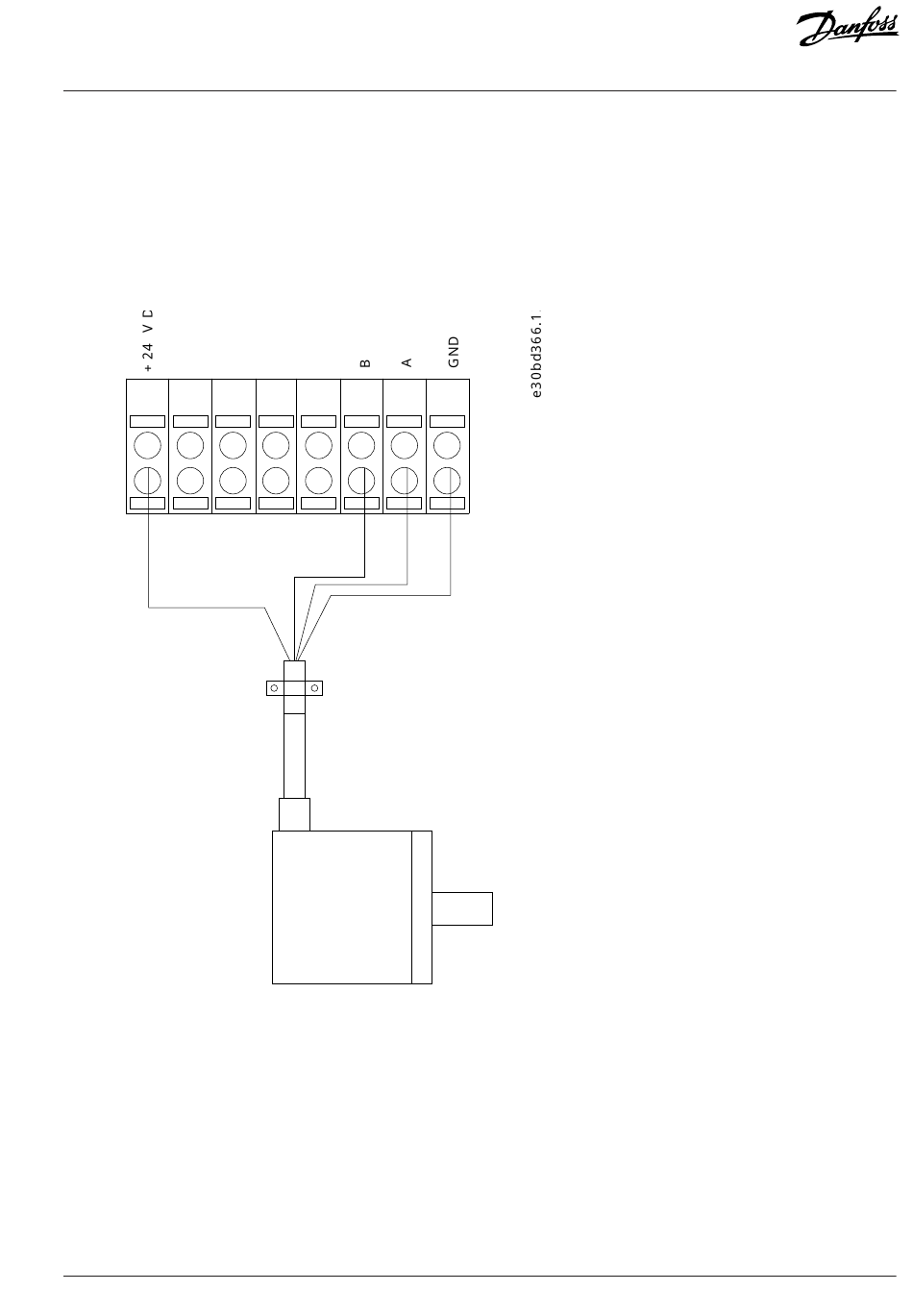

Figure 32: 24 V or 10–30 V Encoder Connection
Danfoss A/S © 2024.01
27 29 32 33 20
