Programming Guide | VLT® AutomationDrive FC 360
12 18 19 27
Start/Stop
Speed
Start
Terminal 18

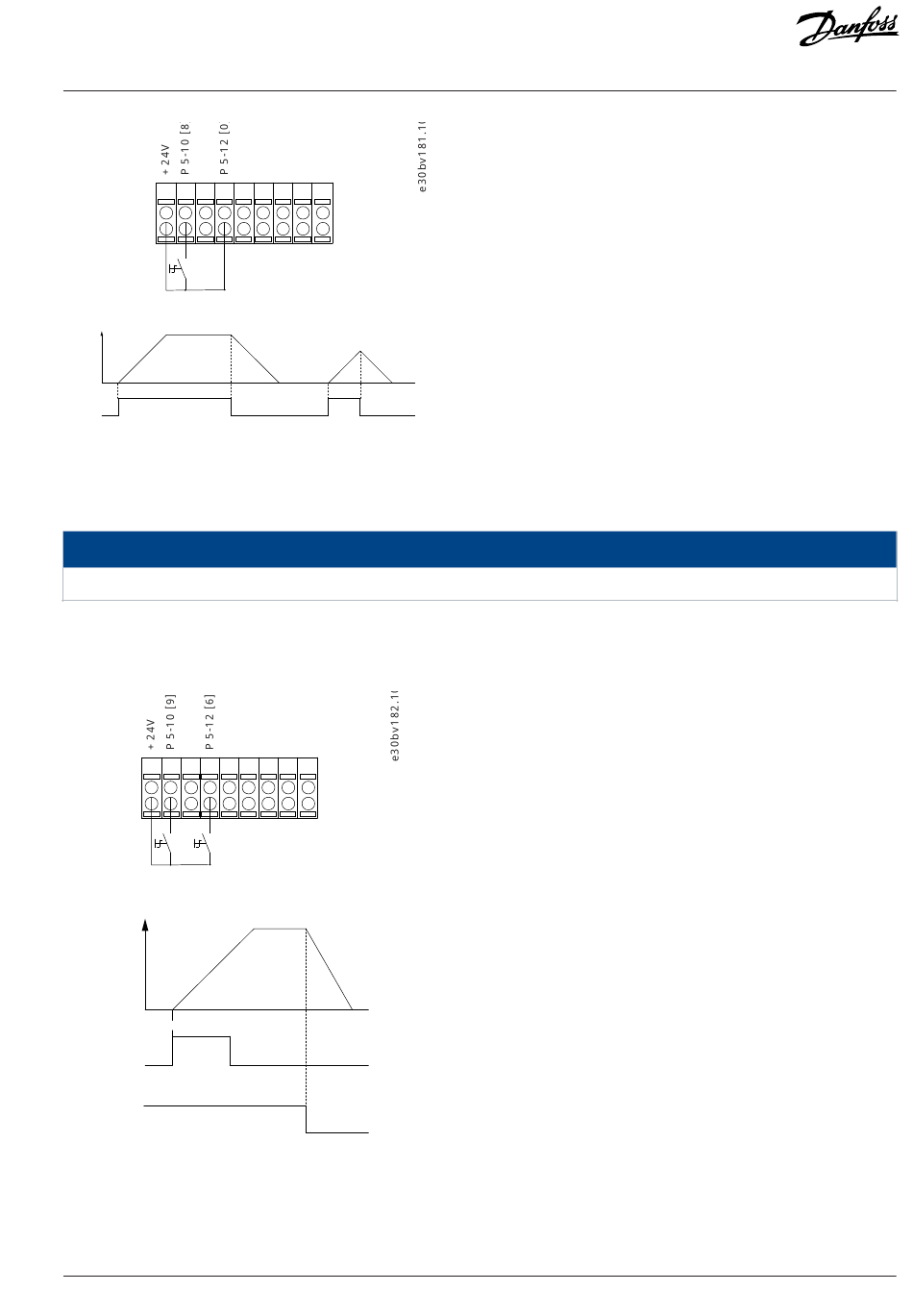

Figure 5: Start/Stop
Latched Start/Stop Inverse
1.5.3
Make sure the drive is under the factory setting before doing the following operation.
Terminal 18 = Parameter 5-10 Terminal 18 Digital Input[9] Latched start.
Terminal 27 = Parameter 5-12 Terminal 27 Digital Input[6] Stop inverse.
12 18 19 27 29
Latched Stop
start inverse
Speed
Latched start
Terminal 18
Stop inverse
Terminal 27
Figure 6: Latched Start/Stop Inverse
