Programming Guide | VLT® AutomationDrive FC 360
5-42 Off Delay, Relay
Default value:
0.01 s
Setup:
All setups
Data type:
Uint16
Enter the delay of the relay cutout time.
Selected
event
Relay
output
On delay
P 5-41

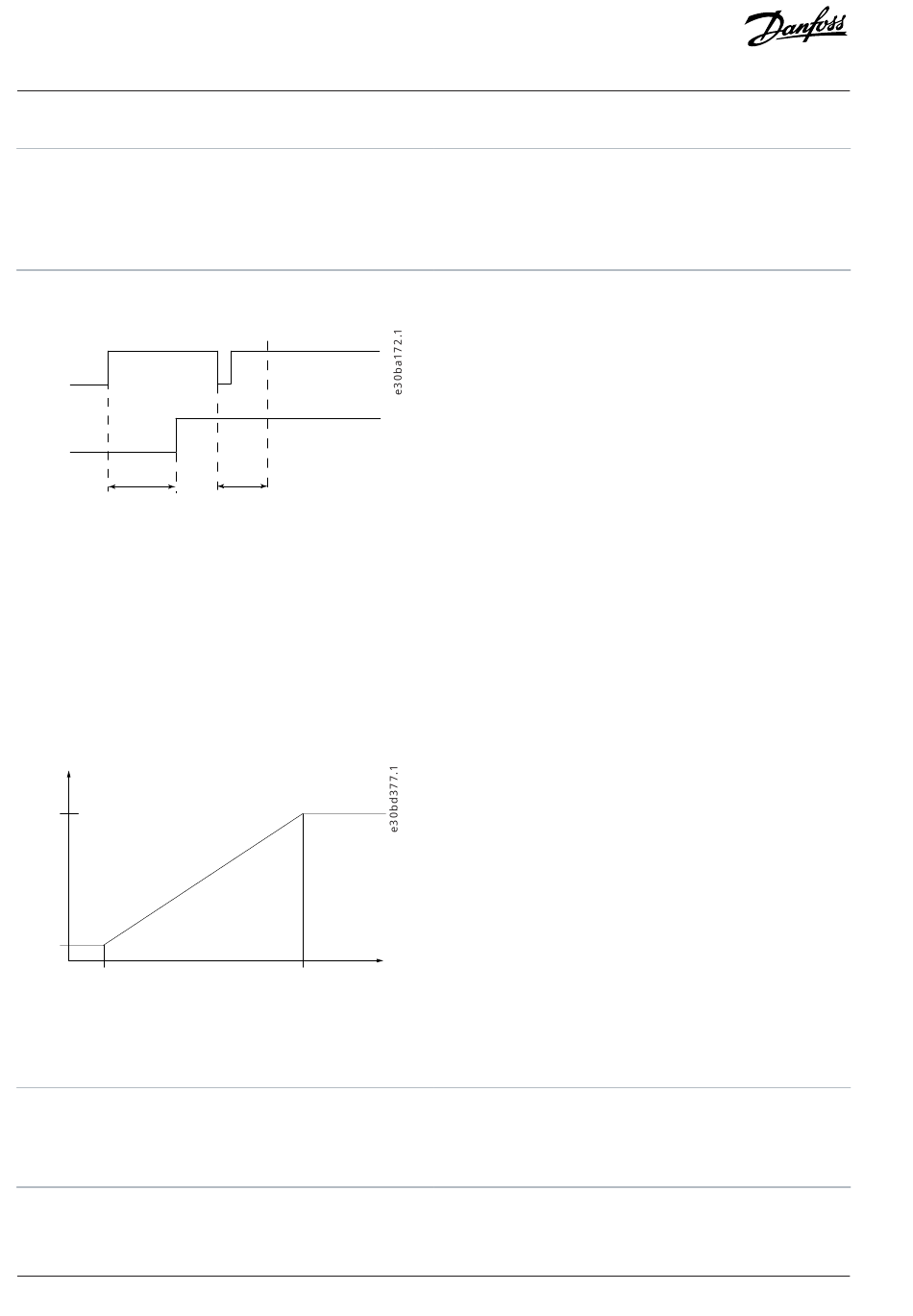

Figure 29: Off Delay, Relay
If the selected event condition changes before the on- or off delay timer expires, the relay output is unaffected.
5-5* Pulse Input
4.6.5
The pulse input parameters are used to define an appropriate window for the impulse reference area by configuring the scaling and
filter settings for the pulse inputs. Input terminals 29 or 33 act as frequency reference inputs. Set terminal 29 (parameter 5-13 Terminal
29 Digital Input) or terminal 33 (parameter 5-15 Terminal 33 Digital Input) to [32] Pulse input. If terminal 29 is used as an input, then set
parameter 5-02 Terminal 29 Mode to [0] Input.
Ref.
High
ref.
value
P 5-53/
p 5-58
Low
ref.
value
P 5-52/
p 5-57
Low freq.
P 5-50/
P 5-55
Figure 30: Pulse Input
5-50 Term. 29 Low Frequency
Default value:
4 Hz
Setup:
All setups
Data type:
Uint32
136
| Danfoss A/S © 2024.01
Off delay
P 5-42
High freq. Input
P 5-51/ (Hz)
P 5-56
Parameter type:
Conversion index:
Change during operation:
Parameter type:
Conversion index:
Change during operation:
Range (0.00–600.00 s), Array
[2]
-2
True
Range (4–31999 Hz)
0
True
