Table 8: Changing Values in Enumerated Parameters (continued)
The Up/Down key: Select a parameter within the group.
5
[Back]: Removes the value and shows the parameter group.
6
The Up/Down key: Select a group.
7
Principles and actions of changing the value of array parameters
Setup 1
5 x
1
OK
Setup 1
INDEX
2
OK
Setup 1
INDEX
Setup 1
INDEX
OK 4
Setup 1
INDEX

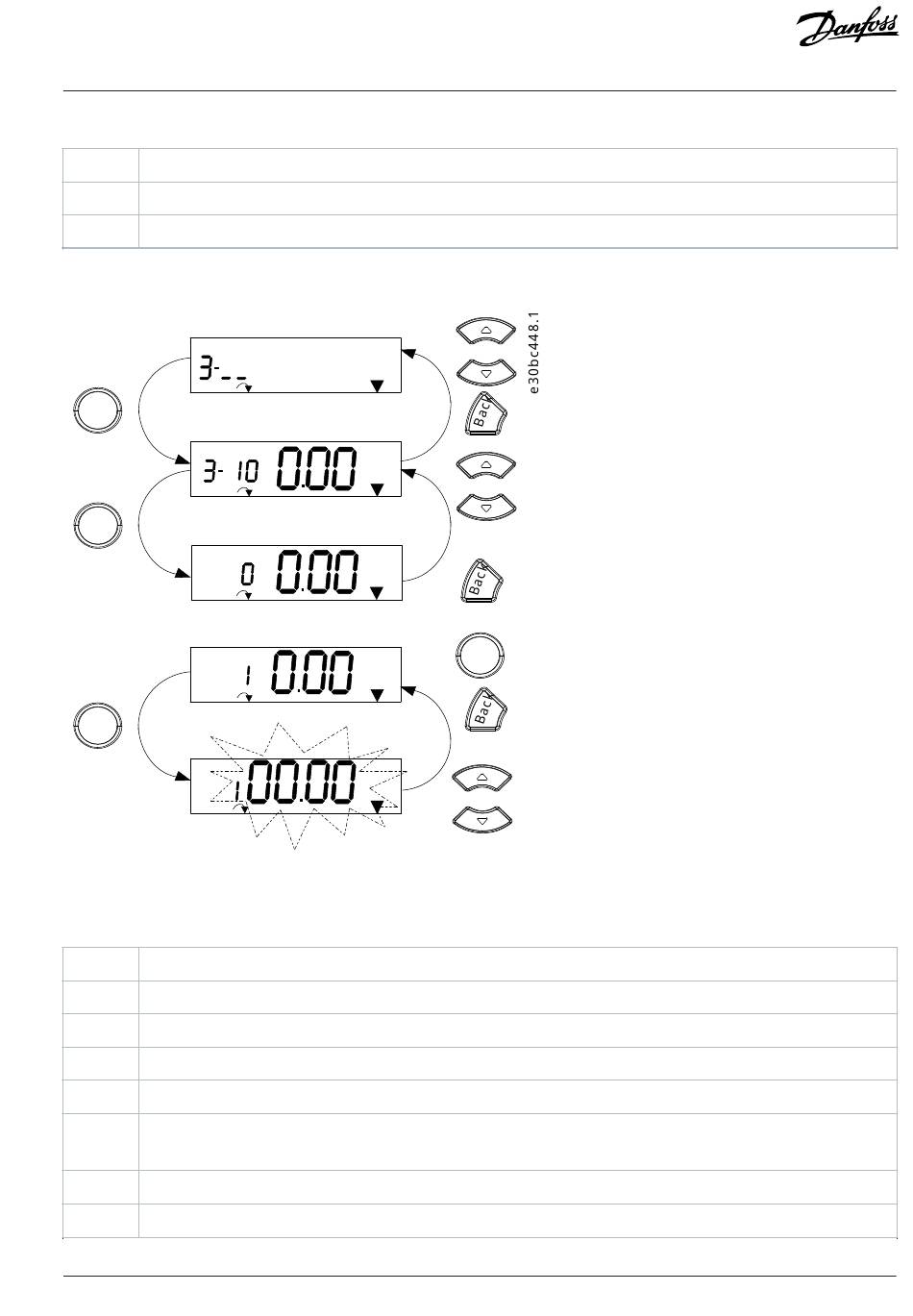

Figure 14: Main Menu Interactions - Array Parameters
Table 9: Changing Values in Array Parameters
[OK]: Shows parameter numbers and the value in the first index.
1
[OK]: Index can be selected.
2
The Up/Down key: Select index.
3
[OK]: Value can be edited.
4
The Up/Down key: Change parameter value (flashing).
5
[Back]: Cancels changes.
6
[OK]: Accepts changes.
[Back]: Cancels editing index, a new parameter can be selected.
7
The Up/Down key: Select parameter within the group.
8
