Programming Guide | VLT® AutomationDrive FC 360
Ref./Feedback
Par 6-xx
50
High Ref./
Feed b. Value'
40
30
20
Par 6-xx
10
Low Ref./
5
Feed b. Value'
1 V
Par 6-xx
'Low Voltage 'or
'Low Current'

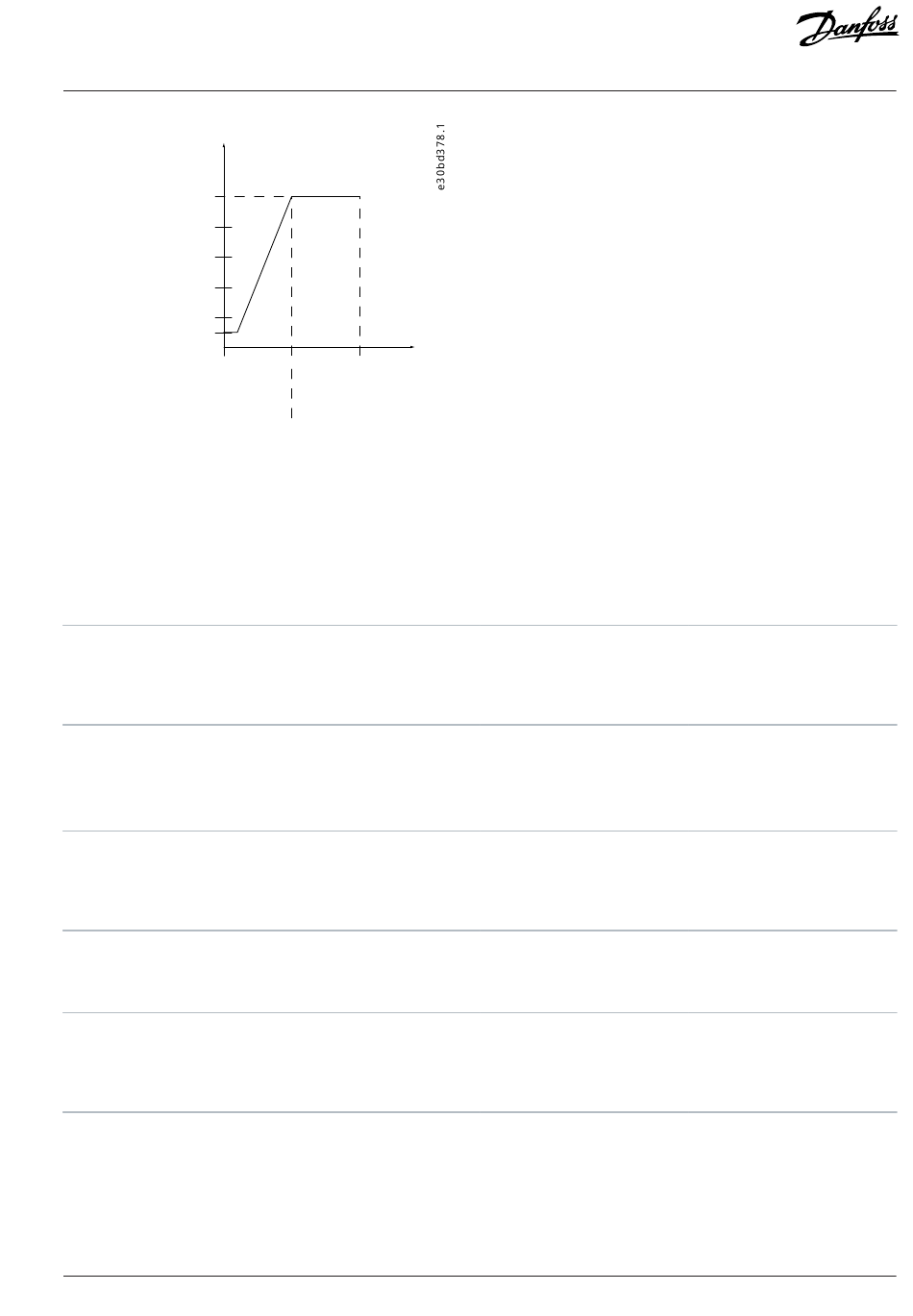

Figure 34: Timeout Function
6-1* Analog Input 53
4.7.3
Parameters for configuring the scaling and limits for analog input 53 (terminal 53).
6-10 Terminal 53 Low Voltage
Default value:
0.07 V
Setup:
All setups
Data type:
Uint16
Enter the voltage (V) that corresponds to parameter 6-14 Terminal 53 Low Ref./Feedb. Value. To activate parameter 6-01 Live Zero
Timeout Function, set the value to >1 V.
6-11 Terminal 53 High Voltage
Default value:
10.00 V
Setup:
All setups
Data type:
Uint16
Enter the voltage (V) that corresponds to the high reference value (set in parameter 6-15 Terminal 53 High Ref./Feedb. Value).
6-12 Terminal 53 Low Current
Default value:
4.0 mA
Setup:
All setups
Data type:
Uint16
Enter the low current value. This reference signal corresponds to the low reference feedback value that is set in parameter 6-14 Terminal
53 Low Ref./Feedb. Value. To activate parameter 6-01 Live Zero Timeout Function, set the value to >2 mA.
Danfoss A/S © 2024.01
5 V 10 V
[V]
Analog input
Par 6-xx
'High Voltage 'or
'High Current'
Parameter type:
Conversion index:
Change during operation:
Parameter type:
Conversion index:
Change during operation:
Parameter type:
Conversion index:
Change during operation:
AU275649936274en-001401 / 130R0507 |
Range (0.00–10.00 V)
-2
True
Range (0.00–10.00 V)
-2
True
Range (0.00–20.00 mA)
-2
True
