Output configuration

When the I/O port is programmed as output:
•
The output buffer is enabled:
–
–
•
The Schmitt trigger input is activated
• The weak pull-up and pull-down resistors are activated or not depending on the value
in the GPIOx_PUPDR register
•
The data present on the I/O pin are sampled into the input data register every AHB1
clock cycle
•
A read access to the input data register gets the I/O state
•
A read access to the output data register gets the last written value
Figure 21

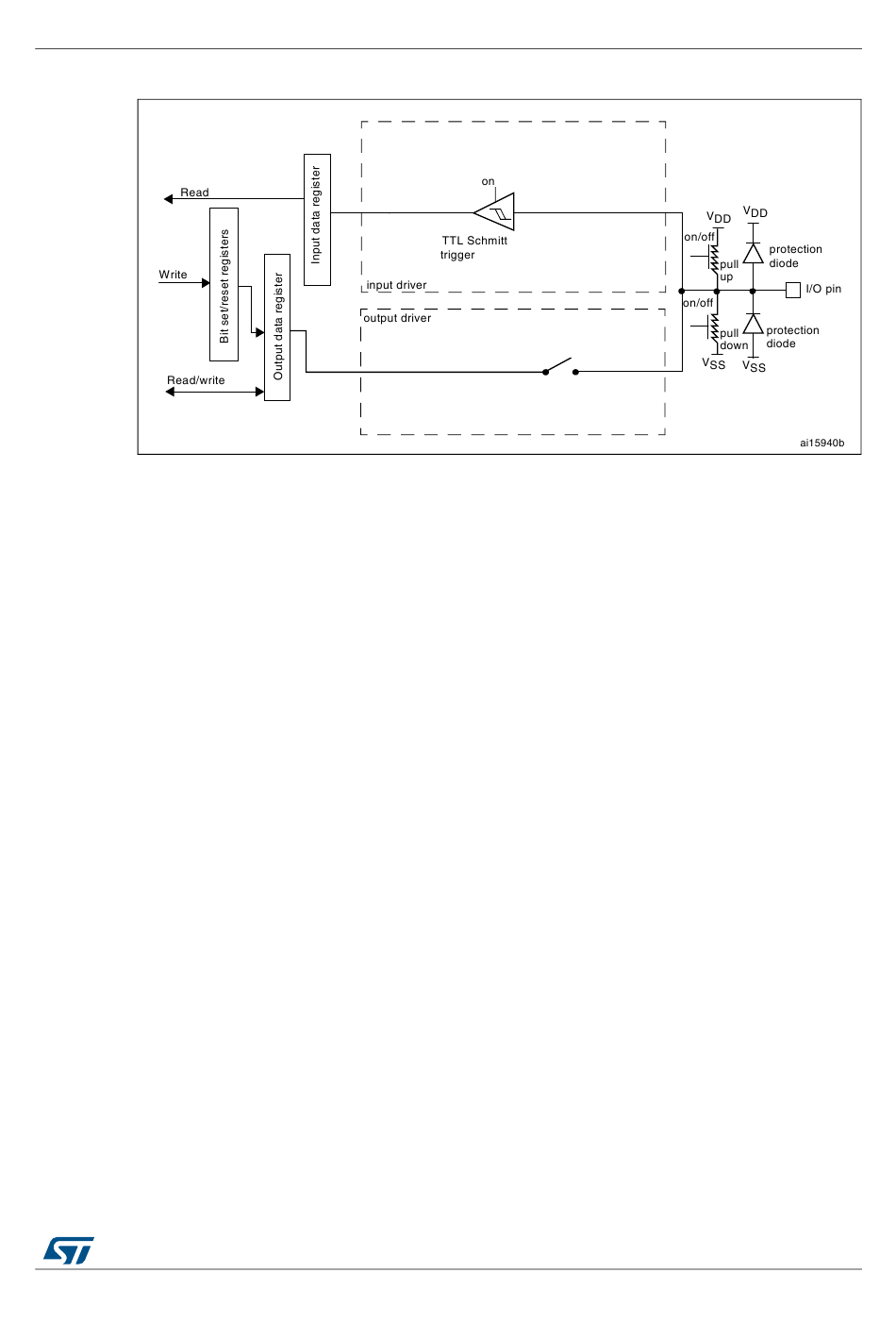

Figure 20. Input floating/pull up/pull down configurations

Open drain mode: A "0" in the Output register activates the N-MOS whereas a "1"
in the Output register leaves the port in Hi-Z (the P-MOS is never activated)
Push-pull mode: A "0" in the Output register activates the N-MOS whereas a "1" in
the Output register activates the P-MOS
shows the output configuration of the I/O port bit.
