Digital camera interface (DCMI)
15.4

DCMI functional overview

The digital camera interface is a synchronous parallel interface that can receive high-speed
(up to 54 Mbytes/s) data flows. It consists of up to 14 data lines (D13-D0) and a pixel clock
line (DCMI_PIXCLK). The pixel clock has a programmable polarity, so that data can be
captured on either the rising or the falling edge of the pixel clock.
The data are packed into a 32-bit data register (DCMI_DR) and then transferred through a
general-purpose DMA channel. The image buffer is managed by the DMA, not by the
camera interface.
The data received from the camera can be organized in lines/frames (raw YUB/RGB/Bayer
modes) or can be a sequence of JPEG images. To enable JPEG image reception, the JPEG
bit (bit 3 of DCMI_CR register) must be set.
The data flow is synchronized either by hardware using the optional DCMI_HSYNC
(horizontal synchronization) and DCMI_VSYNC (vertical synchronization) signals or by
synchronization codes embedded in the data flow.
15.4.1

DCMI block diagram

Figure 101
424/1328
shows the DCMI block diagram.

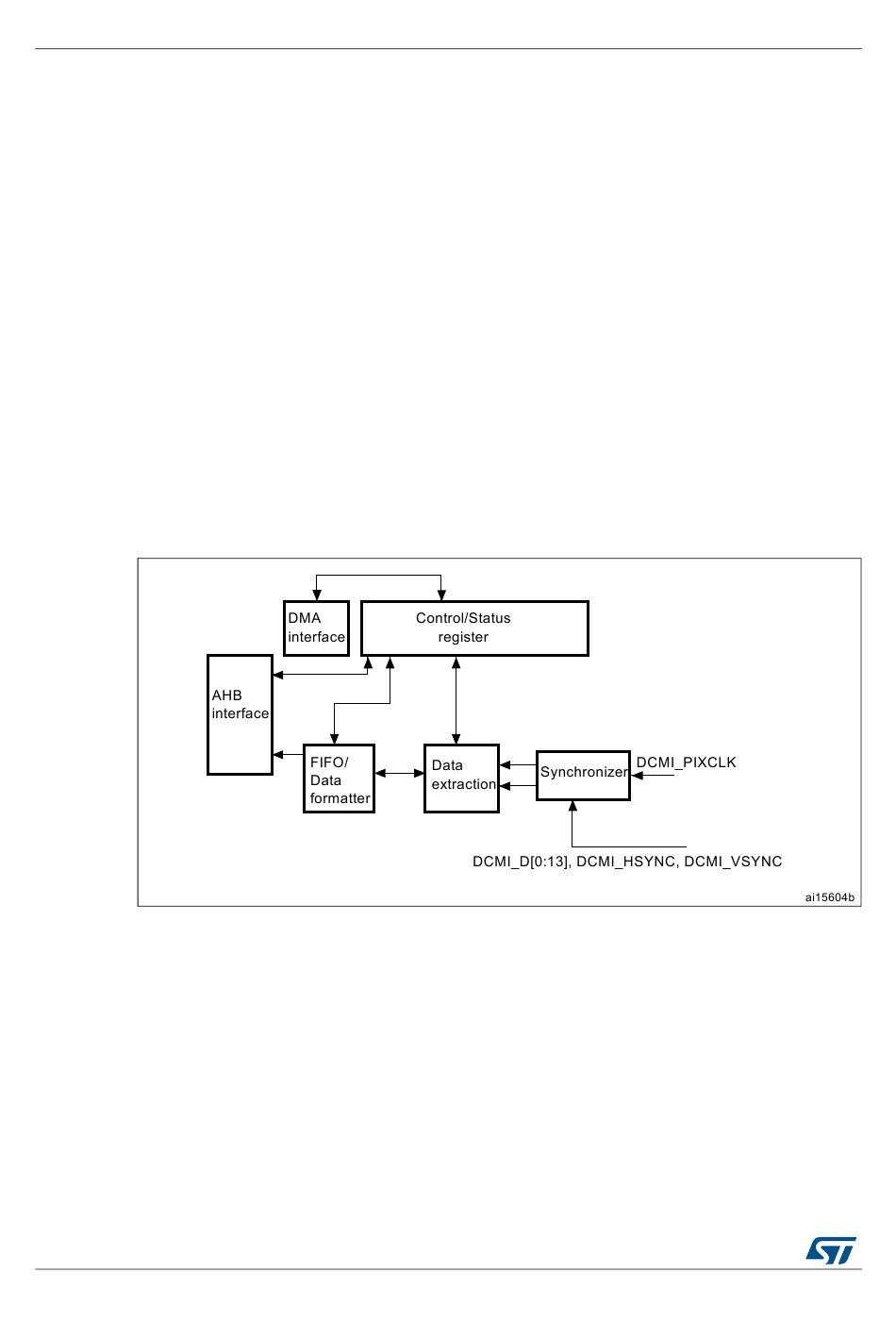

Figure 101. DCMI block diagram
