Advanced-control timers (TIM1&TIM8)

PWM mode is the PWM mode 1,

The flag is set when the counter counts down corresponding to the center-aligned

mode 1 selected for CMS=01 in TIMx_CR1 register.

shows some center-aligned PWM waveforms in an example where:

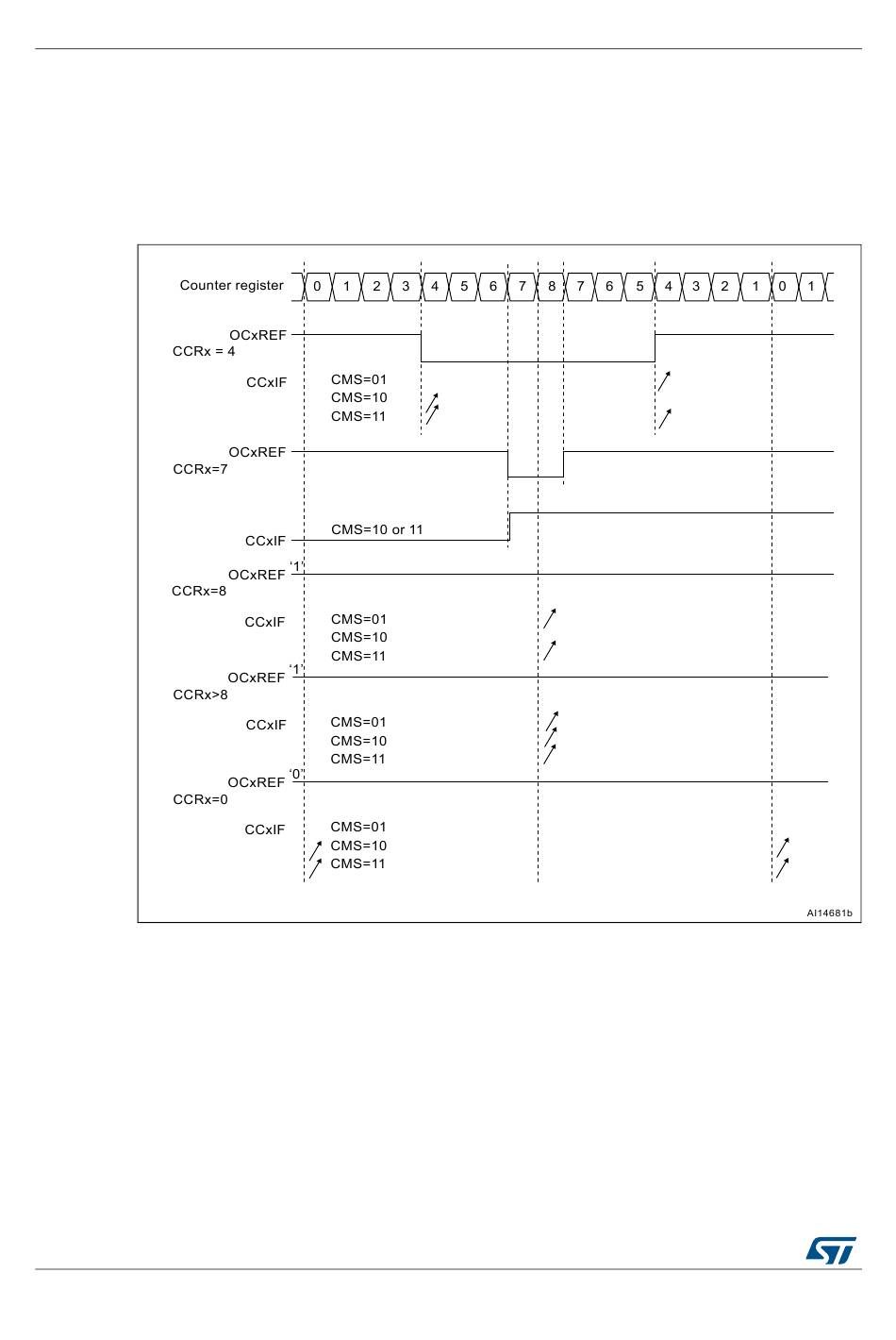

Figure 143. Center-aligned PWM waveforms (ARR=8)

RM0390 Rev 4
