Fast-mode Plus Inter-integrated circuit (FMPI2C) interface

This section is relevant only when SMBus feature is supported. Refer to

In addition to FMPI2C master transfer management (refer to

mode) some additional software flowcharts are provided to support SMBus.

SMBus Master transmitter

When the SMBus master wants to transmit the PEC, the PECBYTE bit must be set and the

number of bytes must be programmed in the NBYTES[7:0] field, before setting the START

bit. In this case the total number of TXIS interrupts will be NBYTES-1. So if the PECBYTE

bit is set when NBYTES=0x1, the content of the FMPI2C_PECR register is automatically

transmitted.

If the SMBus master wants to send a STOP condition after the PEC, automatic end mode

should be selected (AUTOEND=1). In this case, the STOP condition automatically follows

the PEC transmission.

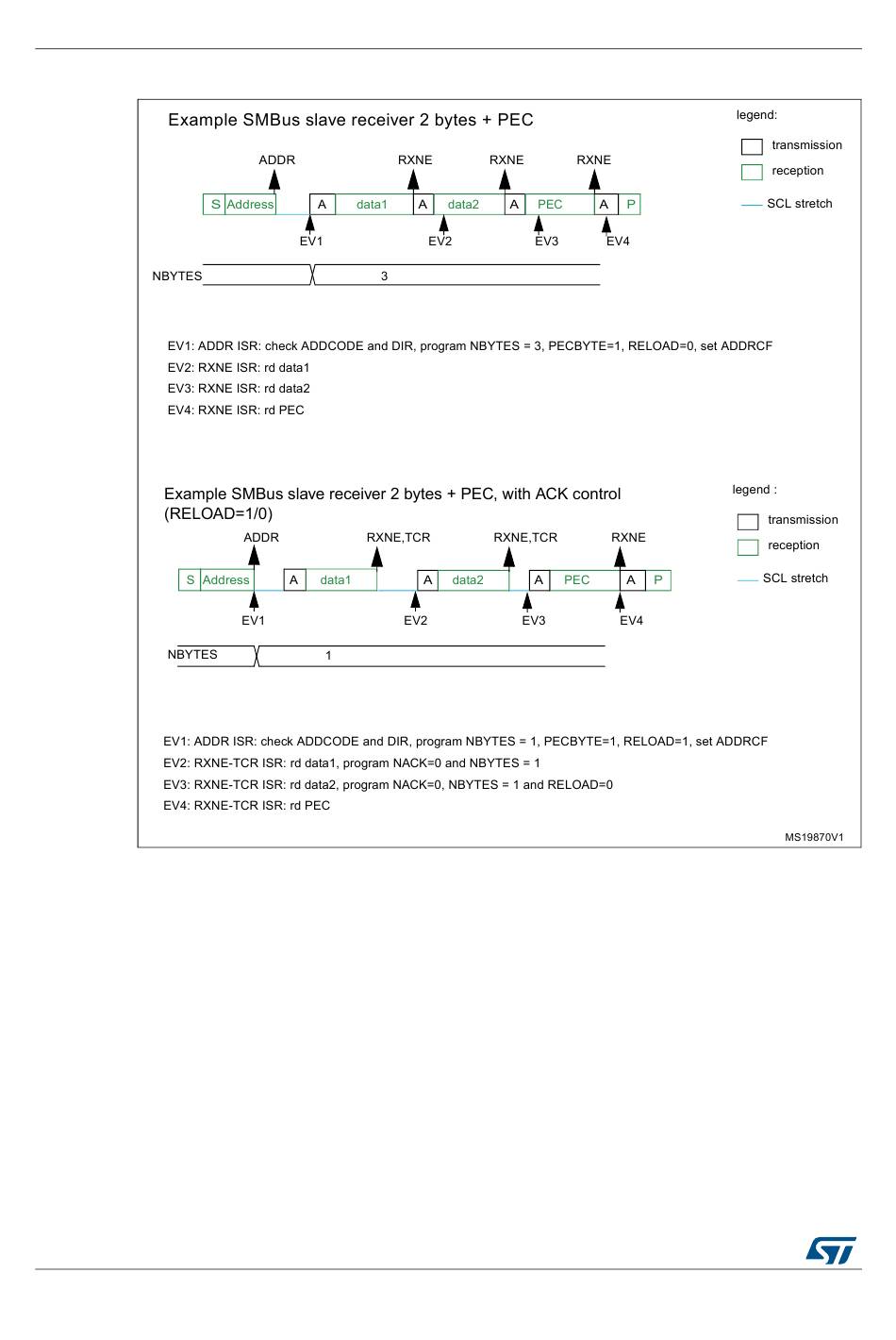

Figure 268. Bus transfer diagrams for SMBus slave receiver (SBC=1)

implementation.

RM0390 Rev 4

Section 23.3:

Section 23.4.8: FMPI2C
