FMPI2C_PECR register is automatically transmitted if the master requests an extra byte
after the NBYTES-1 data transfer.
Caution:
The PECBYTE bit has no effect when the RELOAD bit is set.

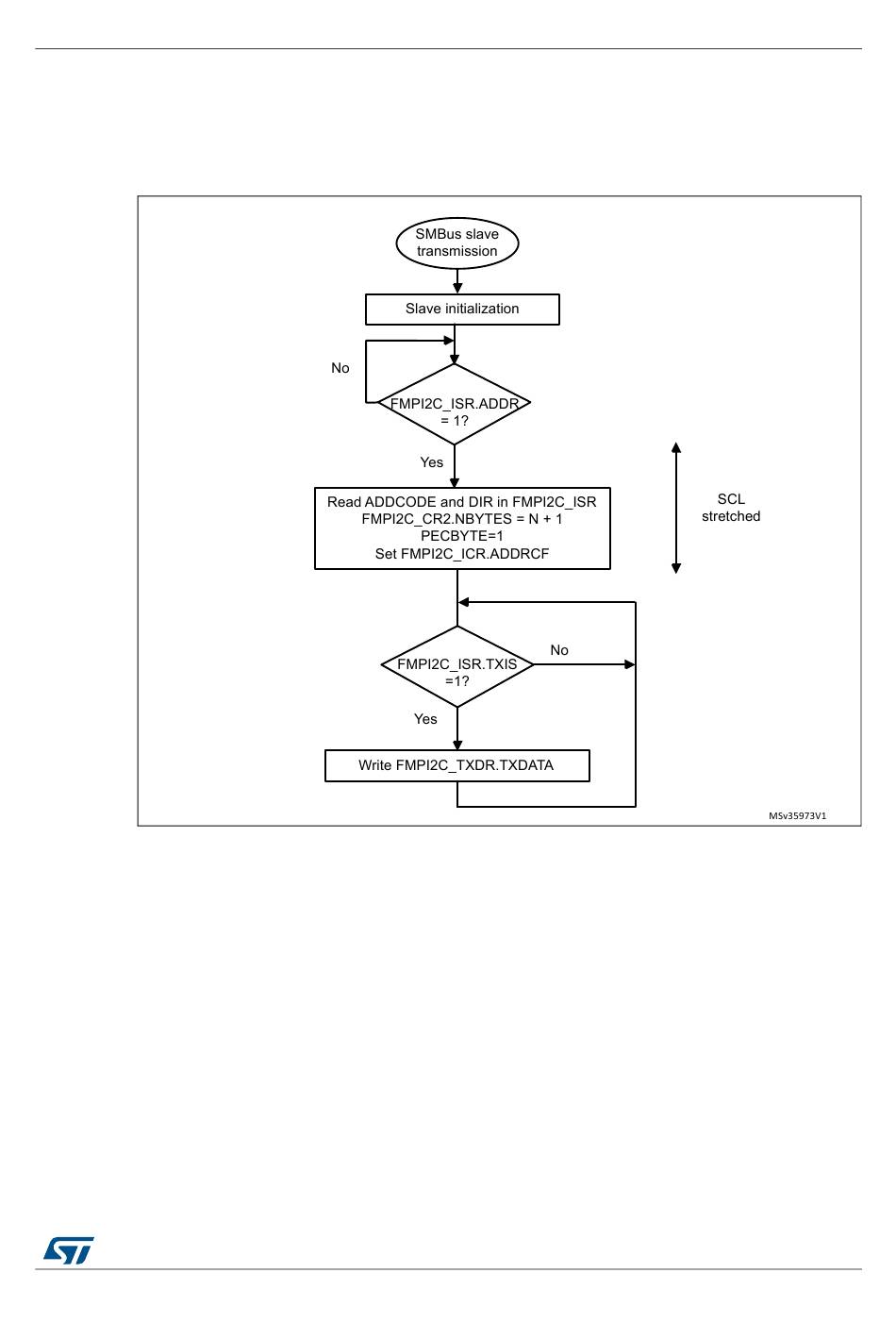

Figure 265. Transfer sequence flowchart for SMBus slave transmitter N bytes + PEC

Fast-mode Plus Inter-integrated circuit (FMPI2C) interface
RM0390 Rev 4
731/1328
758
