RM0390
15.4.2

DMA interface

The DMA interface is active when the CAPTURE bit in the DCMI_CR register is set. A DMA
request is generated each time the camera interface receives a complete 32-bit data block
in its register.
15.4.3

DCMI physical interface

The interface is composed of 11/13/15/17 inputs. Only the Slave mode is supported.
The camera interface can capture 8-bit, 10-bit, 12-bit or 14-bit data depending on the
EDM[1:0] bits in the DCMI_CR register. If less than 14 bits are used, the unused input pins
must be connected to ground.
Table 96
Signal name
8 bits
10 bits
12 bits
14 bits
DCMI_PIXCLK
DCMI_HSYNC
DCMI_VSYNC
The data are synchronous with DCMI_PIXCLK and change on the rising/falling edge of the
pixel clock depending on the polarity.
The DCMI_HSYNC signal indicates the start/end of a line.
The DCMI_VSYNC signal indicates the start/end of a frame

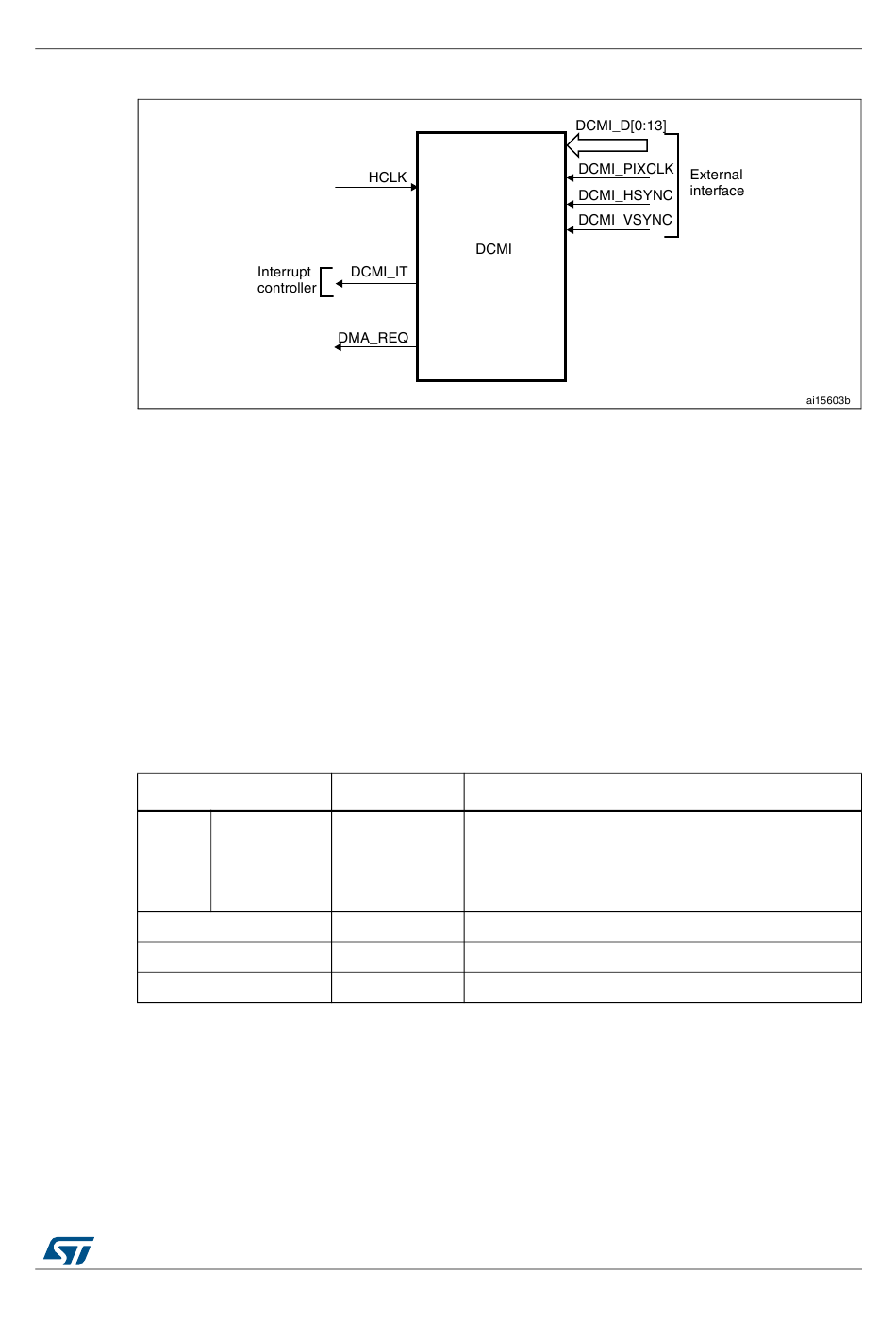

Figure 102. Top-level block diagram

shows the DCMI pins.

Table 96. DCMI external signals

Signal type
DCMI_D[0..7]
DCMI_D[0..9]
Digital inputs
DCMI_D[0..11]
DCMI_D[0..13]
Digital input
Digital input
Digital input
DCMI data
Pixel clock
Horizontal synchronization / Data valid
Vertical synchronization
RM0390 Rev 4
Digital camera interface (DCMI)
Signal description
425/1328
448
