RM0390
When SPDIFRX is in STATE_IDLE:
• The software can transition to STATE_SYNC by setting SPDIFRXEN to 0b01 or 0b11
When SPDIFRX is in STATE_SYNC:
•
If the synchronization fails or if the received data are not properly decoded with no
chance of recovery without a re-synchronization (FERR or SERR or TERR = 1), the
SPDIFRX goes to STATE_STOP, and waits for software acknowledge.
•
When the synchronization phase is completed, if SPDIFRXEN = 0b01 the peripheral
remains in this state.
•
At any time the software can set SPDIFRXEN to 0, then SPDIFRX returns immediately
to STATE_IDLE. If a DMA transfer is on-going, it will be properly completed.
•
The SPDIFRX goes to STATE_RCV if SPDIFRXEN = 0b11 and if the SYNCD = 1
When SPDIFRX is in STATE_RCV:
•
If the received data are not properly decoded with no chance of recovery without a re-
synchronization (FERR or SERR or TERR = 1), the SPDIFRX goes to STATE_STOP,
and waits for software acknowledge.
•
At any time the software can set SPDIFRXEN to 0, then SPDIFRX returns immediately
to STATE_IDLE. If a DMA transfer is on-going, it will properly be completed.
When SPDIFRX is in STATE_STOP:
•
The SPDIFRX stops reception and synchronization, and waits for the software to set
the bit SPDIFRXEN to 0, in order to clear the error flags.

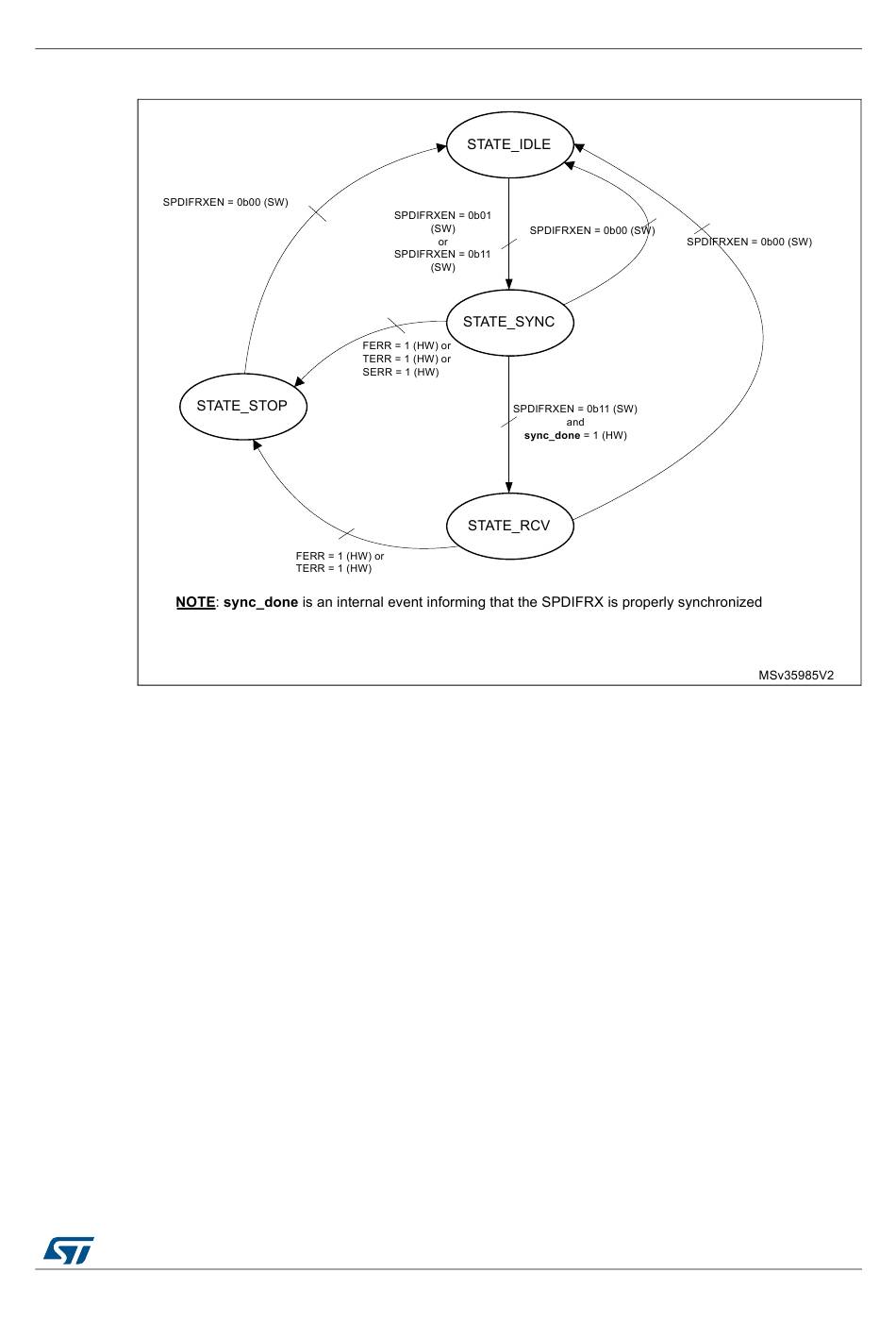

Figure 348. SPDIFRX States
