RM0390 Advanced-control timers (TIM1&TIM8)

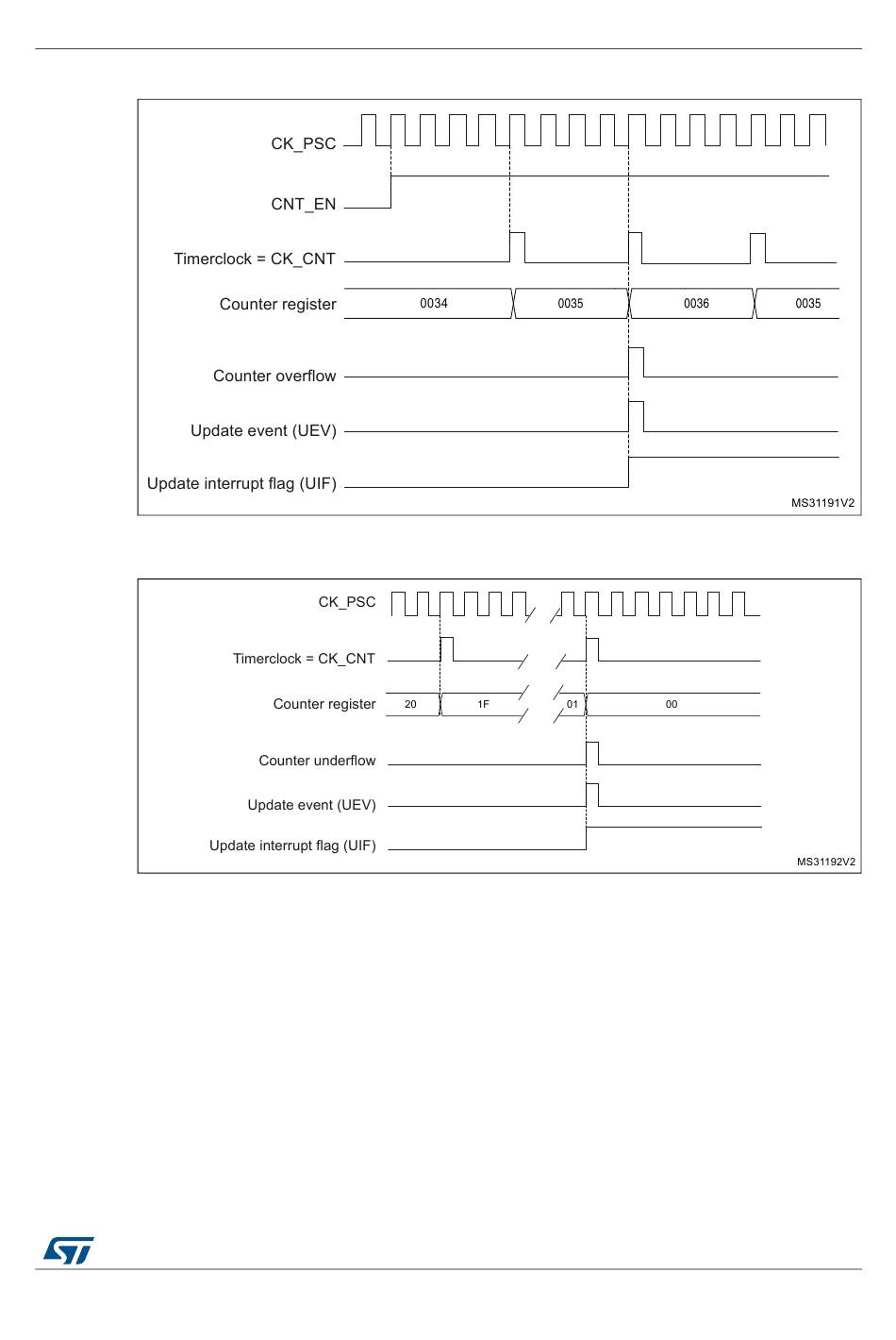

Figure 126. Counter timing diagram, internal clock divided by 4, TIMx_ARR=0x36

1. Center-aligned mode 2 or 3 is used with an UIF on overflow.

Figure 127. Counter timing diagram, internal clock divided by N

RM0390 Rev 4 461/1328
520
