Fast-mode Plus Inter-integrated circuit (FMPI2C) interface

Slave receiver

RXNE is set in FMPI2C_ISR when the FMPI2C_RXDR is full, and generates an interrupt if

RXIE is set in FMPI2C_CR1. RXNE is cleared when FMPI2C_RXDR is read.

When a STOP is received and STOPIE is set in FMPI2C_CR1, STOPF is set in

FMPI2C_ISR and an interrupt is generated.

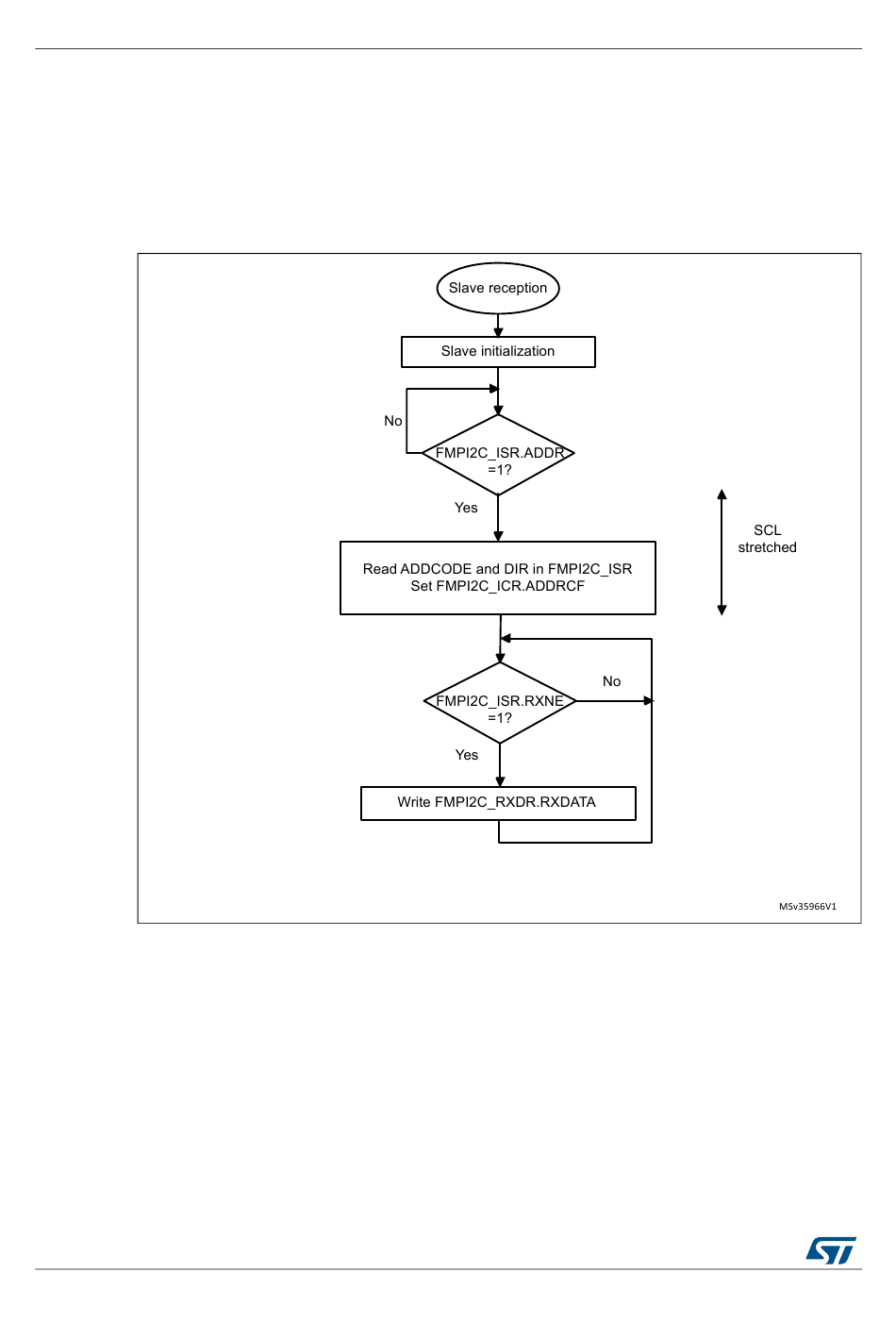

Figure 251. Transfer sequence flowchart for slave receiver with NOSTRETCH=0
