Advanced-control timers (TIM1&TIM8)

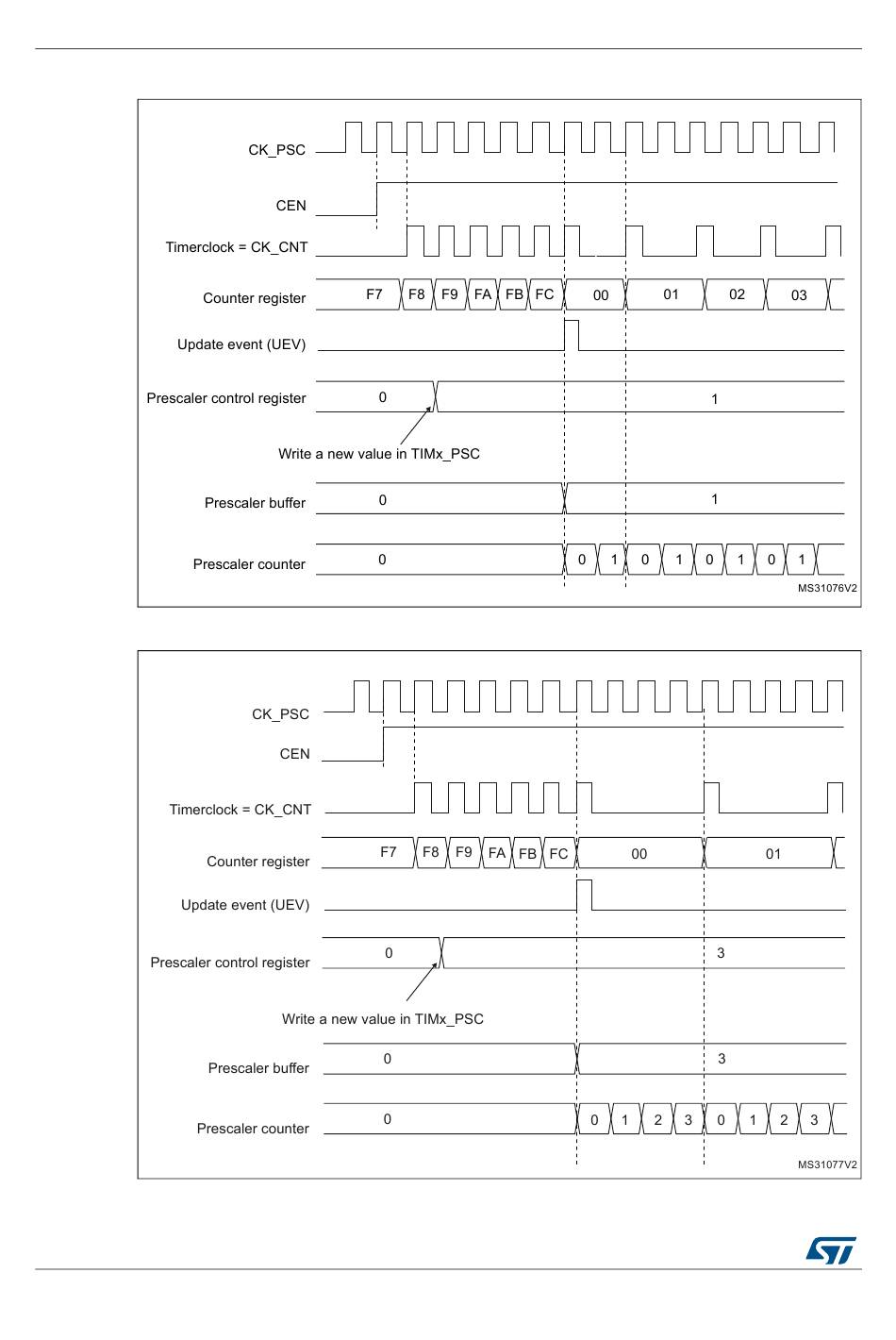

Figure 111. Counter timing diagram with prescaler division change from 1 to 2

Figure 112. Counter timing diagram with prescaler division change from 1 to 4

452/1328
RM0390 Rev 4
