Rexroth IndraDrive
E2061 Device overload prewarning
For HCS, HMS, HMD
For HMV01.1R
Cause
Incorrect value of P-0-0441, Overload warning
Overload of drive (e.g. due to too high infeed during
machining or too high acceleration to high speed)
Changes in mechanical system with regard to friction
and moved masses
DOK-INDRV*-GEN-**VRS**-WA01-EN-P
LSA Control S.L. www.lsa-control.com comercial@lsa-control.com (+34) 960 62 43 01
Supported by Firmware Variant:
Supported by Supply Unit:
The work load of the device has exceeded a threshold and a message is
generated that warns against overload which will occur if the load is not
reduced.
Devices with digital control are monitored by means of a permanently
processed temperature model. If the thermal work load approaches
100 % the continuous current limit is activated shortly after and the
warning E8057 Device overload, current limit active appears.
When the current is limited the torque/force is reduced which is not
wanted for machines and installations and can cause problems. A
warning is therefore output before this situation occurs.
The threshold value for the overload prewarning can be set in P-0-0441,
Overload warning. If the thermal work load exceeds this value the
E2061 warning is output. Useful values for P-0-0441, Overload warning
are at 80-90% so that there still is a little reserve capacity until the actual
thermal work load is reached (100%).
Note:
The warning can be deactivated by the value "100%" in
P-0-0441, Overload warning because in this case the fatal
warning E8057 Device overload, current limit active
warning is immediately generated!
The threshold value for the overload prewarning is fixed to 90%. If the
thermal work load exceeds this value the E2061 warning is output. This
threshold cannot be set and therefore the warning cannot be deactivated!
Remedy
Increase value of P-0-0441, Overload warning, if
necessary
Switch drive off and let it cool down. Check drive
dimensioning and command value profile
In the case of installations that have been run for a long
time, check drive conditions for changes in mechanical
system
See also Functional Description "Current Limitation"
E2061 - Attributes
Display:
E2061
Mess. no.:
E2061 (hex)
Warning Diagnostic Messages (Exxxx)
FWA-INDRV*-MPH02VRS-MS
FWA-INDRV*-MPB02VRS-MS
FWA-INDRV*-MPD02VRS-MS
HMV01
8-33
- Quick Links:
- Coded Diagnostic Drive Messages
- Error
Hide quick links:
Advertisement
Table of Contents
Need help?
Do you have a question about the Rexroth IndraDrive and is the answer not in the manual?
Questions and answers
Our machine in Rexroth drive installation total 20 nos machine so facing issue shortly 5 drive folty 8060 erro so how to do
Error 8060 on Bosch Rexroth IndraDrive indicates an overcurrent in the power section. To resolve this issue for five machines, follow these steps for each machine:
1. Check the Load and Connections – Verify that the motor and power connections are correct and not causing excessive current draw.
2. Inspect the Power Section – Look for any visible damage or overheating signs in the power section.
3. Restart the System – Power off the drive, wait for the DC bus to discharge below 50V, and restart.
4. Adjust Parameters if Needed – Ensure that the drive’s current limits and motor settings are correctly configured.
5. Replace Faulty Components – If the issue persists, the power section may be defective and require replacement.
Repeat these steps for all five machines to ensure proper operation.
This answer is automatically generated
What is solution of 2110 fault in rexroth drive
The solution for the F2110 fault in Bosch Rexroth IndraDrive is:
1. If the failure occurs sporadically (firmware error), clear the error and contact the service department for a firmware update.
2. If the error occurs repeatedly, it indicates defective hardware. In this case, the control section or the entire device must be replaced.
3. Only Rexroth service engineers or specially trained users are allowed to replace the control section.
4. The procedure for replacing the entire drive controller is described in the Project Planning Manual for the power section.
This answer is automatically generated
The engine moves in manual mode but does not work in automatic mode. The error code is E2074. What should I do?
Error code F2074 indicates a defective motor encoder. To resolve this issue:
1. Check the position data reference – If the position data reference is incorrect, the encoder is defective.
2. Replace the motor or motor encoder – A faulty encoder can prevent movement in automatic mode.
3. Send the motor to the manufacturer’s service department for inspection.
If the issue persists, consult the service department for further assistance.
This answer is automatically generated

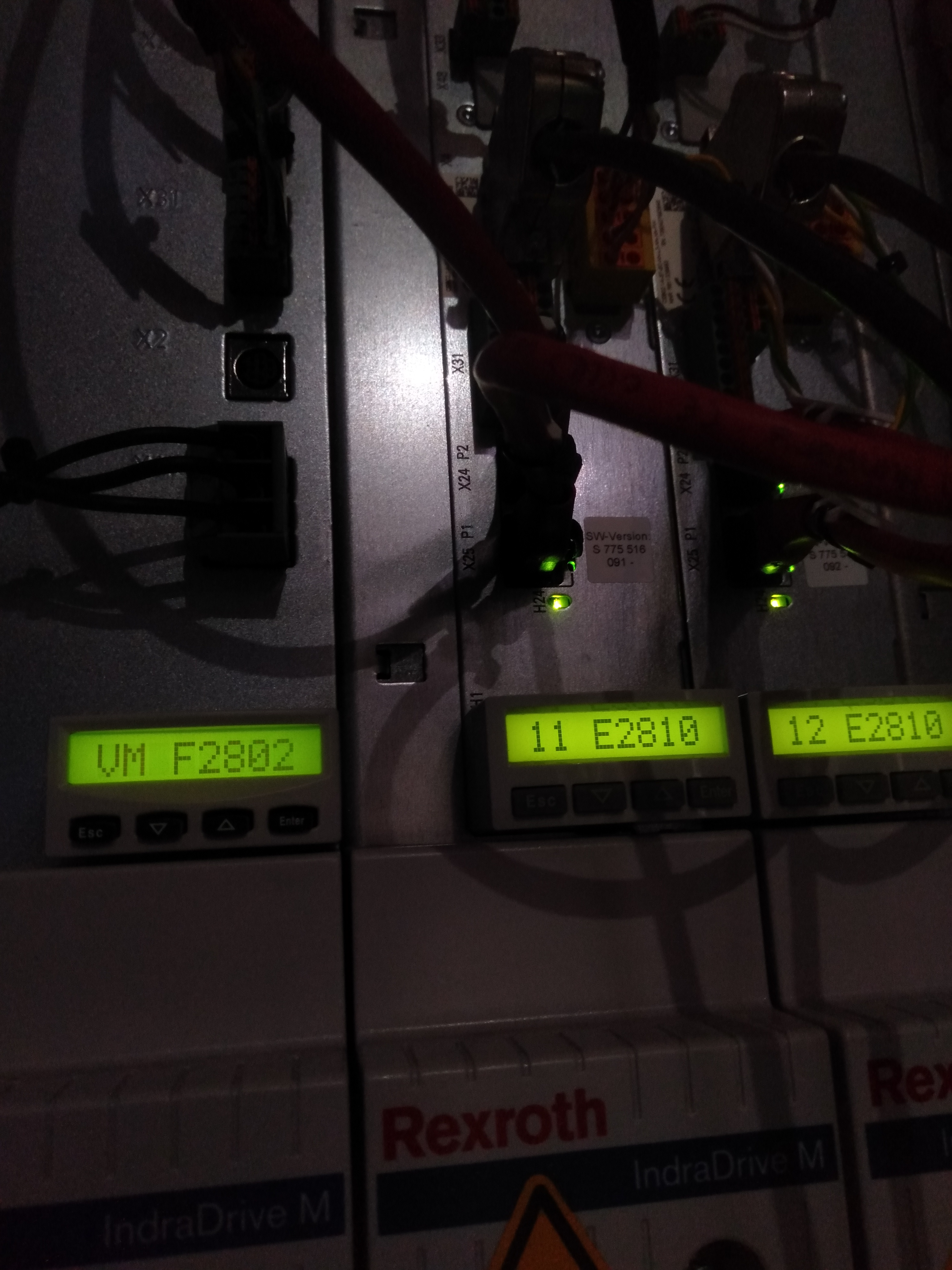

Please help me with the problem of the VM F2802 and E2810 errors on the Rexroth Indradrive M
