Table 41. Spi Mode Fault Trigger Conditions; Table 42. Spi Master Mode Sel Pin Status; Figure 105. Spi Multi-Master Slave Environment - Holtek HT32F52220 User Manual

32-Bit Arm ® Cortex ® -M0+ MCU
HT32F52220/HT32F52230
Master

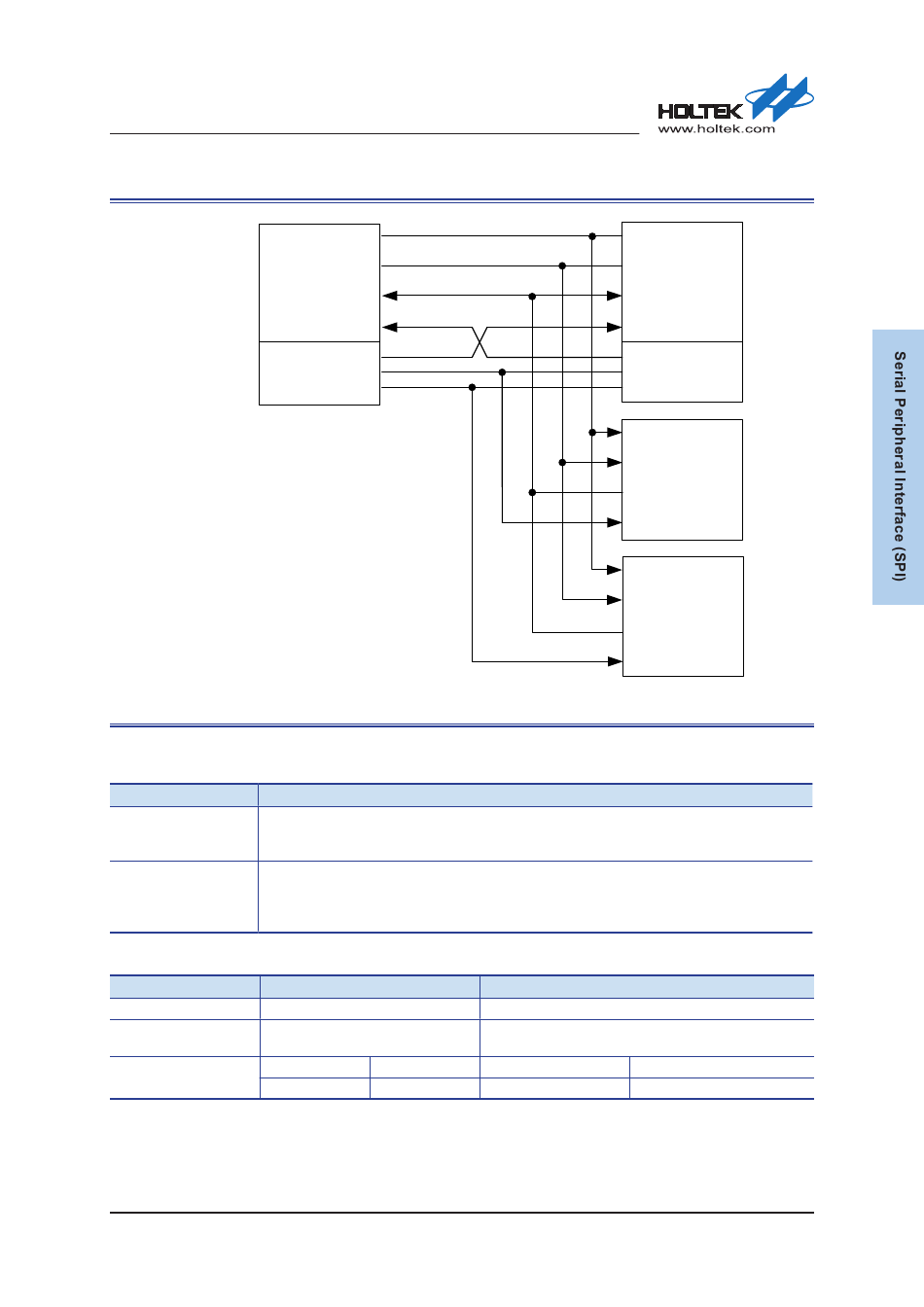

Figure 105. SPI Multi-Master Slave Environment

Table 41. SPI Mode Fault Trigger Conditions

Mode fault
1. SPI Master mode.
Trigger condition 2. SELOEN = 0 in the SPICR0 register – SEL pin is configured to be the input mode.
3. SEL signal changes to an active level when driven by the external SPI master.
1. Mode fault flag is set.
2. The SPIEN bit in the SPICR0 register is reset. This disables the SPI interface and
SPI behavior
blocks all output signals from the device.
3. The MODE bit in the SPICR1 register is reset. This forces the device into slave mode.

Table 42. SPI Master Mode SEL Pin Status

SEL as Input – SELOEN = 0
Multi-master Support
Use Another GPIO to replace the
SPI SEL control signal
SEL pin function
Case 1
Continuous transfer
Not supported
Case 1: SEL signal must be inactive between each data transfer.
Case 2: SEL signal will not to be active until the last data frame has finished.
Note: When the SPI is in the slave mode, the SEL signal is always an input and not affected by the SELOEN bit in
the SPICR0 register.
