32-Bit Arm
®
Cortex
®
-M0+ MCU
HT32F52220/HT32F52230
Center-Align Counting
In the center-aligned counting mode, the counter counts up from 0 to the counter-reload value
and then counts down to 0 alternatively. The Timer module generates an overflow event when the
counter counts to the counter-reload value in the up-counting mode and generates an underflow
event when the counter counts to 0 in the down-counting mode. The counting direction bit DIR in
the CNTCFR register is read-only and indicates the counting direction when in the center-align
mode. The counting direction is updated by hardware automatically.
Setting the UEVG bit in the EVGR register will initialize the counter value to 0 irrespective of
whether the counter is counting up or down in the center-align counting mode.
The UEVIF bit in the INTSR register can be set to 1 when an overflow or underflow event or both
of them occur according to the CMSEL field setting in the CNTCFR register.
CK_PSC
CNT_EN
CK_CNT
CNTR
CRR
CRR Shadow Register
Counter Overflow
Counter Underflow
Update Event Flag

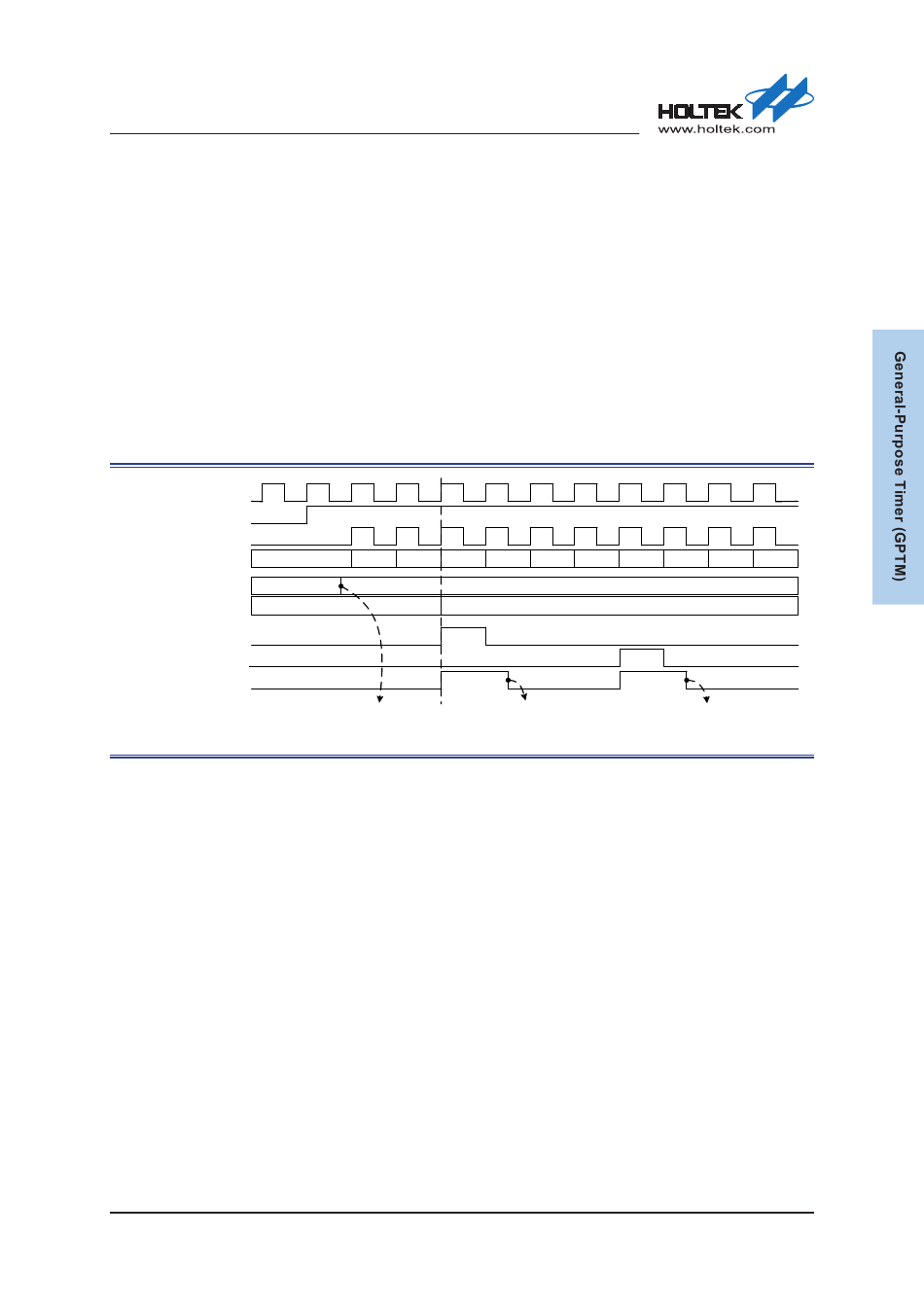

Figure 32. Center-aligned Counting Example
Rev. 1.10
F2
F3
F4
4
F5
F5
Write a new value
179 of 366
3
2
1
0
4
4
Software clearing
1
2
3
Software clearing
November 09, 2018
