Channel Controller

The SCTM channel can be used as the capture input or compare match output. The capture input or
compare match output channel is composed of a preload register and a shadow register. The Data
access of the APB bus is always through the read/write preload register.
In the input capture mode, the counter value is captured into the CHCCR shadow register first and
then transferred into the CHCCR preload register when the capture event occurs.
In the compare match output mode, the contents of the CHCCR preload register is copied into the
associated shadow register and the counter value is then compared with the register value.
CHPSC
Read CHCCR

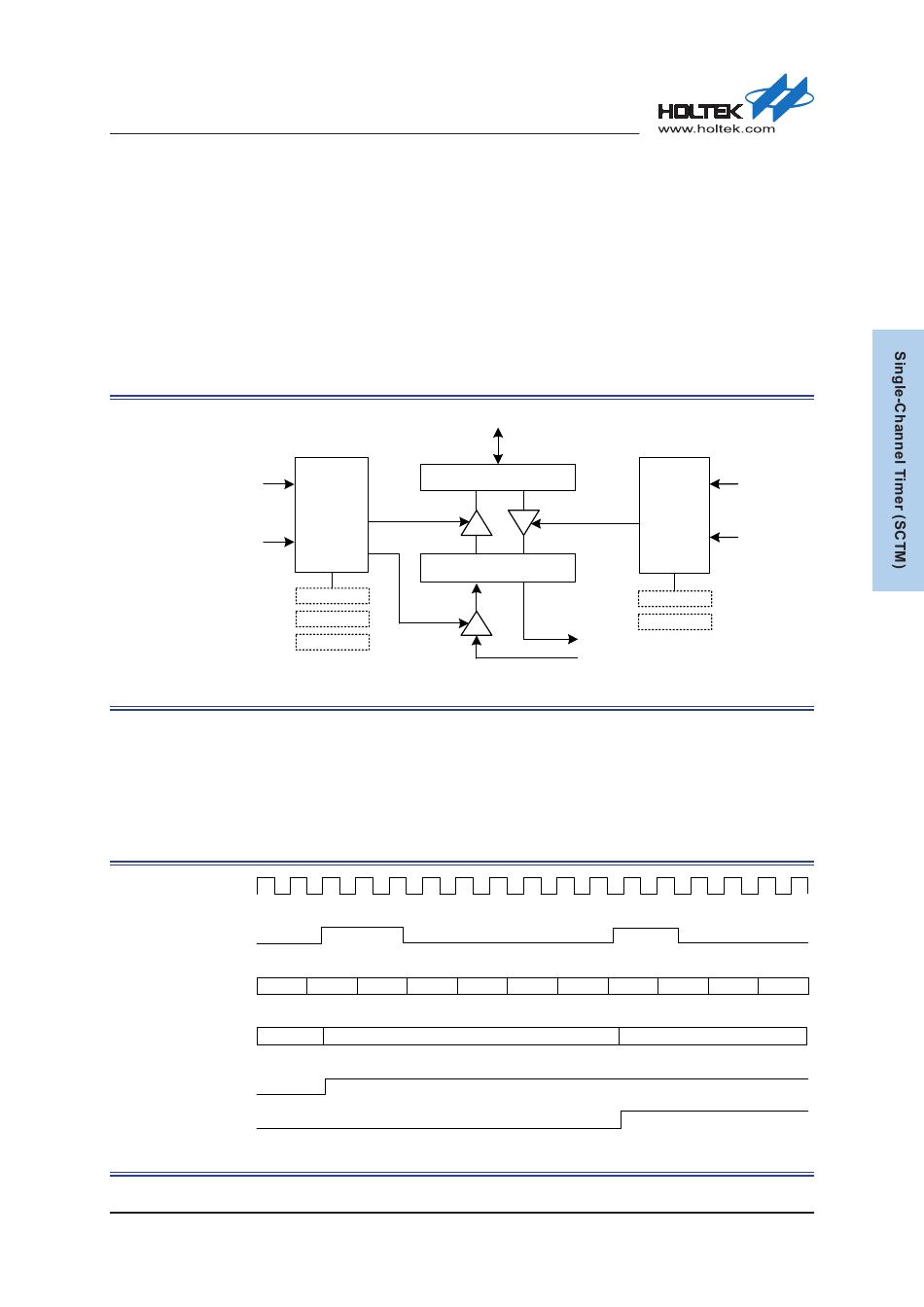

Figure 71. Capture/Compare Block Diagram

Capture Counter Value Transferred to CHCCR
When the channel is used as a capture input, the counter value is captured into the Channel
Capture/Compare Register (CHCCR) when an effective input signal transition occurs. Once the
capture event occurs, the CHCCIF flag in the INTSR register is set accordingly. If the CHCCIF bit
is already set, i.e., the flag has not yet been cleared by software and another capture event on this
channel occurs, the corresponding channel Over-Capture flag, named CHOCF, will be set.
f
CLKIN
SCTM_CH
25
CNTR
CHCCR
CHCCIF
CHOCF

Figure 72. Input Capture Mode
