Power Control Unit (PWRCU)

Introduction

The power consumption can be regarded as one of the most important issues for many embedded
system applications. Accordingly the Power Control Unit, PWRCU, provides many types of power
saving modes such as Sleep, Deep-Sleep1, Deep-Sleep2, and Power-Down modes. These modes
reduce the power consumption and allow the application to achieve the best trade-off between the
conflicting demands of CPU operating time, speed and power consumption. The dash line in the
Figure 11 indicates the power supply source of two digital power domains.
V
DD
nRST
WAKEUP
LSI
LDO: Voltage Regulator
DMOS: Depletion MOS

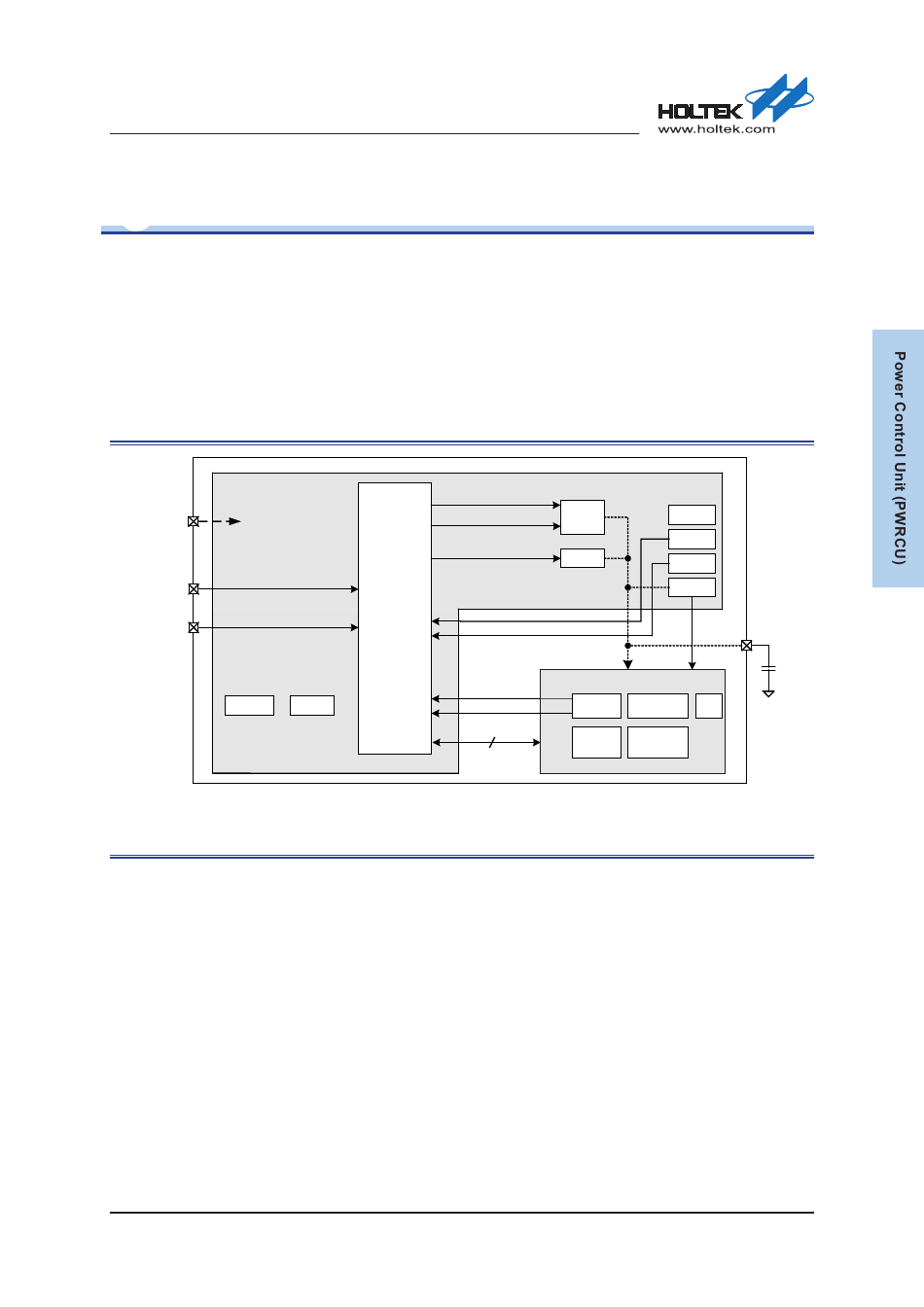

Figure 11. PWRCU Block Diagram

Rev. 1.10
WKUP1
PWR_CTRL
WKUP2
HSE
LVD: Low Voltage Detector
POR/PDR: Power On Reset/Power Down Reset
