Input Stage

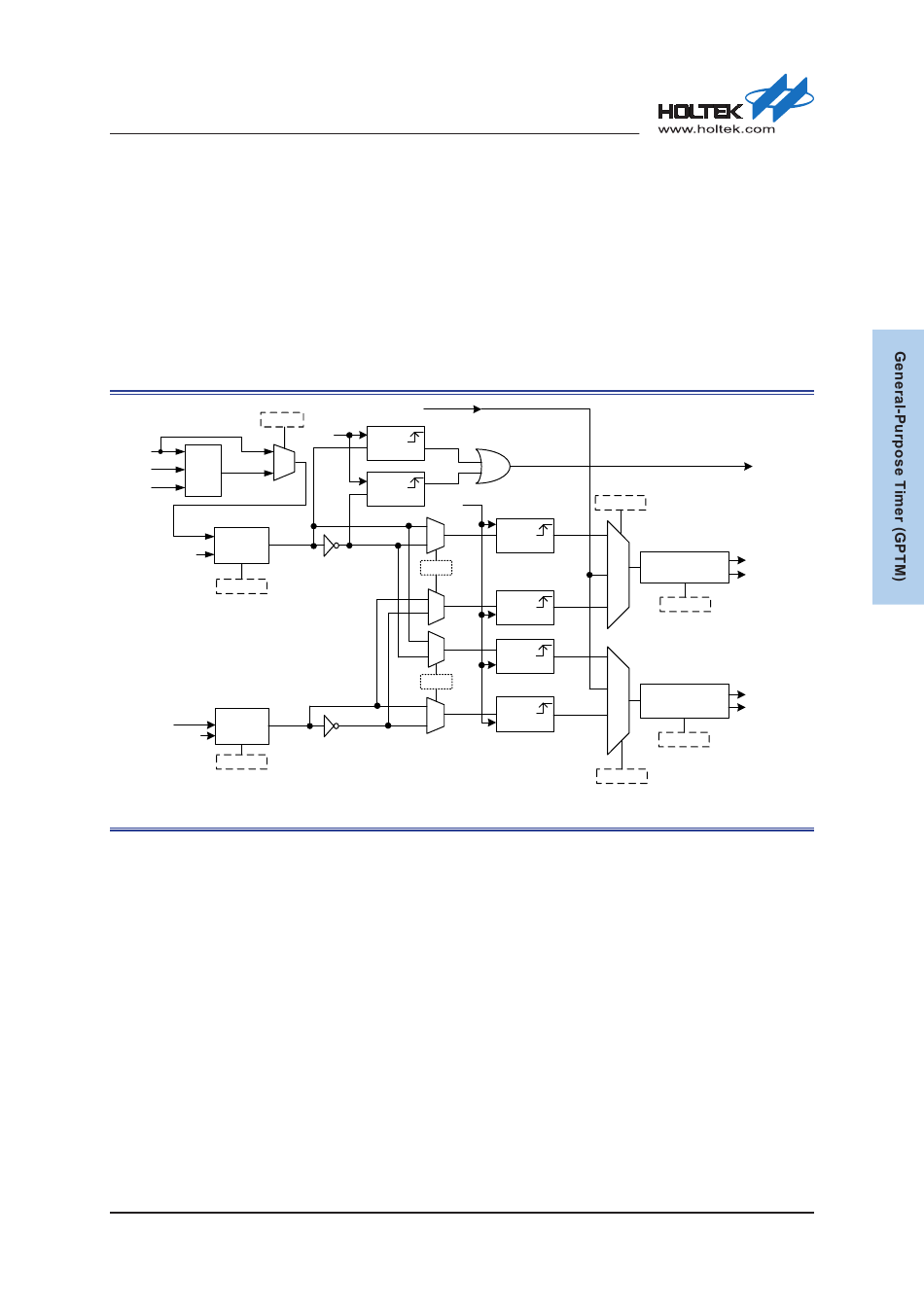

The input stage consists of a digital filter, a channel polarity selection, edge detection and a
channel prescaler. The channel 0 input signal (TI0) can be chosen to come from the GT_CH0
signal or the Excusive-OR function of the GT_CH0, GT_CH1 and GT_CH2 signals. The channel
input signal (TIx) is sampled by a digital filter to generate a filtered input signal TIxFP. Then the
channel polarity and the edge detection block can generate a TIxS0ED or TIxS1ED signal for the
input capture function. The effective input event number can be set by the channel input prescaler
register (CHxPSC).
