Input Stage

The input stage consists of a digital filter, a channel polarity selection, edge detection and a channel
prescaler. The channel input signal (TI) is sampled by a digital filter to generate a filtered input
signal TIFP. Then the channel polarity and the edge detection block can generate a TISED signal
for the input capture function. The effective input event number can be set by the channel input
prescaler register (CHPSC).
TI
SCTM_CH
fsampling

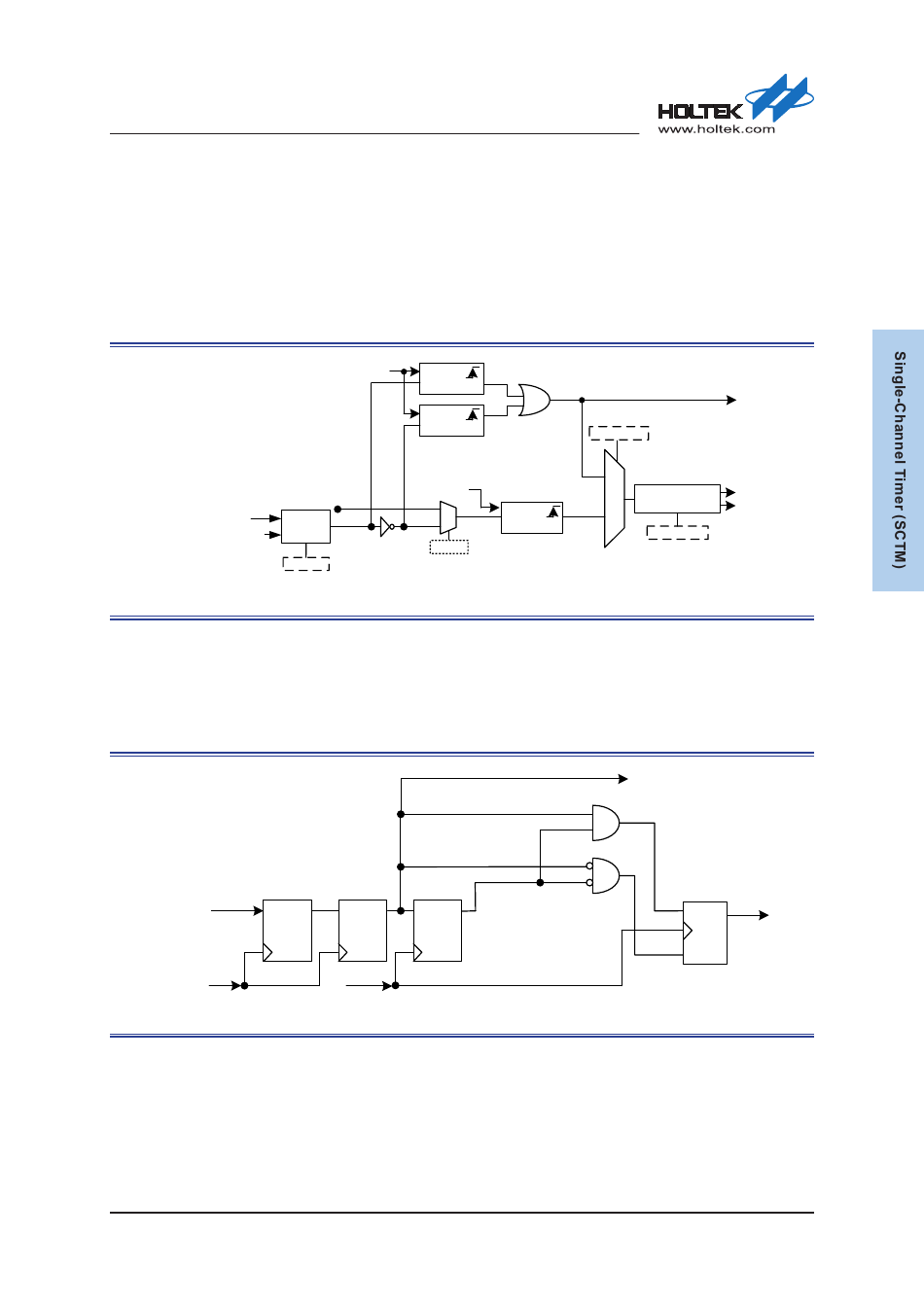

Figure 73. Channel Input Stages

Digital Filter
The digital filters are embedded in the channel input stage. The digital filter in the SCTM is an
N-event counter where N refers to how many valid transitions are necessary to output a filtered
signal. The N value can be 0, 2, 4, 5, 6 or 8 according to the user selection for each filter.
Digital Filter (N=2)
TI
D
CK
f
SYSTEM

Figure 74. TI Digital Filter Diagram with N = 2
