Patch pattern data
output
F-7-22
PS2: patch image read sensor
DC CON: DC controller
MN CON: main controller

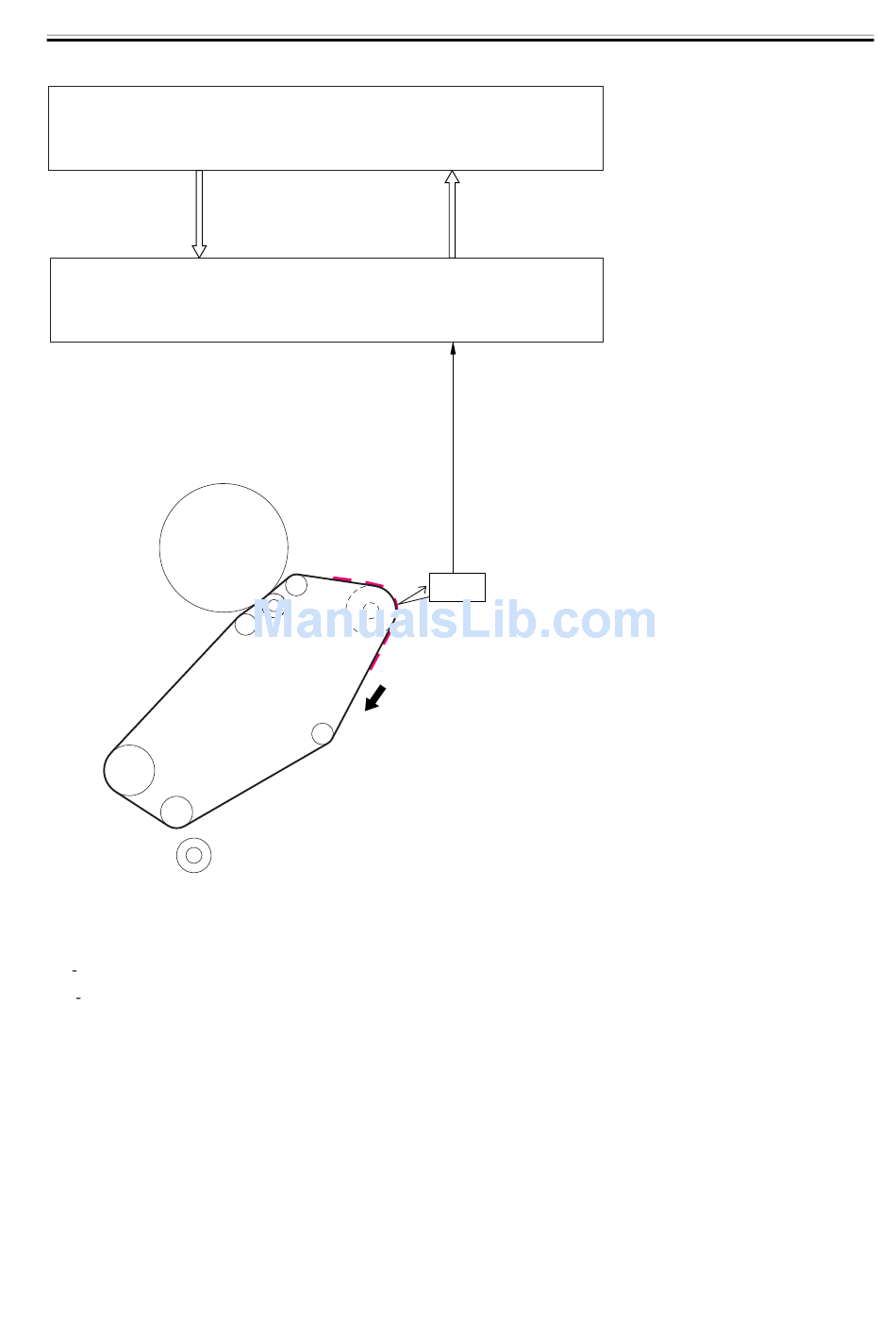

<Flow of Operation>
The following shows the flow of operation that takes place during the control:
MN-CON
Density data
input
DC-CON
PS2
