HARDWARE INTERFACE

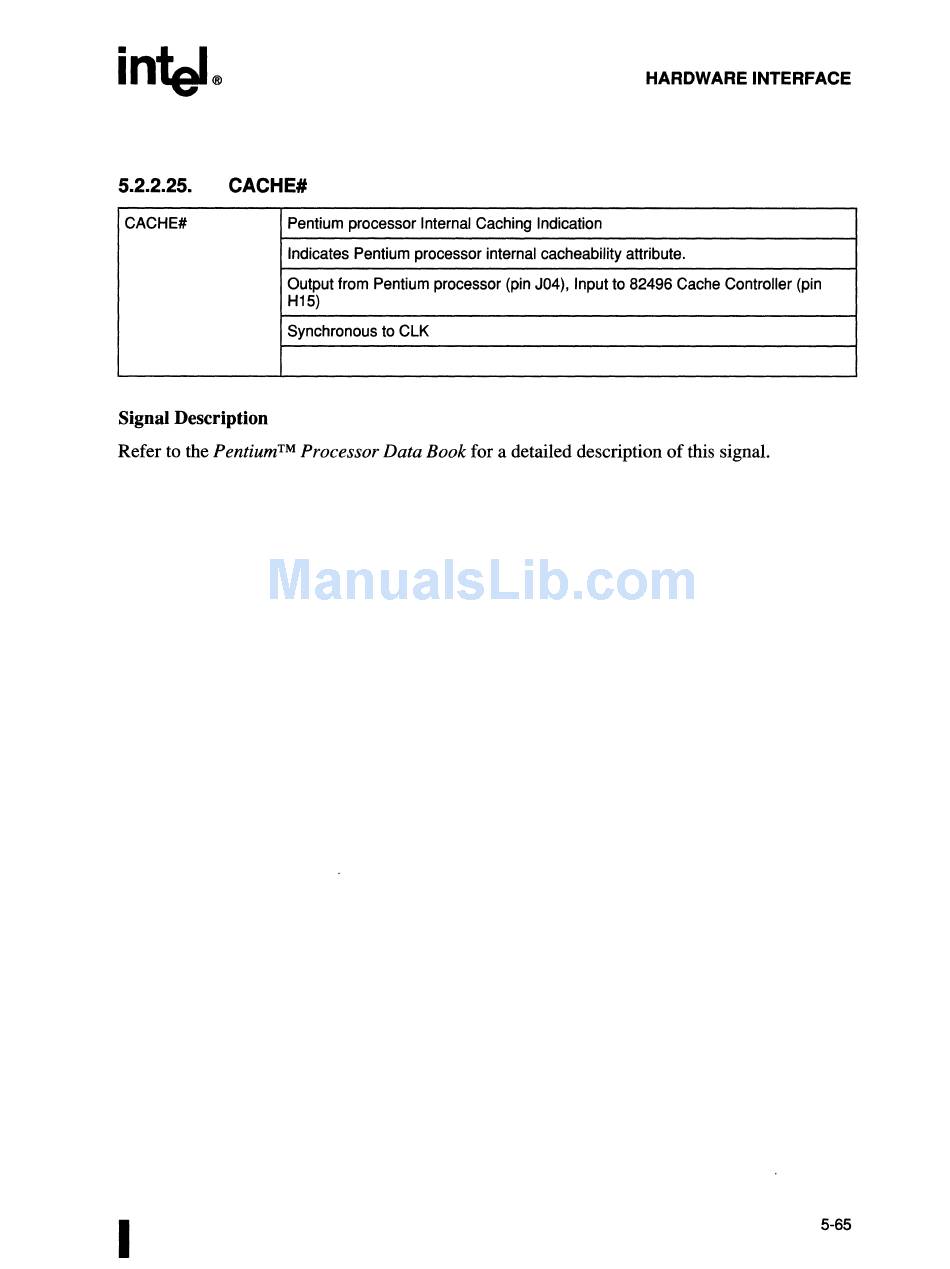

5.2.2.25.
CACHE#
CACHE# Pentium processor Internal Caching Indication
Indicates Pentium processor internal cacheability attribute.
Output from Pentium processor (pin J04), Input to 82496 Cache Controller (pin
H15)
Synchronous to ClK
Signal Description
Refer to the Pentium™ Processor Data Book for a detailed description of this signal.
I
5-65
