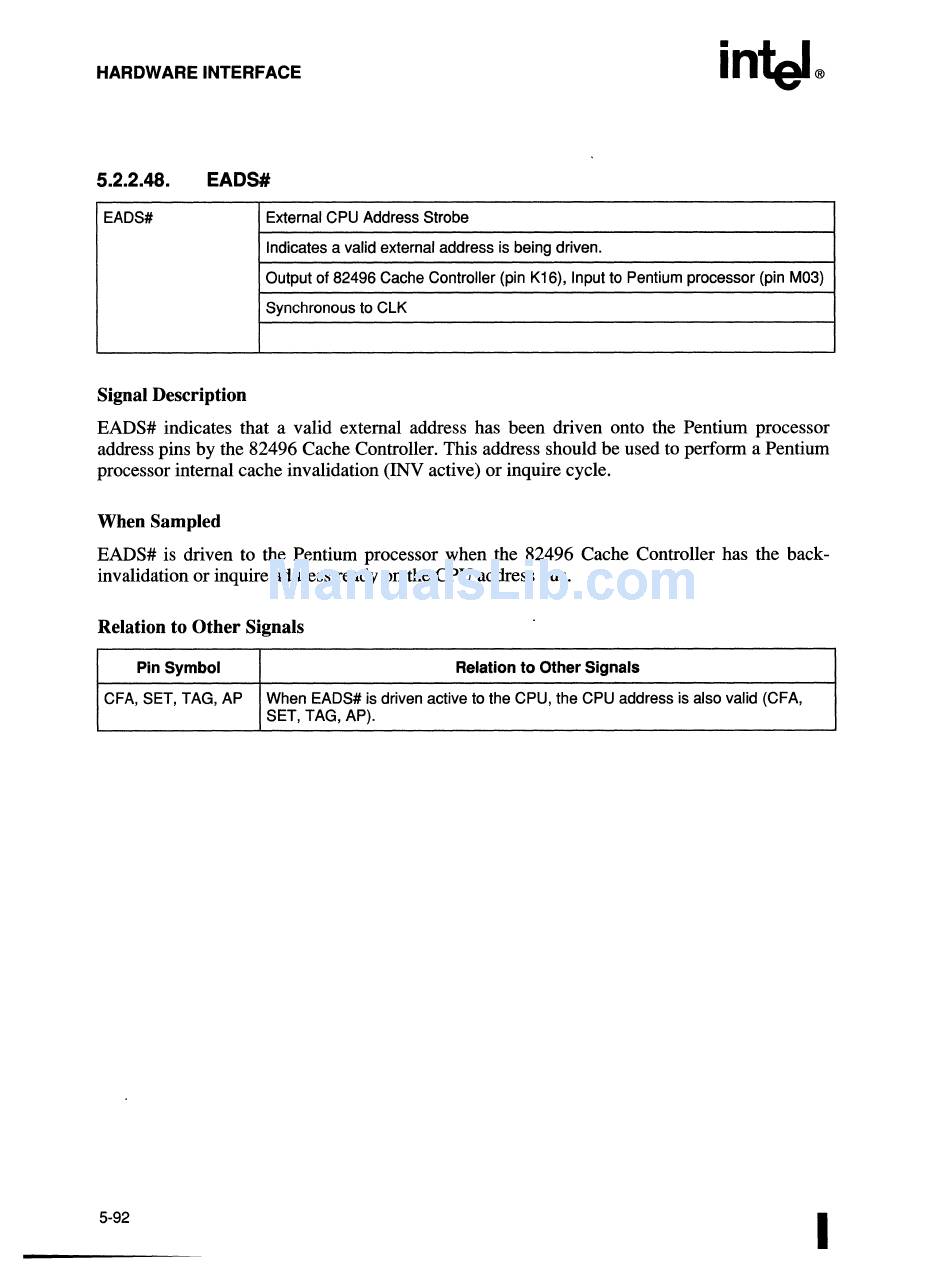

HARDWARE INTERFACE
5.2.2.48.
EADS#
EADS# External CPU Address Strobe
Indicates a valid external address is being driven.
Output of 82496 Cache Controller (pin K16), Input to Pentium processor (pin M03)
Synchronous to ClK
Signal Description
EADS# indicates that a valid external address has been driven onto the Pentium processor
address pins by the 82496 Cache Controller. This address should be used to perform a Pentium
processor internal cache invalidation (!NV active) or inquire cycle.
When Sampled
EADS# is driven to the Pentium processor when the 82496 Cache Controller has the back-
invalidation or inquire address ready on the CPU address bus.
Relation to Other Signals
Pin Symbol Relation to Other Signals
CFA,SET,TAG,AP When EADS# is driven active to the CPU, the CPU address is also valid (CFA,
SET, TAG, AP).
