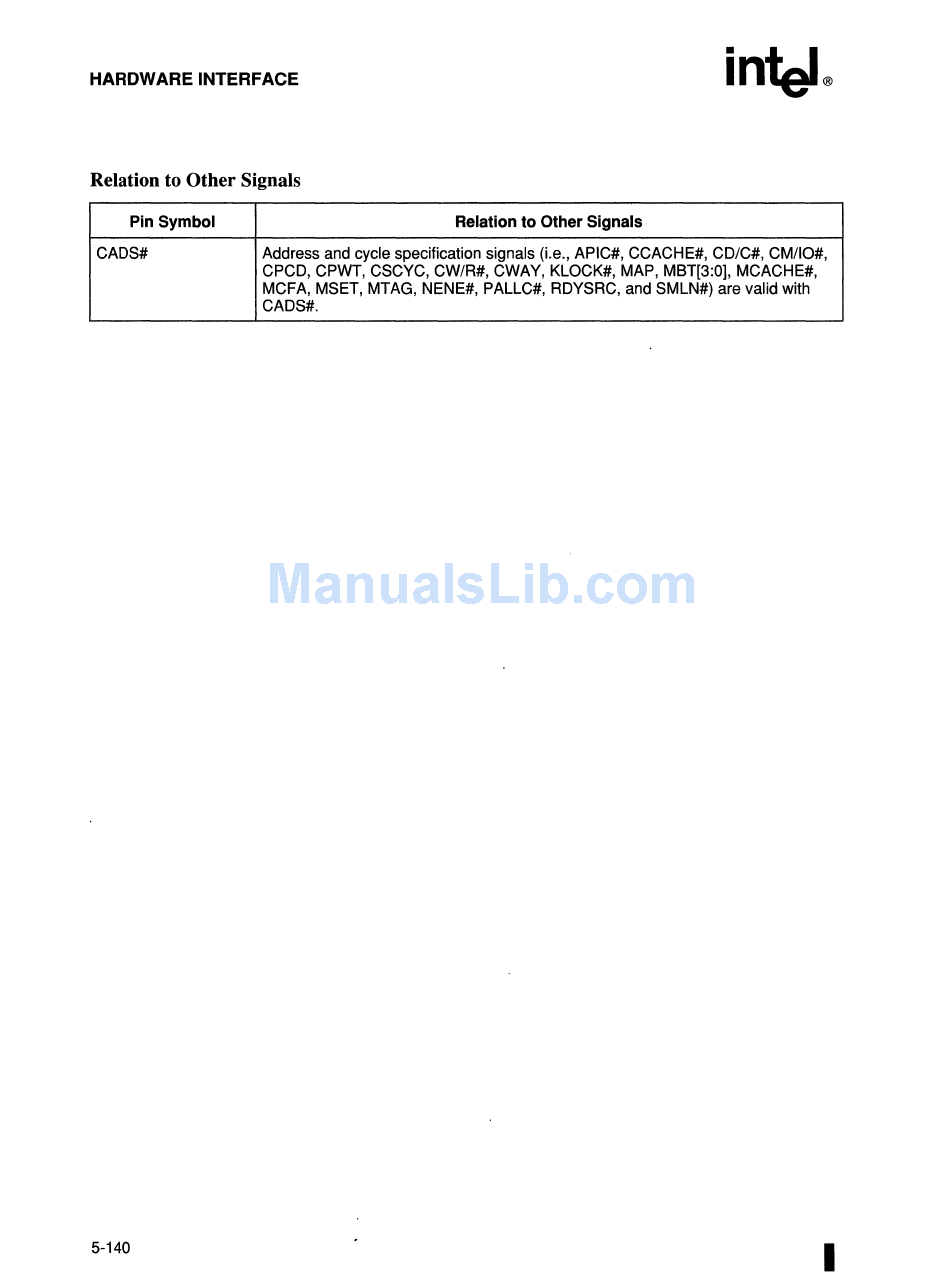

HARDWARE INTERFACE
Relation to Other Signals
Pin Symbol Relation to Other Signals
CADS# Address and cycle specification signals (Le., APIC#, CCACHE#, CD/C#, CM/IO#,
CPCD, CPWT, CSCYC, CW/R#, CWAY, KLOCK#, MAP, MBT[3:0], MCACHE#,
MCFA, MSET, MTAG, NENE#, PALLC#, RDYSRC, and SMLN#) are valid with
CADS#.
5-140
