Intel event-control chmos single-chip 8-bit microcontroller specification sheet

Advertisement

Quick Links

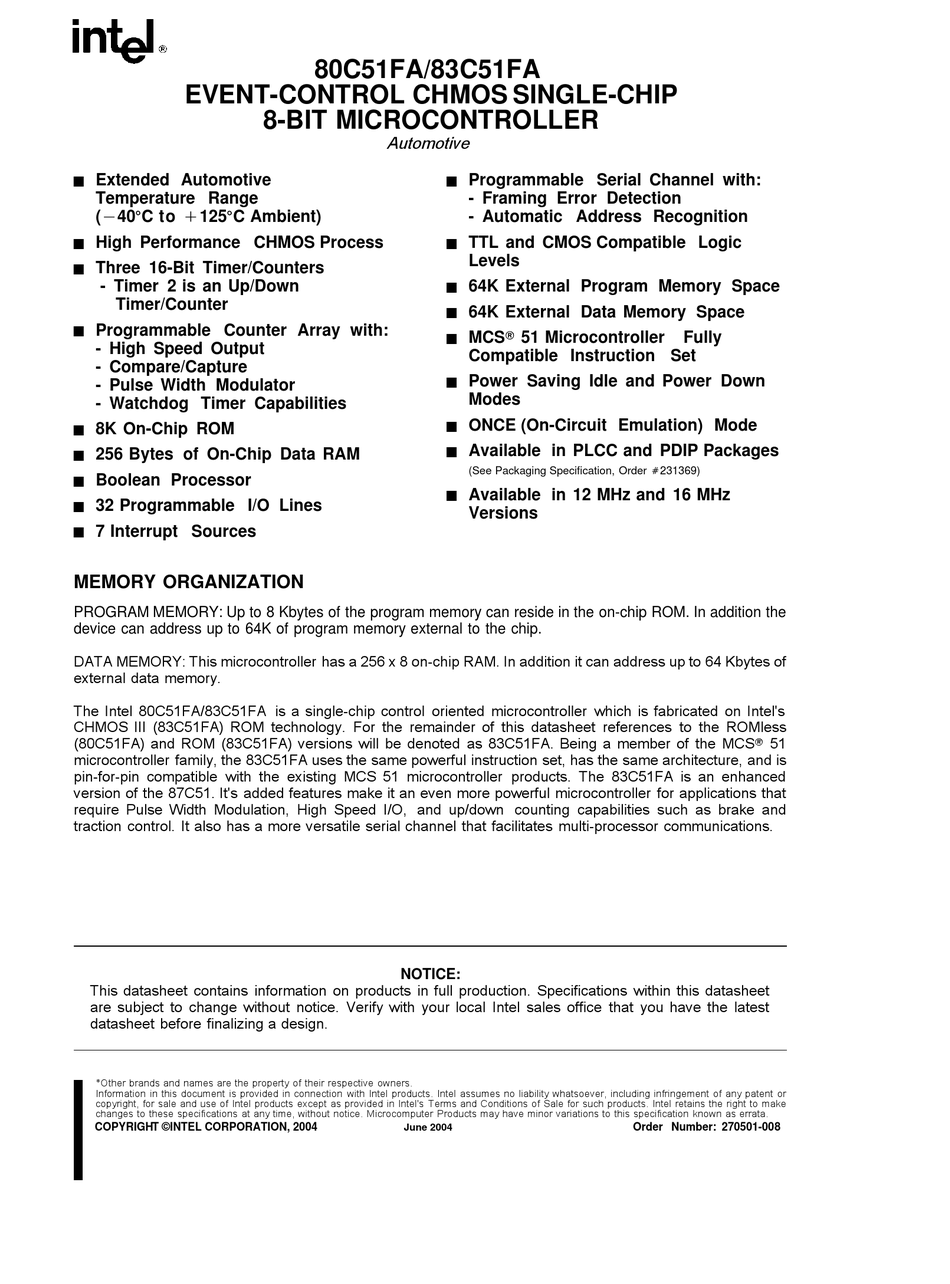

EVENT-CONTROL CHMOS SINGLE-CHIP
Extended Automotive
Y
Temperature Range
(
40 C to
125 C Ambient)
b
a
High Performance CHMOS Process
Y
Three 16-Bit Timer/Counters
Y
- Timer 2 is an Up/Down
Timer/Counter
Programmable Counter Array with:
Y
- High Speed Output
- Compare/Capture
- Pulse Width Modulator
- Watchdog Timer Capabilities
8K On-Chip ROM
Y
256 Bytes of On-Chip Data RAM
Y
Boolean Processor
Y
32 Programmable I/O Lines
Y
7 Interrupt Sources
Y

MEMORY ORGANIZATION

PROGRAM MEMORY: Up to 8 Kbytes of the program memory can reside in the on-chip ROM. In addition the
device can address up to 64K of program memory external to the chip.
DATA MEMORY: This microcontroller has a 256 x 8 on-chip RAM. In addition it can address up to 64 Kbytes of
external data memory.
The Intel 80C51FA/83C51FA is a single-chip control oriented microcontroller which is fabricated on Intel's
CHMOS III (83C51FA) ROM technology. For the remainder of this datasheet references to the ROMless
(80C51FA) and ROM (83C51FA) versions will be denoted as 83C51FA. Being a member of the MCS
microcontroller family, the 83C51FA uses the same powerful instruction set, has the same architecture, and is
pin-for-pin compatible with the existing MCS 51 microcontroller products. The 83C51FA is an enhanced
version of the 87C51. It's added features make it an even more powerful microcontroller for applications that
require Pulse Width Modulation, High Speed I/O, and up/down counting capabilities such as brake and
traction control. It also has a more versatile serial channel that facilitates multi-processor communications.
This datasheet contains information on products in full production. Specifications within this datasheet
are subject to change without notice. Verify with your local Intel sales office that you have the latest
datasheet before finalizing a design.
Other brands and names are the property of their respective owners.
Information in this document is provided in connection with Intel products. Intel assumes no liability whatsoever, including infringement of any patent or
copyright, for sale and use of Intel products except as provided in Intel's Terms and Conditions of Sale for such products. Intel retains the right to make
changes to these specifications at any time, without notice. Microcomputer Products may have minor variations to this specification known as errata.
COPYRIGHT ©INTEL CORPORATION, 2004
80C51FA/83C51FA
8-BIT MICROCONTROLLER
Automotive
NOTICE:
June 2004
Programmable Serial Channel with:
Y
- Framing Error Detection
- Automatic Address Recognition
TTL and CMOS Compatible Logic
Y
Levels
64K External Program Memory Space
Y
64K External Data Memory Space
Y
MCS 51 Microcontroller
Y
Compatible Instruction Set
Power Saving Idle and Power Down
Y
Modes
ONCE (On-Circuit Emulation) Mode
Y
Available in PLCC and PDIP Packages
Y
(See Packaging Specification, Order
Available in 12 MHz and 16 MHz
Y
Versions
Fully
231369)
51
Order Number: 270501-008

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 80C51FA and is the answer not in the manual?

Questions and answers

Summary of Contents for Intel 80C51FA

  • Page 1: Memory Organization

    Information in this document is provided in connection with Intel products. Intel assumes no liability whatsoever, including infringement of any patent or copyright, for sale and use of Intel products except as provided in Intel's Terms and Conditions of Sale for such products. Intel retains the right to make changes to these specifications at any time, without notice.
  • Page 2 AUTOMOTIVE 80C51FA/83C51FA 270501 ±1 Figure 1. 83C51FA Block Diagram...
  • Page 3 80C51FA/83C51FA PRODUCT OPTIONS Intel’s extended and automotive temperature range products are designed to meet the needs of those applications whose operating requirements exceed commercial standards. With the commercial standard temperature range, operational characteristics are guaranteed over the Figure 2. MCS 51 Microcontroller Product Family Nomenclature ®...
  • Page 4: Pin Descriptions

    AUTOMOTIVE 80C51FA/83C51FA PIN DESCRIPTIONS : Supply voltage. : Circuit ground. Port 0: Port 0 is an 8-bit, open drain, bidirectional I/O port. As an output port each pin can sink several LS TTL inputs. Port 0 pins that have 1's written to them float, and in that state can be used as high-im- pedance inputs.
  • Page 5: Oscillator Characteristics

    When the 83C51FA is executing code from external Program Memory, PSEN is activated twice each ma- chine cycle, except that two PSEN activations are skipped during each access to external Data Memo- AUTOMOTIVE 80C51FA/83C51FA : External Access enable. EA must be EA/V strapped to V...
  • Page 6: Idle Mode

    AUTOMOTIVE 80C51FA/83C51FA Figure 5. External Clock Drive Configuration IDLE MODE The user's software can invoke the Idle Mode. When the microcontroller is in this mode, power consump- tion is reduced. The Special Function Registers and the onboard RAM retain their values during Idle, but the processor stops executing instructions.
  • Page 7: Absolute Maximum Ratings

    Logical 0 Input Current (Ports 1, 2 and 3) Input leakage Current (Port 0) AUTOMOTIVE 80C51FA/83C51FA NOTICE: This is a production data sheet. The specifi- cations are subject to change without notice. WARNING: Stressing the device beyond the ``Absolute Maximum Ratings'' may cause permanent damage.
  • Page 8 If I exceeds the test condition, V may exceed the related specification. Pins are not guaranteed to sink current greater than the listed test conditions. 6. Contact Intel for design-in information. 40 C to 125 C; V 10%; V on ALE and PSEN to drop below the 0.9 V for Power Down is 2.0V.
  • Page 9 TCLCH TCHCL 5 ns Figure 8. I Test Condition Idle Mode. All other pins disconnected. Figure 10. Clock Signal Waveform for I AUTOMOTIVE 80C51FA/83C51FA 270501 ±7 TCLCH TCHCL 5 ns Figure 7. I Test Condition, Active Mode All other pins disconnected.
  • Page 10 AUTOMOTIVE 80C51FA/83C51FA EXPLANATION OF THE AC SYMBOLS Each timing symbol has 5 characters. The first char- acter is always a `T' (stands for time). The other characters, depending on their positions, stand for the name of a signal or the logical status of that signal.
  • Page 11 EXTERNAL PROGRAM MEMORY READ CYCLE EXTERNAL DATA MEMORY READ CYCLE EXTERNAL DATA MEMORY WRITE CYCLE AUTOMOTIVE 80C51FA/83C51FA 270501 ±12 270501 ±13 270501 ±14...
  • Page 12 AUTOMOTIVE 80C51FA/83C51FA SERIAL PORT TIMING-SHIFT REGISTER MODE 40 C to Test Conditions: Symbol Parameter Serial Port Clock Cycle Time XLXL Output Data Setup to Clock QVXH Rising Edge Output Data Hold after XHQX Clock Rising Edge Input Data Hold After Clock...
  • Page 13: Datasheet Revision History

    DC table. 3. Corrected TQVWH specification (from TTCLCL 4. Added note on external clock capacitance loading. 5. Changed the title to 80C51FA/83C51FA Event-Control CHMOS Single-Chip 8-Bit Microcontroller. 6. Added pin count to Figure 1. 7. Changed I 10 μA.
