Polycom RMX 1500/2000/4000 Administrator's Guide
8
9

Defining the Microsoft SIP Server in the IP Network Service

To enable the registration of the conferencing entities the SIP Server Type must be set to
Microsoft and the Office Communication Server or Lync Server properties in the IP Network
Service - SIP Servers dialog box.
For more details, see "Configuring the RMX IP Network Service" on page H-36.

Enabling Registration in the Conference Profile

Registration of conferencing entities such as ongoing conferences, Meeting Rooms, Entry
Queues, SIP Factories and Gateway Sessions with SIP servers is done per conferencing entity.
This allows better control on the number of entities that register with each SIP server.
H-50

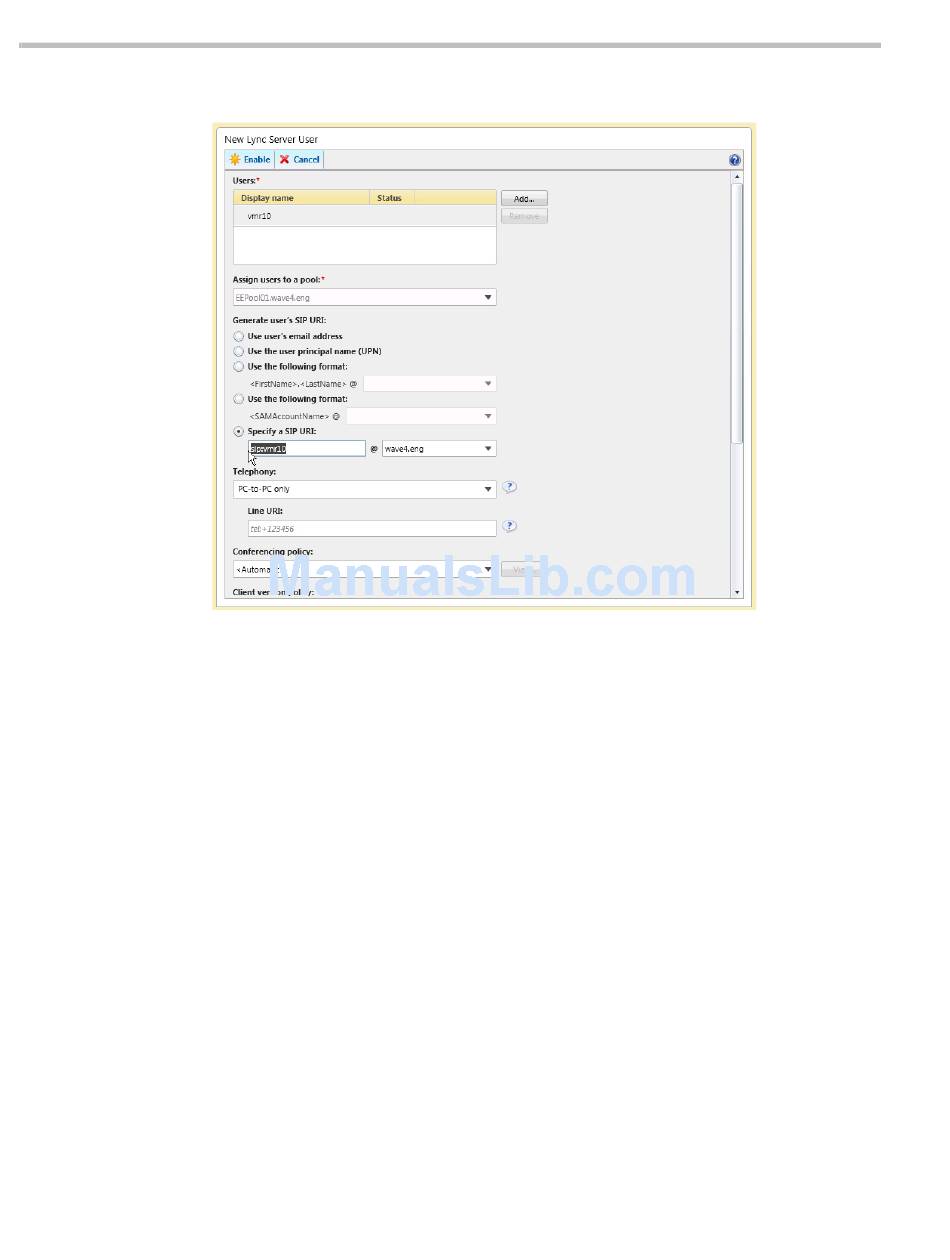

Select the following parameters:
In Assign users to a pool field, select the required pool.
—
— In the Generate user SIP URI, define the SIP URI of the conferencing entity using one
of the following methods:
• Select the Specify a SIP URI option and enter the conferencing entity user
portion of SIP URI defined in the active directory. This SIP URI must match the
conferencing entity Routing Name configured in RMX. For example, for the
meeting room account sip:vmr10@wave4.eng, use only the vmr10 portion of
the address.
or
• Select the Use the user principal name (UPN) option.
Click the Enable button.
The selected user appears as enabled in the User Search pane.
Polycom, Inc.
