Auto Layout Configuration; Customizing The Default Auto Layout - Polycom RMX 1500 Administrator's Manual

4
5
For flag changes to take effect, reset the MCU. For more information see "Resetting the RMX" on
page 19-104.
To delete a flag:
1
2
3

Auto Layout Configuration

The Auto Layout option lets the RMX automatically select the conference video layout based
on the number of participants currently connected to the conference. You can modify the
default selection of the conference video layout to customize it to your conferencing
preferences.

Customizing the Default Auto Layout

The default Auto Layout is controlled by 13 flags:
PREDEFINED_AUTO_LAYOUT_0, ... , PREDEFINED_AUTO_LAYOUT_12
Each of the 11 Auto Layout flags can be left at its default value, or set to any of the Possible
Values listed in Table 19-5.
The flag that controls the Auto Layout you wish to modify must be added to the System
Configuration file. For more information see "Modifying System Flags" on page 19-4.

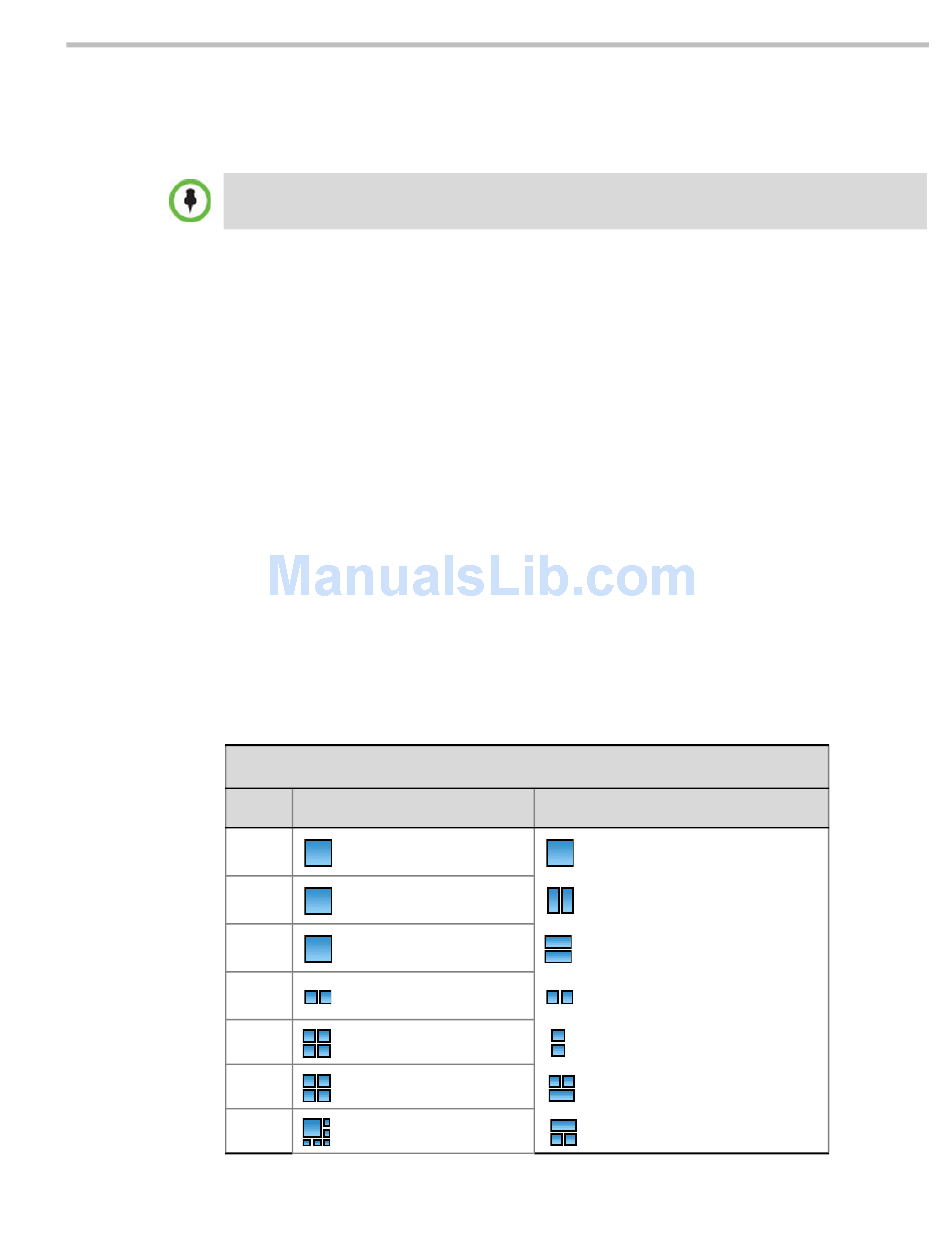

Table 19-5
Flag Name:
Polycom, Inc.
Click OK to close the New Flag dialog box.
The new flag is added to the flags list.
Click OK to close the System Flags dialog box.
In the System Flags dialog box, select the flag to delete and click the Delete Flag button.
In the confirmation message box, click Yes to confirm.
Click OK to close the System Flags dialog box.
Flags: PREDEFINED_AUTO_LAYOUT_0,...,10
PREDEFINED_AUTO_LAYOUT_
n Default Value
0
CP_LAYOUT_1X1
1
CP_LAYOUT_1X1
2
CP_LAYOUT_1X1
3
CP_LAYOUT_1x2VER
4
CP_LAYOUT_2X2
5
CP_LAYOUT_2X2
6
CP_LAYOUT_1P5
Chapter 19-RMX Administration and Utilities
n
(n = Number of Participants)
Possible Values
CP_LAYOUT_1X1
CP_LAYOUT_1X2
CP_LAYOUT_1X2HOR
CP_LAYOUT_1X2VER
CP_LAYOUT_2X1
CP_LAYOUT_1P2HOR
CP_LAYOUT_1P2HOR_UP
19-27
