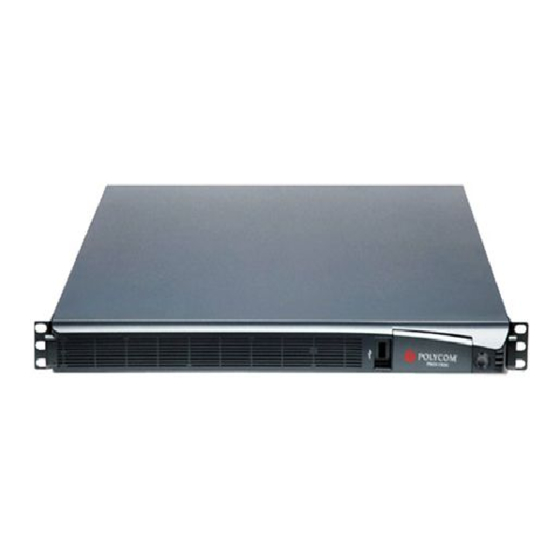

RMX
& Configuration Guide
Follow these rules to ensure general safety:
•
Keep the area around the Polycom RMX
of clutter and well ventilated.
•
Decide on a suitable location for the equipment rack that will hold
the RMX, ensuring that it is near a grounded power outlet.
•
Ensure that the leveling jacks on the bottom of the rack are fully
extended to the floor with the full weight of the rack resting on
them. Always make sure the rack is stable before extending a
component from the rack.
•
In a single rack installation, attach stabilizers to the rack. In
multiple rack installations, the racks should be coupled together.
•
Use a regulating uninterruptable power supply (UPS) to protect the
RMX from power surges and voltage spikes, and to keep it
operating in the event of a power failure.
•
Allow the power supply unit to cool before touching it.
•
Always keep the rack's trays and board's closed when not
servicing, to maintain proper cooling.
Obtain the following information from your network administrator:
•
IP addresses, Subnet Mask and Default Gateway IP address
(optional) for the RMX control unit and RMX Shelf Management.
•
IP addresses for the RMX Signaling Host and Media cards.
•
Gatekeeper IP address.
•
SIP server IP address, if applicable.
1500 Quick Installation
General Safety Precautions
Preparations
®
1500 unit clean and free
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RMX 1500 and is the answer not in the manual?

Questions and answers

Related Manuals for Polycom RMX 1500

Summary of Contents for Polycom RMX 1500

  • Page 1 General Safety Precautions Follow these rules to ensure general safety: ® • Keep the area around the Polycom RMX 1500 unit clean and free of clutter and well ventilated. • Decide on a suitable location for the equipment rack that will hold the RMX, ensuring that it is near a grounded power outlet.

  • Page 2: Unpacking The Rmx

    Open the top cover of the RMX 1500 packing case and make sure that the Installation Accessories kit contains the power cables and a USB Key and that Rack Installation Accessories kit contains the accessories for installing the RMX in 19”...
  • Page 3 Insert the USB key provided with your system into the PC. The Polycom Documentation window opens. In Windows XP: The Polycom Documentation option is automatically selected. Click OK. In Windows 7: Select Open Folder to view files using Windows Explorer.
  • Page 4 — Place the RMX 1500 on a flat, secure and clean surface. Connect the following cables to the rear panel of the RMX: •...

  • Page 5: Connecting To The Mcu

    Product Registration and Activation Key Retrieval Before starting the initial configuration process, register the RMX at the Polycom Resource Center website and download the product activation key file to the computer you will use for the configuration: Using a Web browser, connect to http://portal.polycom.com...

  • Page 6: Initial System Configuration

    OK. A message indicating that the Product Activation Key was loaded successfully appears. If you do not have an Activation Key, click the Polycom Resource Center button to access the Service & Support page of the Polycom Support website.
  • Page 7 Field Description Signaling Host Enter the IP address of the Central Signaling host. This is IP Address the address used by endpoints for dialing in to the MCU. Media Card 1 Enter the IP address of the media card (MPMx) as IP Address provided by the network administrator.
  • Page 8 Field Description Register Host Select this option to automatically register the MCU Names Signaling Host and Shelf Management with the DNS Automatically to server. DNS Server Local Domain Enter the name of the domain where the MCU is Name installed. Primary DNS The static IP addresses of the primary DNS server.
  • Page 9 Field Description Aliases Alias The alias by which the RMX’s Control Unit is identified within the network. Up to five aliases can be defined for each RMX. Note: When a gatekeeper is specified, at least one prefix or alias must be entered in the table. Type Select the type that defines the format in which the card alias is sent to the gatekeeper.
  • Page 10 Field Description Transport Type Select the protocol that is used for signaling between the MCU and the SIP Server or the endpoints according to the protocol supported by the SIP Server: UDP – Select this option to use UDP for signaling. TCP –...
  • Page 11 The Fast Configuration Wizard’s ISDN/PSTN configuration sequence begins with the ISDN/PSTN dialog box. 17 Define the following parameters: Field Description Network Service Specify the service provider’s (carrier) name or any Name other name you choose, using up to 20 characters. The Network Service Name identifies the ISDN/ PSTN Service to the system.
  • Page 12 19 In the PRI Settings dialog box, define the following parameters: Field Description Default Num Type Select the Default Num Type from the list. The Num Type defines how the system handles the dialing digits. For example, if you type eight dialing digits, the Num Type defines whether this number is national or international.
  • Page 13 21 In the Span Definition dialog box, define the following parameters: Field Description Framing Select the Framing format used by the carrier for the network interface from the list. • For T1 spans, default is SFSF. • For E1 spans, default is FEBE. Side Select the RMX side on the network.
  • Page 14 24 In the Add Phone Number dialog box, define the first and the last numbers in the phone number range. • A range must include at least two dial-in numbers. • A range cannot exceed 1000 numbers. 25 Click OK. The new range is added to the Dial-in Phone Numbers table.
  • Page 15 32 Set the RMX time using one of the three available options: setting the RMX time manually, clicking the Retrieve Client Time button, or using the NTP Servers options. Field Description GMT Date The date at Greenwich, UK. Local Time The RMX’s local time settings, are calculated from the GMT Time and the GMT Offset.
  • Page 16 ID Length (User) that the user can enter when conferences manually assigning a Numeric ID to 99. to a conference. Range: 2-16 (Default: 8) MCU Display Name The MCU name that appears at the endpoints. Default: Polycom RMX 1500.
  • Page 17 These flags can be modified later, if required. For more information, see the RMX 1500/2000/4000 Administrator’s Guide, "System Configuration Flags”. 37 Click Save & Close. The RMX confirms successful configuration.

  • Page 18: Selecting The Rmx Web Client Languages

    Four Meeting Rooms whose IDs are 1001, 1002, 1003 and 1004. The default conferencing entities are set to line rate of 384 kbps, Auto Layout, Polycom Skin and have a default duration of one hour. The default Entry Queue (EQ) is set to Ad Hoc conferencing which...
  • Page 19 To start ongoing conferences and monitor their status see the RMX 1500/2000/4000 Getting Started Guide, “Basic Operation”. Connecting to a Conference Directly or via Entry Queue The RMX is shipped with pre-configured default conferencing entities that can be used to dial in and start conferences. Default (Transit) Entry Queue ID: 1000, default Meeting Room IDs: 1001, 1002, 1003, and 1004.

  • Page 20: Conference Control Using Dtmf Codes

    Conference Control Using DTMF Codes Operation DTMF String Individual Help Conference Help Mute My Line Unmute My Line Increase Broadcast Volume Decrease Broadcast Volume Increase Listening Volume Decrease Listening Volume Play Help Menu Start Click&View to modify personal layout Change To Chairperson Show Number of Participants Invite a participant to the conference Disconnect the last invited participant...
