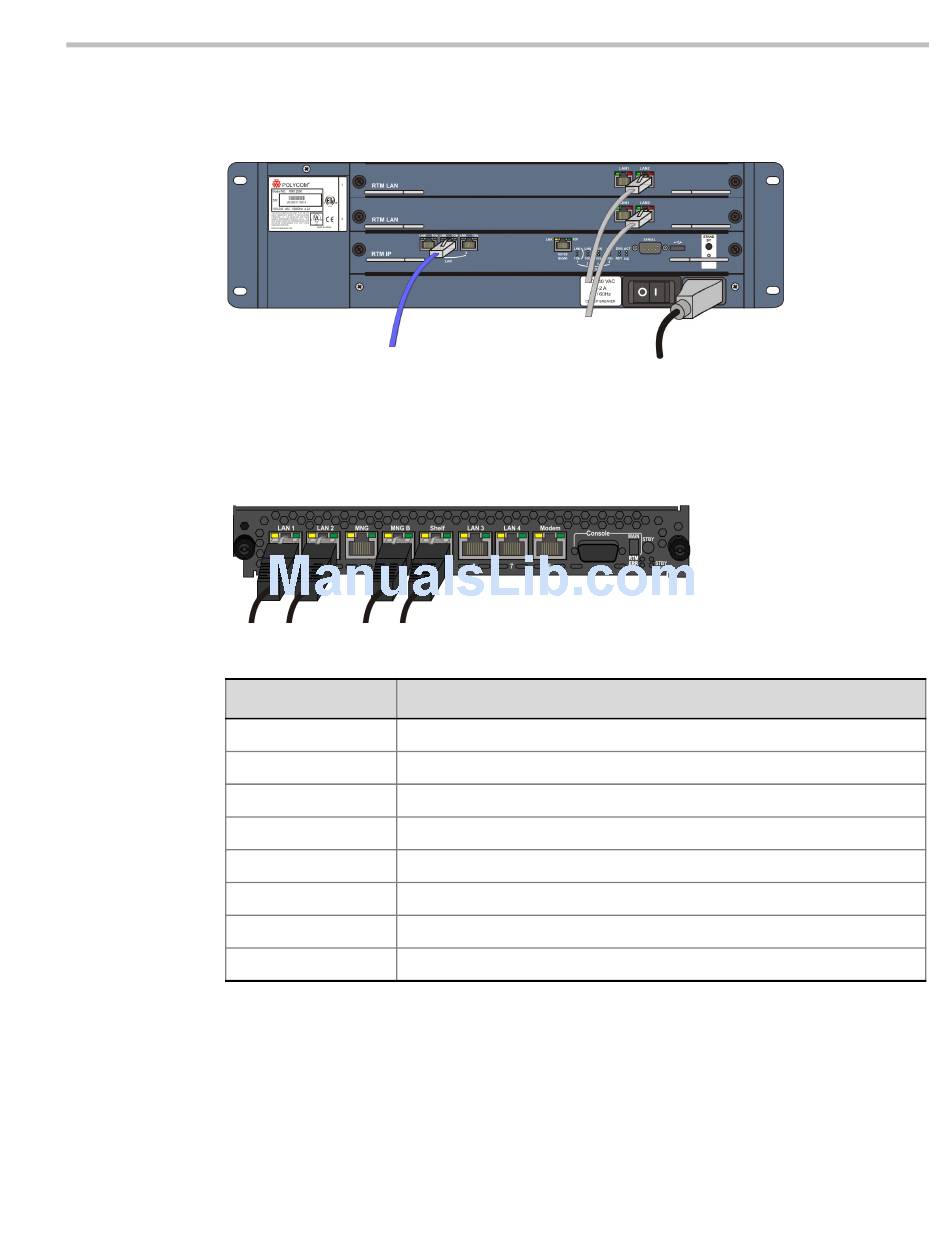

Figure 14-5 shows the cables connected to the RMX 2000 rear panel, when two RTM LAN
cards are installed providing IP connectivity. In this case, only one IP network Service can
be associated with each RTM LAN card.
Figure

RMX 1500 Multiple Services Configuration

Connecting the cables to the RTM IP 1500:
The following cables are connected to the RTM IP on the rear panel of the RMX 1500:
Table 14-31
RTM IP Port
LAN 1
LAN 2
MNG
MNG B
Shelf
LAN 3
LAN 4
Modem

RMX Configuration

Once the network cables are connected to the RMX unit, you can modify the default IP
Network Service and add additional Network Services.
Polycom, Inc.
14-5RMX 2000 Rear Panel with RTM LAN Cables
LAN Connections to the RTM IP
Description
Media and signaling - additional (second) Network Service
Media and signaling - existing (first) Network Service
–
Management
Shelf Management
–
–
Modem
