Resource Report Display in Flexible Resource Capacity Mode™

The Resource Report details the current availability and usage of the system resources
displaying the number of free and occupied audio and video ports. A Resources Graph is
displayed in addition to the Resources table.
Example: An RMX 2000 in MPM+ Card Configuration Mode and Flexible Resource Capacity
Mode has:
•
•
•
•
•

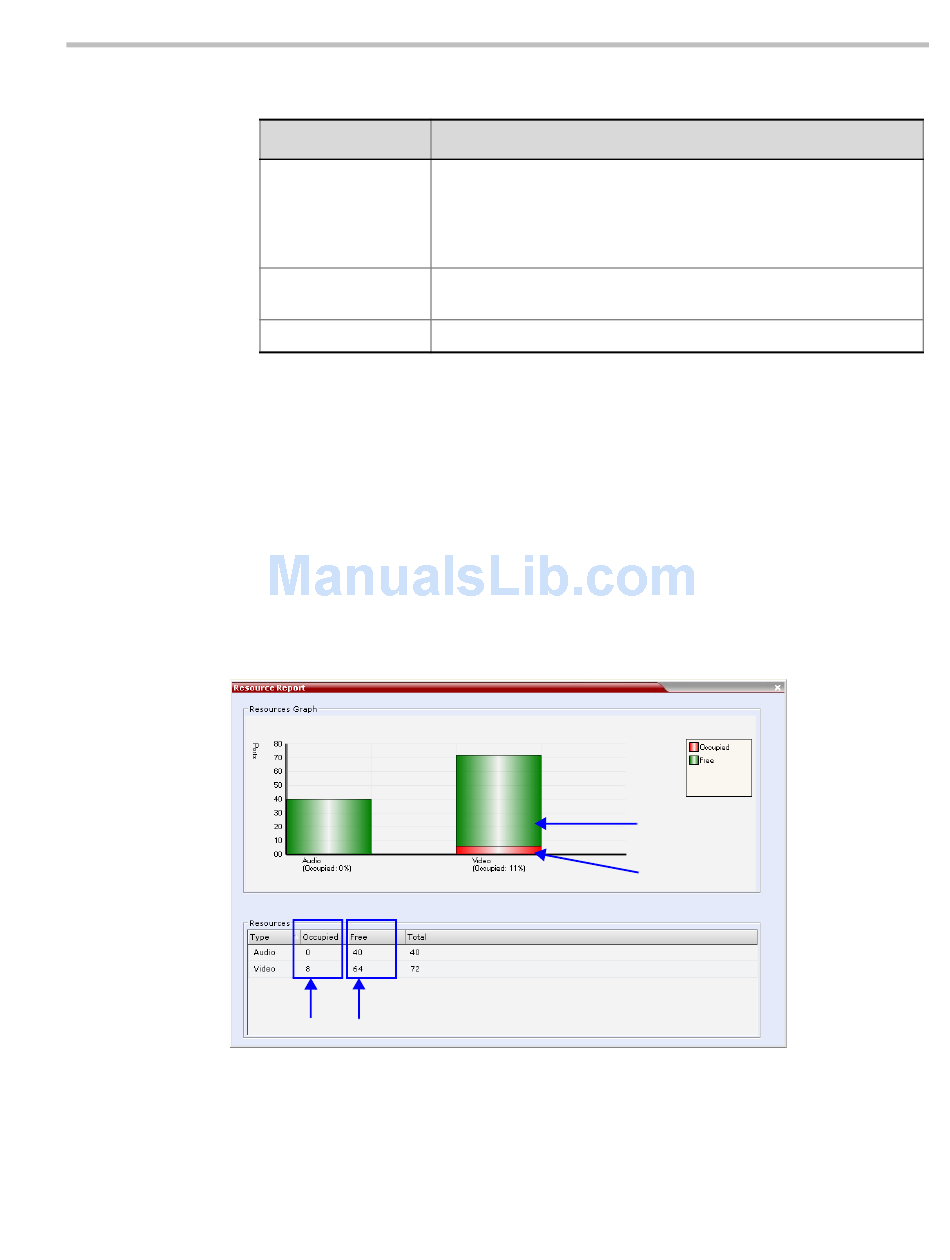

The Resource Report is displayed as follows:
In Flexible Resource Capacity Mode, resource usage is displayed for Audio and CIF video
resources only. They are displayed as percentages of the total resource type.
Polycom, Inc.
Table 19-15 Resource Report Fields Parameters (Continued)
Column
Total
Occupied
Free
80 licensed CIF resources.
8 of its 80 CIF resources allocated as Audio = 40 Audio resources (8x5).
All 40 Audio resources free (green).
The remaining 72 CIF resources allocated as Video resources.
8 of the 72 CIF resources are occupied (red) while the remaining 64 are free.
Actual Number of Occupied and Free Audio and Video Resources
Description
The Total column displays the total number of resources of that type
as configured in the system (Occupied and Free). This number
reflects the current audio/video port configuration. Any changes to
the resource allocation will affect the resource usage displayed in the
Resource Report.
The number of RMX resources that are used by connected
participants or reserved for defined participants.
The number of RMX resources available for connecting endpoints.
