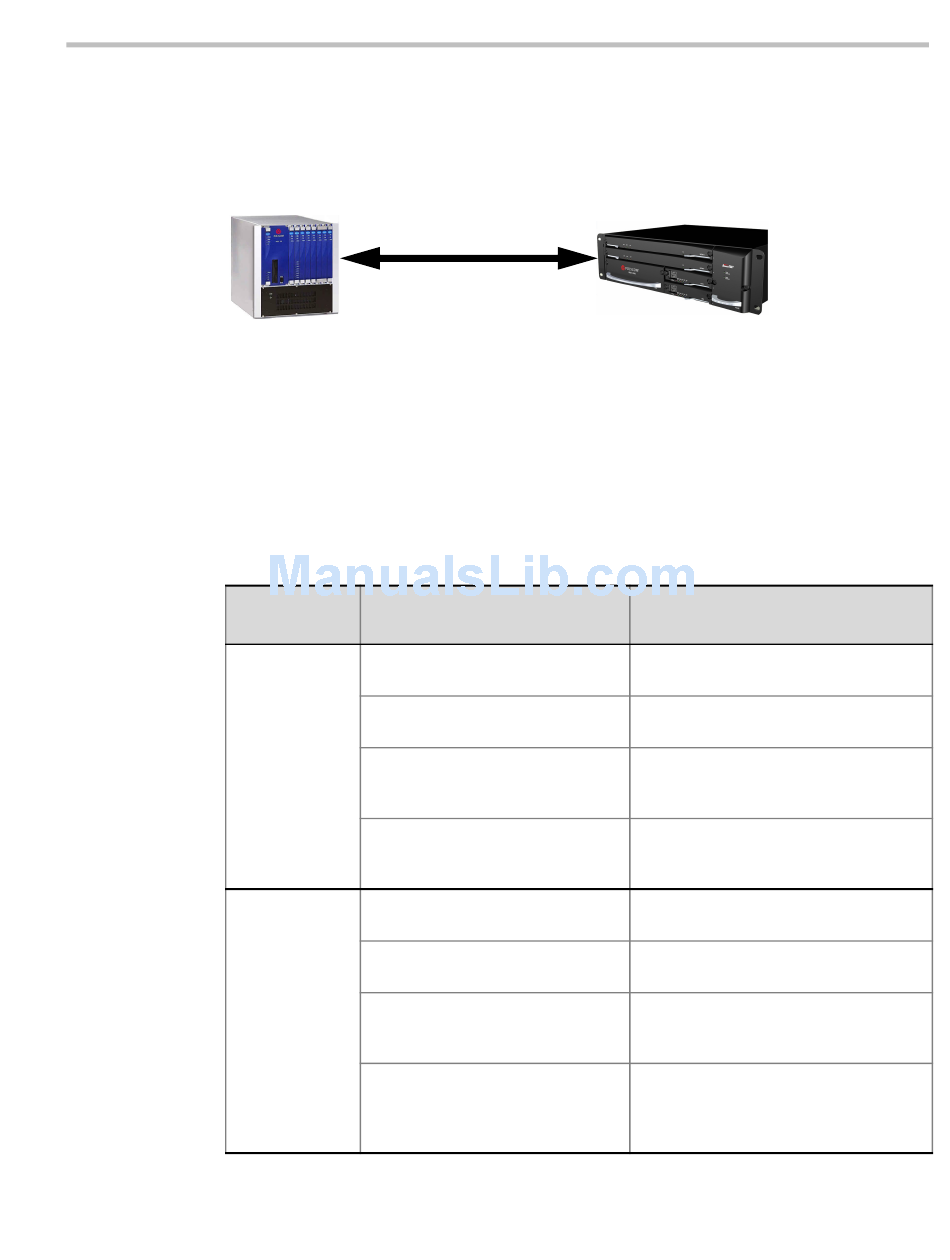

MGC to RMX Cascading

Level 1 (Master)
MGC running versions other than 9.0.4 is always on level 1 and must be set as the Master
MCU. If the cascading topology includes additional MGCs as well as RMXs it is
recommended to define Video Switching conferences for all the cascading conferences in the
topology.
If MGC is running version 9.0.4, and RMX is running version 7.0.2 and higher, the MGC can
be set as Master on level 1 and MGC as Slave on level 2
Depending on the dialing direction, the following procedures must be performed:
Table 3-7
Dialing
Direction
MGC to RMX
RMX to MGC
Polycom, Inc.
— Master, if the participant is defined in a conference running on the Master MCU.
Click OK.
Set up Procedures according to the Dialing Direction
Set the appropriate flags (done once
only).
Define the conference setting and
its line rate to be the same as the
one set on the RMX.
Define the dial-out participant
(Cascaded Link) to the conference
running on the RMX.
Set the appropriate flags (done once
only)
Define the cascade-enabled Entry
Queue.
Define the conference setting and
its line rate to be the same as the
one set on the RMX.
Level 2 (Slave to Level 1)
MGC Level 1
Chapter 3-Cascading Conferences
RMX 1500/2000/4000
Level 2
Set the appropriate flags (done once
only).
Define the cascade-enabled Entry
Queue, setting it as Slave.
Define the conference setting and its line
rate to be the same as the one set on the
MGC.
Set the appropriate flags (done once
only)
Define the conference setting and its line
rate to be the same as the one set on the
MGC.
Define the dial-out participant (Cascaded
Link) to the conference running on the
MGC, setting the participant Cascade
parameter to Slave.
3-35
